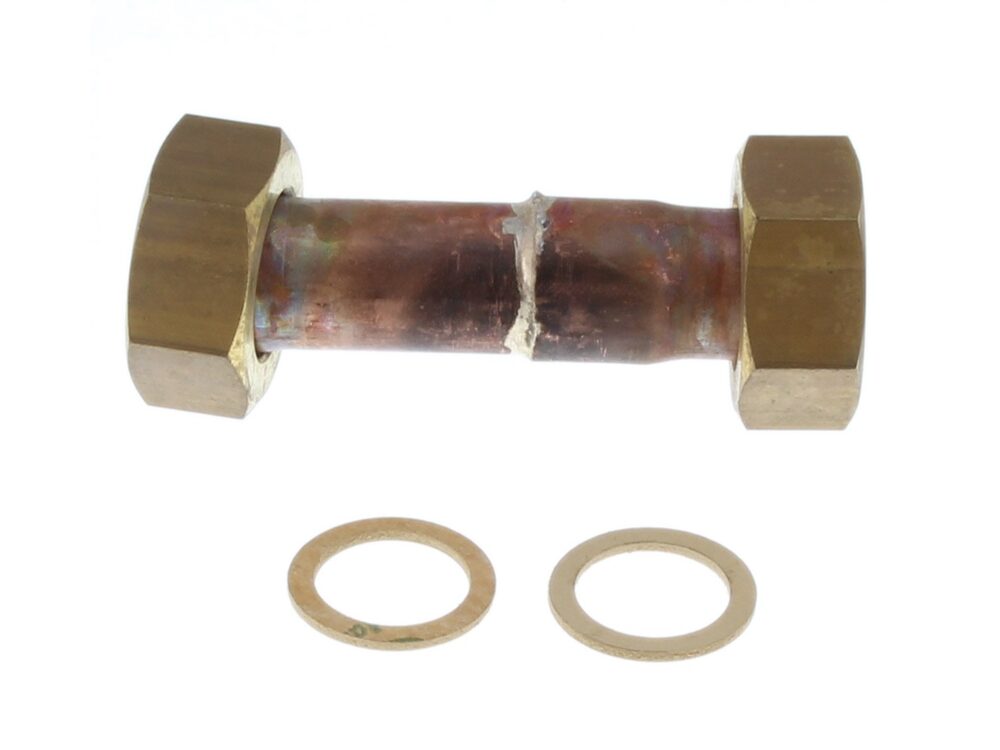

Worcester Bosch Pipe Flow Assembly 87161205360
Pipe flow assembly with pipe and heat exchanger for Worcester Bosch 230 RSF and 240 series gas boilers.
At a glance
- Appliance family: Worcester 230 RSF and 240 series
- Also known as 1016105
- Isolate the water and gas supplies before fitting, and work in line with Gas Safe requirements.
£16.60
£13.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161205360 is a pipe flow assembly supplied with pipe and heat exchanger. It forms part of the water circuit on Worcester 230 RSF and 240 series gas boilers, directing flow through the heat exchanger. This assembly is a serviceable component within the boiler's pipework.
Signs this part needs replacing
- Water leaking from the pipework or heat exchanger connections
- Visible corrosion, scale or staining on the pipe assembly
- Loss of system pressure that cannot be traced to other components
- Reduced heating or hot water performance
- Kettling or unusual noises from the heat exchanger
Before you order
- Confirm your boiler model and GC number against the fit list above.
- Check the part number on the existing component matches 87161205360.
- Verify whether your boiler requires the assembly with heat exchanger.
- Isolate the water and gas supplies before fitting, and work in line with Gas Safe requirements.
Compliance
| GC number | E02-091 |
|---|---|
| Barcode / EAN | 4010009762867 |
| Alternative numbers | 1016105 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 230 RSF NG | 47-311-14 | 47-311-14 | — | — |
| WORCESTER 240 BF LPG | — | — | — | |
| WORCESTER 240 BF NG | 47-311-10 | 47-311-10 | — | — |
| WORCESTER 240 OF LPG | — | — | — | |
| WORCESTER 240 OF NG | 47-311-09 | 47-311-09 | — | — |
| WORCESTER 240 RSF LPG | — | — | — | |
| WORCESTER 240 RSF NG | 47-311-12 | 47-311-12 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
