Worcester Bosch
Worcester Bosch Printed Circuit Board Non Greenstar Ri ErP+ 8716119385
At a glance
- Part type: Printed circuit board (PCB) with back panel
- Also known as 2242165, N8810-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£100.94
£84.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

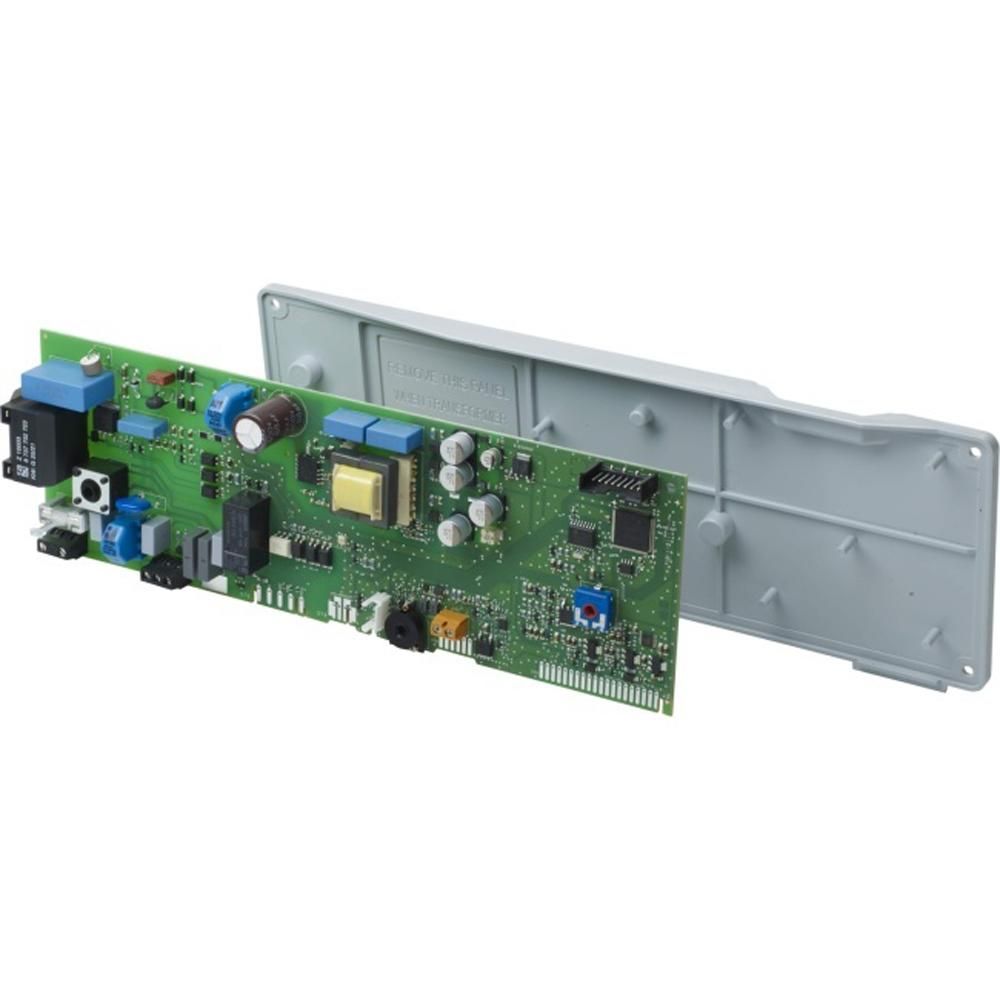

The Worcester Bosch 8716119385 is a printed circuit board (PCB) supplied as an assembly with its back panel. It is the control board for Worcester Bosch Greenstar Ri and related appliances manufactured up to August 2018, and it carries the electronics that sequence ignition, fan and pump operation, regulate flow temperature and monitor the appliance for faults. Because the board is mounted on its own back panel, the two are replaced together as a single unit.
Signs this part needs replacing
- The appliance fails to fire, or repeatedly locks out with no obvious ignition or gas supply fault.
- The fascia controls or display are dead, unresponsive or behave erratically.
- The fan, pump or ignition sequence runs out of order, or the appliance cycles without reaching temperature.
- Fault codes return immediately after a reset, or change unpredictably between resets.
- Heat damage, scorching, corrosion or water staining is visible on the board or its connectors.
Before you order
- Check the appliance GC number and serial number against the compatibility list, as this board is model-specific.
- Compare the number printed on the existing board with 8716119385 and the alternative numbers listed below before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716119385 |
|---|---|
| GC number | 724-667 |
| Barcode / EAN | 4057749848284 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB8716119385, 8-718-687-164-0, 87161095590, 87161138700, 87483008550, 2242165, N8810-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 15RI CONVENTIONAL LPG | 41-311-76 | 41-311-76 | — | — |
| WORCESTER GREENSTAR 15RI CONVENTIONAL NG | 41-311-75 | 41-311-75 | — | — |
| WORCESTER GREENSTAR 15Ri ErP LPG | 41-406-44 | 41-406-44 | — | — |
| WORCESTER GREENSTAR 15Ri ErP NG | 41-406-43 | 41-406-43 | — | — |
| WORCESTER GREENSTAR 18RI CONVENTIONAL LPG | 41-311-78 | 41-311-78 | — | — |
| WORCESTER GREENSTAR 18RI CONVENTIONAL NG | 41-311-77 | 41-311-77 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualNo technical questions yet for this part.
