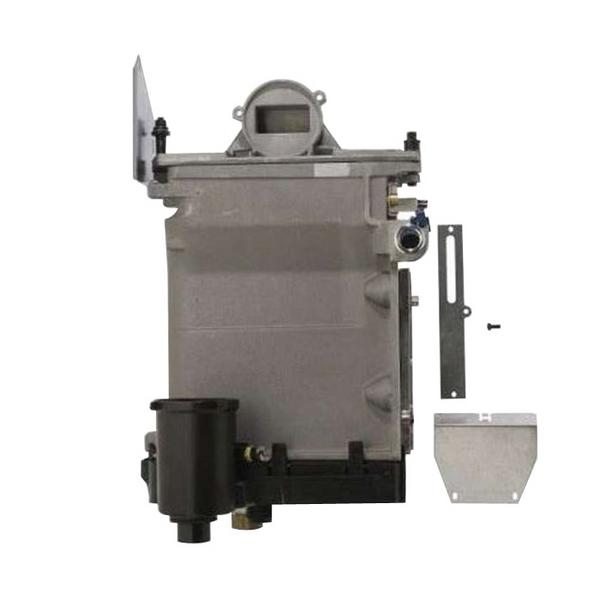

Worcester Bosch Heat Exchanger Basic Block Fs/Hf 8716119317
Worcester Bosch heat exchanger basic block (8716119317) for Greenstar combi and condensing models, including CC1, HE and ICC2 variants.
At a glance
- Part type: Heat exchanger
- Also known as 2242147
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£948.04
£790.03 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The heat exchanger basic block is a Worcester Bosch component that transfers heat from the combustion side of the appliance into the domestic water and heating circuits. It sits at the core of the boiler's hydraulic and thermal operation, so its condition directly affects how efficiently the unit heats water and radiators. This version is supplied as a basic block assembly for Fs/Hf variants within the Greenstar range.
Signs this part needs replacing
- Domestic hot water runs lukewarm or fluctuates while the boiler is firing
- Kettling, banging or gurgling noises from the heat exchanger during heating
- Visible weeping, staining or scale deposits around the block or its connections
- Radiators take noticeably longer to reach temperature than they used to
- Repeated lockouts or overheat faults traced to poor heat transfer
Before you order
- Check the GC number and appliance serial plate against the compatibility list before ordering, as several Greenstar variants use different blocks.
- Compare the previous part numbers listed below with the number on the component being removed.
- Confirm whether a gasket or seal kit is needed for the connections on your model.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat Exchangers |
|---|
Compliance
| Manufacturer part number (MPN) | 8716119317 |
|---|---|
| GC number | 729-267 |
| Barcode / EAN | 4057749689719 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8-737-701-790-0, 8-737-705-207-0, 87154066150, 2242147 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS GREENSTAR CC1-FSN-GB NG 29KW COMBI | 47-108-05 | 47-108-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR GREENSTAR HE PLUS-FSN- GB28KW | 47-311-56 | 47-311-56 | — | — |
| WORCESTER BRITISH GAS GREENSTAR GREENSTAR HE-FSN-GB NG 27KW | 47-311-55 | 47-311-55 | — | — |
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM | 41-108-09 | 41-108-09 | — | — |
| WORCESTER BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM | 41-108-10 | 41-108-10 | — | — |
| WORCESTER BRITISH GAS GREENSTAR RD428 | 41-108-07 | 41-108-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR RD537I | 47-108-11 | 47-108-11 | — | — |
| WORCESTER BRITISH GAS RD430I | 41-108-06 | 41-108-06 | — | — |
| WORCESTER BRITISH GAS RD532 | 47-108-13 | 47-108-13 | — | — |
| WORCESTER BRITISH GAS RD532I | 47-108-10 | 47-108-10 | — | — |
Showing 10 of 75 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 30KW COND COM (GC 41-108-09), BRITISH GAS GREENSTAR ICC2-FSN-GB NAT 37KW COND COM (GC 41-108-10)
manualmanualWORCESTER appliance manual — CS1 RSF 28KW NG (GC 41-108-02)
manualmanualWORCESTER appliance manual — GREENSTAR 25 HE (GC 47-311-73), GREENSTAR 30 HE COMBI (GC 47-311-74)
manualmanualWORCESTER appliance manual — GREENSTAR 28 HE SYSTEM (GC 41-311-58)
manualmanualWORCESTER appliance manual — GREENSTAR 29 HE CONVENTIONAL (JAN 2003) (GC 41-311-59), GREENSTAR 29 HE CONVENTIONAL (JUN 2002) (GC 41-311-56)
manualmanualWORCESTER appliance manual — GREENSTAR 30 HE PLUS COMBI (GC 47-311-75), GREENSTAR 35 HE PLUS COMBI (GC 47-311-76), GREENSTAR HE PLUS-FSN-GB35KW (GC 47-311-57)
manualmanualWORCESTER appliance manual — GREENSTAR FS30 CDI REGULAR (GC 41-406-62), GREENSTAR FS30 CDI REGULAR LPG (GC 41-406-63), GREENSTAR FS42 CDI REGULAR (GC 41-406-64), GREENSTAR FS42 CDI REGULAR LPG (GC 41-406-65)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440 (GC 47-311-82)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDI LPG (GC 47-406-26), GREENSTAR HIGHFLOW 440CDI NG (GC 47-406-24), GREENSTAR HIGHFLOW 550CDI LPG (GC 47-406-25), GREENSTAR HIGHFLOW 550CDI NG (GC 47-406-27)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) (GC 47-406-86), GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) (GC 47-406-85), GREENSTAR HIGHFLOW 550CDi ErP LPG (7738100592) (GC 47-406-88), GREENSTAR HIGHFLOW 550CDi ErP NG (7738100591) (GC 47-406-87)
manualmanualWORCESTER appliance manual — GREENSTAR R25HE COMBI (GC 47-311-77), GREENSTAR R30HE COMBI (GC 47-311-78)
manualmanualWORCESTER appliance manual — GREENSTAR R28HE SYSTEM (GC 41-311-62)
manualmanualWORCESTER appliance manual — GREENSTAR R29HE CONVENTIONAL (GC 41-311-60), GREENSTAR R40HE CONVENTIONAL (GC 41-311-61)
manualmanualWORCESTER appliance manual — GREENSTAR R30HE PLUS COMBI (GC 47-311-79), GREENSTAR R35HE PLUS COMBI (GC 47-311-80), GREENSTAR R40HE PLUS COMBI (GC 47-311-81)
manualmanualWORCESTER appliance manual — ICS1 RSF 28KW NG (GC 41-108-04)
manualNo technical questions yet for this part.
