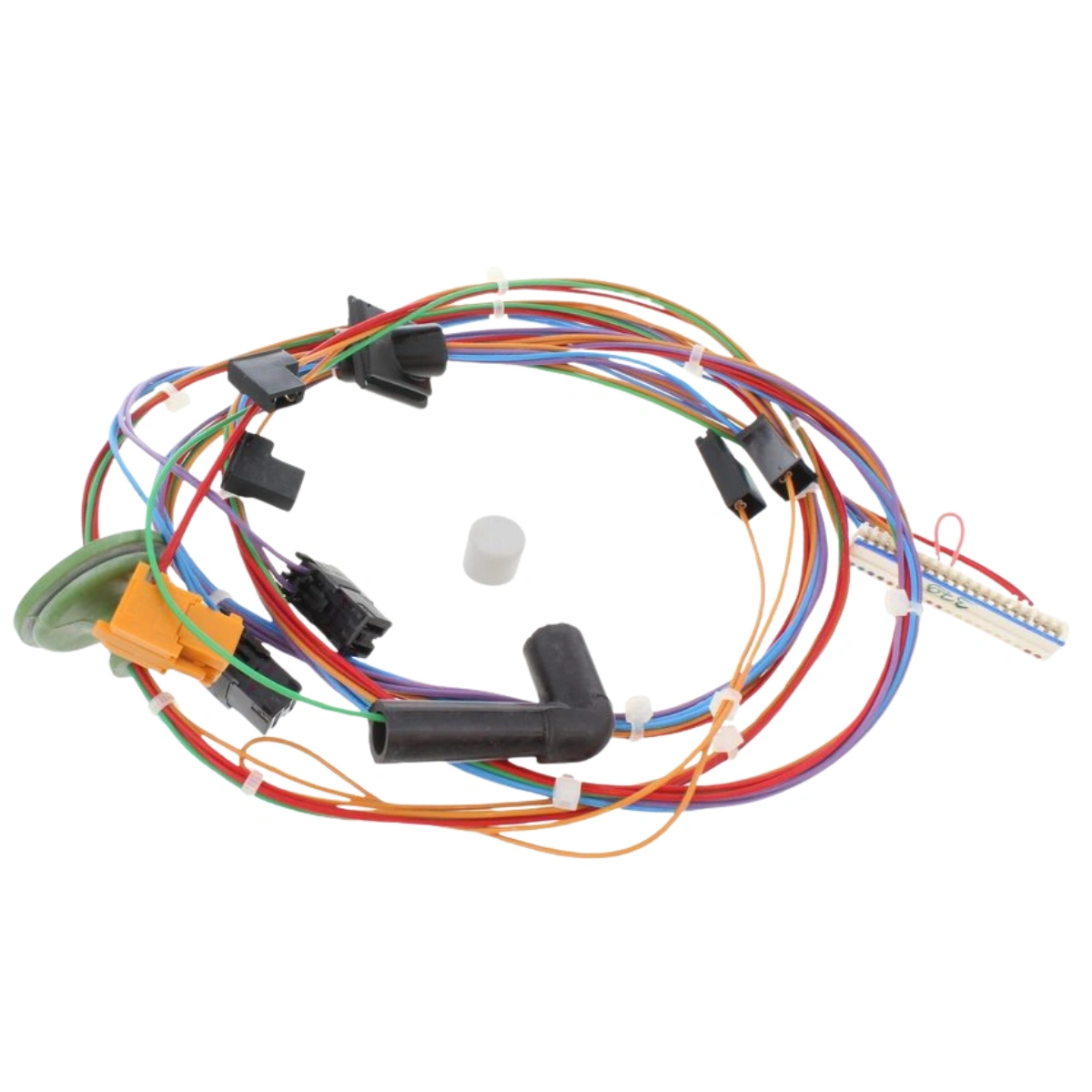

Worcester Bosch Wiring Harness Main SMPS Highflow FS 8716118471
Worcester Bosch main SMPS highflow FS wiring harness, part 8716118471, for Greenstar FS 30CDi and 42CDi ErP regular boilers.
At a glance
- Part type: Cables, leads and wiring harnesses
- Also known as 1031258
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£64.68
£53.90 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is the main SMPS highflow FS wiring harness supplied by Worcester Bosch for its Greenstar FS range of floor-standing regular gas boilers. The harness carries the low-voltage supply and signal connections between the switched-mode power supply board and the rest of the appliance's electrical assembly, so the control board, fan and ignition sequence receive the correct voltages during a demand for heat. It is a direct replacement item for the original lead fitted at manufacture.
Signs this part needs replacing
- The boiler fails to power up or drops out intermittently with no obvious fault elsewhere.
- Repeated lockouts or error codes traced to the power supply or control circuit.
- Visible damage to the loom: chafed insulation, scorched or discoloured conductors, or a brittle, cracked connector housing.
- Loose or corroded pins at the harness plugs, causing unstable readings or intermittent fan and ignition operation.
- A harness that has been disturbed or stretched during earlier work and no longer sits correctly on its routing clips.
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list, as the FS 30CDi and FS 42CDi regular ErP variants use different GC numbers.
- Confirm the part number on the existing harness or in the manufacturer's parts listing before ordering, and note the earlier numbers listed below.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
Compliance
| Manufacturer part number (MPN) | 8716118471 |
|---|---|
| Barcode / EAN | 4057749560995 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8-718-690-379-0, 1031258 |
Logistics
| Weight | 250 g |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR FS 30CDi ErP REGULAR LPG | 41-406-63 | 41-406-63 | — | — |
| WORCESTER GREENSTAR FS 30CDi ErP REGULAR NG | 41-406-62 | 41-406-62 | — | — |
| WORCESTER GREENSTAR FS 42CDi ErP REGULAR LPG | 41-406-65 | 41-406-65 | — | — |
| WORCESTER GREENSTAR FS 42CDi ErP REGULAR NG | 41-406-64 | 41-406-64 | — | — |
| WORCESTER WORCESTER GREENSTAR FS 30CDi ErP REGULAR LPG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR FS 30CDi ErP REGULAR NG | — | — | — | |
| WORCESTER WORCESTER GREENSTAR FS 42CDi ErP REGULAR LPG 7731600105 | — | — | — | |
| WORCESTER WORCESTER GREENSTAR FS 42CDi ErP REGULAR NG 7731600104 | — | — | — |
