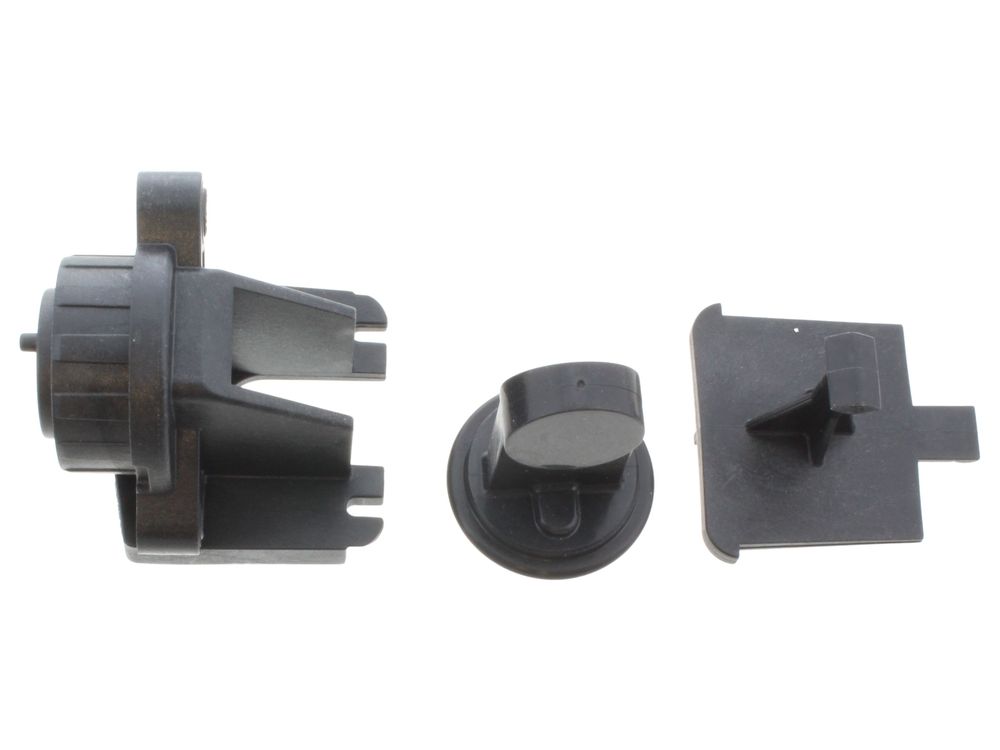

Worcester Bosch Diverter Valve Assembly 8716117405
At a glance
- Part type: Diverter and motorised valves
- Also known as WB8716117405, 1031047
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£63.31
£52.76 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The diverter valve assembly is the hydraulic component inside a Worcester Bosch boiler that switches the flow of heated water between the central heating circuit and the domestic hot water plate heat exchanger. It is manufactured by Worcester Bosch and supplied as a complete assembly, part number 8716117405. It is used across the Greenstar i ErP System range of gas boilers.
Signs this part needs replacing
- Domestic hot water runs cold or only lukewarm while the heating circuit stays hot
- Radiators warm up when only hot water is demanded, or hot water is drawn when only heating is called for
- The valve body sticks or the actuator fails to move the diverter between positions
- Boiler locks out or reports a fault during a hot water draw-off
- Water weeping from the valve body or its seals
Before you order
- Check the GC number and appliance serial plate to confirm the boiler model before ordering
- Compare the part number on the existing valve with 8716117405, and cross-check the alternative numbers 1031047 and WB8716117405
- Inspect the seals and O-rings on the valve body and replace them if they are hardened or damaged
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter & Motorised Valves |
|---|
Compliance
| Manufacturer part number (MPN) | 8716117405 |
|---|---|
| GC number | J23-569 |
| Barcode / EAN | 4054925622973 |
| Commodity code | 8481 80 99 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB8716117405, 1031047 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM LPG | 41-406-30 | 41-406-30 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM NG | 41-406-29 | 41-406-29 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM LPG | 41-406-32 | 41-406-32 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM NG | 41-406-31 | 41-406-31 | — | — |
Showing 10 of 33 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
