Worcester Bosch

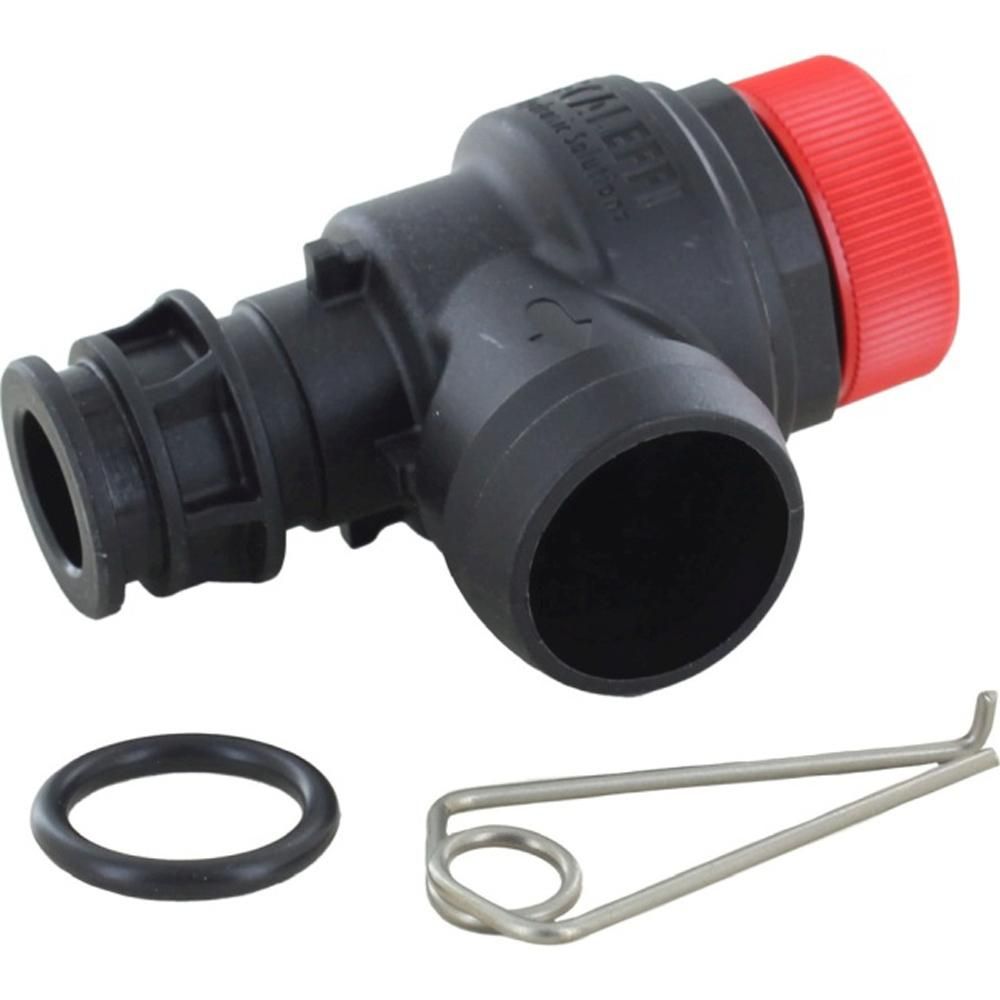

Worcester Bosch Pressure Relief Valve Plastic 8716117369
Worcester Bosch 8716117369 plastic pressure relief valve, a spare for Greenstar combi boilers. Supplied singly.
At a glance
- Part type: Pressure relief valve
- Also known as 2244495
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£35.58
£29.65 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8716117369 is a plastic pressure relief valve used across the manufacturer's Greenstar gas boiler range. It lifts to discharge excess pressure from the heating circuit or hot water side, protecting the appliance and connected system components from over-pressurisation. It is supplied as a single spare part.
Signs this part needs replacing
- Water continually discharging from the pressure relief discharge pipe
- System pressure dropping and needing regular topping up
- Boiler locking out or showing a low pressure fault
- Scale, debris or visible damage around the valve seat
- Valve failing to reseat after it has lifted
Before you order
- Check the GC number and serial number on the appliance data badge against the compatibility list.
- Confirm the alternative part number 2244495 matches the part being replaced.
- Check whether a sealing washer or gasket is needed for the connection.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Material | Plastic |
Compliance
| Manufacturer part number (MPN) | 8716117369 |
|---|---|
| Barcode / EAN | 8716117369 |
| Commodity code | 8481 40 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2244495 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG | 47-800-18 | 47-800-18 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG | 47-800-17 | 47-800-17 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG | 47-800-16 | 47-800-16 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG | 47-800-15 | 47-800-15 | — | — |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG | — | — | — | |
| WORCESTER GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG | 47-800-14 | 47-800-14 | — | — |
Showing 10 of 156 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 8000 LIFE COMBI GR8300iW 30 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 30 C NG (GC 47-800-18), GREENSTAR 8000 LIFE COMBI GR8300iW 35 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 35 C NG (GC 47-800-17), GREENSTAR 8000 LIFE COMBI GR8300iW 40 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 40 C NG (GC 47-800-16), GREENSTAR 8000 LIFE COMBI GR8300iW 45 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 45 C NG (GC 47-800-15), GREENSTAR 8000 LIFE COMBI GR8300iW 50 C LPG, GREENSTAR 8000 LIFE COMBI GR8300iW 50 C NG (GC 47-800-14), GREENSTAR LIFE GR8300iW 30 C LPG, GREENSTAR LIFE GR8300iW 30 C NG (GC 47-800-18), GREENSTAR LIFE GR8300iW 35 C LPG, GREENSTAR LIFE GR8300iW 35 C NG (GC 47-800-17), GREENSTAR LIFE GR8300iW 40 C LPG, GREENSTAR LIFE GR8300iW 40 C NG (GC 47-800-16), GREENSTAR LIFE GR8300iW 45 C LPG, GREENSTAR LIFE GR8300iW 45 C NG (GC 47-800-15), GREENSTAR LIFE GR8300iW 50 C LPG, GREENSTAR LIFE GR8300iW 50 C NG (GC 47-800-14)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 30 R NG (GC 41-406-98), GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 35 R NG (GC 41-406-97), GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 40 R NG (GC 41-406-96), GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 45 R NG (GC 41-406-95), GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R LPG, GREENSTAR 8000 LIFE REGULAR GR8300iW 50 R NG (GC 41-406-94), GREENSTAR LIFE GR8300iW 30 R LPG, GREENSTAR LIFE GR8300iW 30 R NG (GC 41-406-98), GREENSTAR LIFE GR8300iW 35 R LPG, GREENSTAR LIFE GR8300iW 35 R NG (GC 41-406-97), GREENSTAR LIFE GR8300iW 40 R LPG, GREENSTAR LIFE GR8300iW 40 R NG (GC 41-406-96), GREENSTAR LIFE GR8300iW 45 R LPG, GREENSTAR LIFE GR8300iW 45 R NG (GC 41-406-95), GREENSTAR LIFE GR8300iW 50 R LPG, GREENSTAR LIFE GR8300iW 50 R NG (GC 41-406-94)
manualmanualWORCESTER appliance manual — GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 30 S NG (GC 41-406-91), GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S LPG, GREENSTAR 8000 LIFE SYSTEM GR8300iW 35 S NG (GC 41-406-90), GREENSTAR LIFE GR8300iW 30 S LPG, GREENSTAR LIFE GR8300iW 30 S NG (GC 41-406-91), GREENSTAR LIFE GR8300iW 35 S LPG, GREENSTAR LIFE GR8300iW 35 S NG (GC 41-406-90)
manualmanualWORCESTER appliance manual — GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 C NG (GC 47-800-03), GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 C NG (GC 47-800-02), GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 C NG (GC 47-800-01), GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 C NG (GC 47-406-99), GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 C NG (GC 47-406-98), GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB LPG, GREENSTAR 8000+ STYLE COMBI GR8700iW 50 CB NG (GC 47-406-93), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 S NG (GC 41-406-87), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 S NG (GC 41-406-86), GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB LPG, GREENSTAR 8000+ STYLE SYSTEM GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 30 C LPG, GREENSTAR STYLE GR8700iW 30 C NG (GC 47-800-03), GREENSTAR STYLE GR8700iW 30 CB LPG, GREENSTAR STYLE GR8700iW 30 CB NG (GC 47-406-97), GREENSTAR STYLE GR8700iW 30 S LPG, GREENSTAR STYLE GR8700iW 30 S NG (GC 41-406-87), GREENSTAR STYLE GR8700iW 30 SB LPG, GREENSTAR STYLE GR8700iW 30 SB NG (GC 41-406-83), GREENSTAR STYLE GR8700iW 35 C LPG, GREENSTAR STYLE GR8700iW 35 C NG (GC 47-800-02), GREENSTAR STYLE GR8700iW 35 CB LPG, GREENSTAR STYLE GR8700iW 35 CB NG (GC 47-406-96), GREENSTAR STYLE GR8700iW 35 S LPG, GREENSTAR STYLE GR8700iW 35 S NG (GC 41-406-86), GREENSTAR STYLE GR8700iW 35 SB LPG, GREENSTAR STYLE GR8700iW 35 SB NG (GC 41-406-82), GREENSTAR STYLE GR8700iW 40 C LPG, GREENSTAR STYLE GR8700iW 40 C NG (GC 47-800-01), GREENSTAR STYLE GR8700iW 40 CB LPG, GREENSTAR STYLE GR8700iW 40 CB NG (GC 47-406-95), GREENSTAR STYLE GR8700iW 45 C LPG, GREENSTAR STYLE GR8700iW 45 C NG (GC 47-406-99), GREENSTAR STYLE GR8700iW 45 CB LPG, GREENSTAR STYLE GR8700iW 45 CB NG (GC 47-406-94), GREENSTAR STYLE GR8700iW 50 C LPG, GREENSTAR STYLE GR8700iW 50 C NG (GC 47-406-98), GREENSTAR STYLE GR8700iW 50 CB LPG, GREENSTAR STYLE GR8700iW 50 CB NG (GC 47-406-93)
