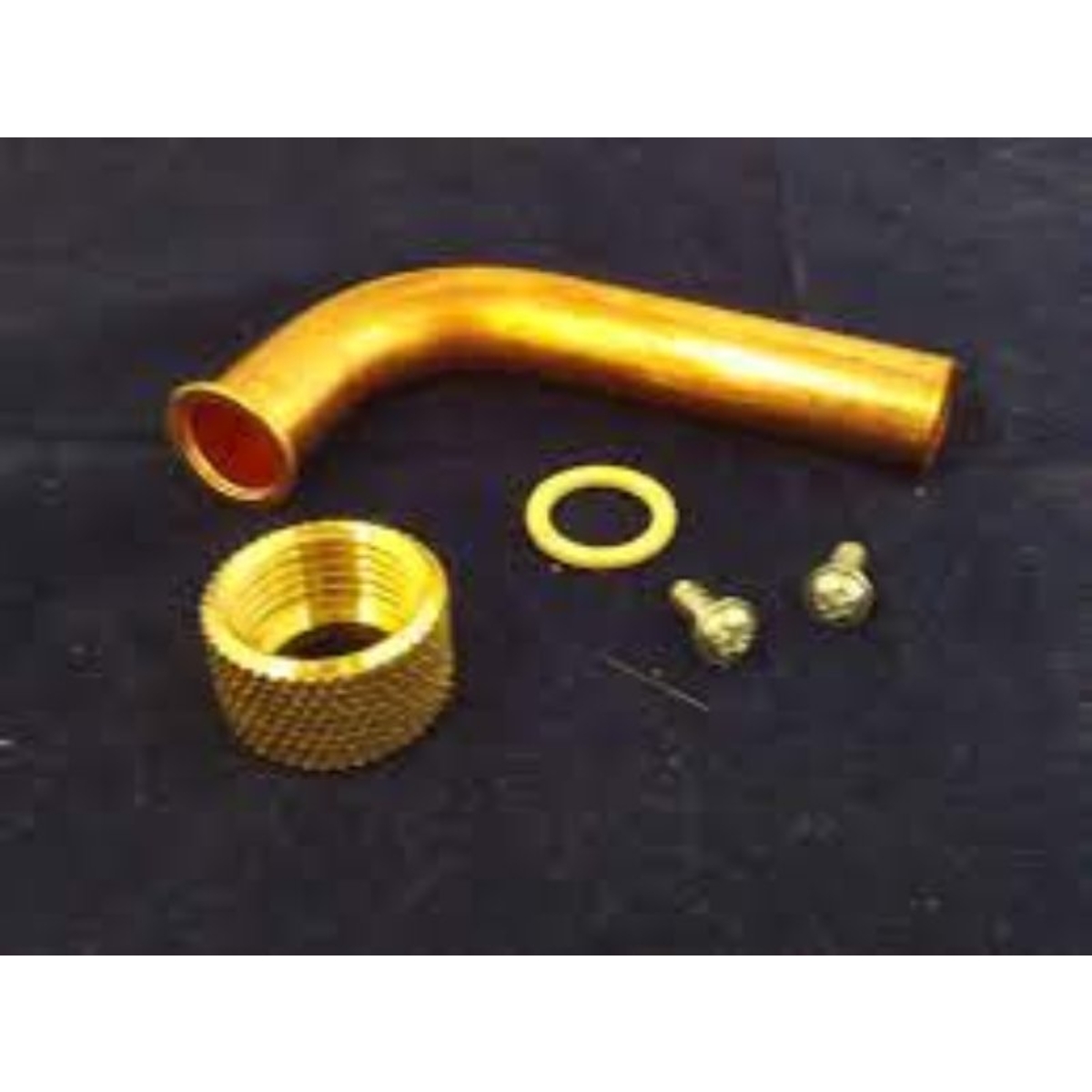

Worcester Bosch Connection Elbow PRV Installer 8716117184
Worcester Bosch PRV installer connection elbow, part 8716117184, for Greenstar ErP Compact and CDi ErP Compact boilers.
At a glance
- Part type: Elbow (PRV installer connection)
- Also known as 1030807
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£11.47
£9.56 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8716117184 is a connection elbow fitted at the pressure relief valve (PRV) on Worcester Bosch Greenstar ErP Compact and CDi ErP Compact appliances. It provides the angled connection point where the installer's pipework meets the PRV outlet, so the discharge pipework can be routed away from the valve. It is a Worcester Bosch spare listed under part type Elbows and is supplied as a single component.
Signs this part needs replacing
- Weeping or dripping at the PRV connection point
- Visible corrosion, verdigris or scale around the elbow
- Discharge pipework failing to seat correctly or the joint working loose
- Water staining on the casing below the valve
- Repeated system pressure loss traced back to the PRV outlet
Before you order
- Check the appliance GC number and model against the compatibility list; the GC number is shown on the boiler data badge.
- Confirm the existing part number and the alternative number 1030807 before ordering.
- Inspect the PRV and its seals at the same time; a replacement washer or seal may be needed to complete the joint.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Elbows |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716117184 |
|---|---|
| GC number | J20-922 |
| Barcode / EAN | 4054925504750 |
| Commodity code | 7412 20 00 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1030807 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 25Si ErP COMPACT LPG | 47-407-74 | 47-407-74 | — | — |
| WORCESTER GREENSTAR 25Si ErP COMPACT NG | 47-406-73 | 47-406-73 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT LPG | 41-406-59 | 41-406-59 | — | — |
| WORCESTER GREENSTAR 27i ErP SYSTEM COMPACT NG | 41-406-58 | 41-406-58 | — | — |
| WORCESTER GREENSTAR 28CDi ErP COMPACT LPG | 47-406-78 | 47-406-78 | — | — |
| WORCESTER GREENSTAR 28CDi ErP COMPACT NG | 47-406-77 | 47-406-77 | — | — |
| WORCESTER GREENSTAR 28Si ErP COMPACT | — | — | — | |
| WORCESTER GREENSTAR 30Si ErP COMPACT LPG | 47-406-76 | 47-406-76 | — | — |
| WORCESTER GREENSTAR 30Si ErP COMPACT NG | 47-406-75 | 47-406-75 | — | — |
| WORCESTER GREENSTAR 30i ErP SYSTEM COMPACT LPG | 41-406-61 | 41-406-61 | — | — |
Showing 10 of 34 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 27i ErP SYSTEM COMPACT LPG (GC 41-406-59), GREENSTAR 27i ErP SYSTEM COMPACT NG (GC 41-406-58), GREENSTAR 30i ErP SYSTEM COMPACT LPG (GC 41-406-61), GREENSTAR 30i ErP SYSTEM COMPACT NG (GC 41-406-60)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualNo technical questions yet for this part.
