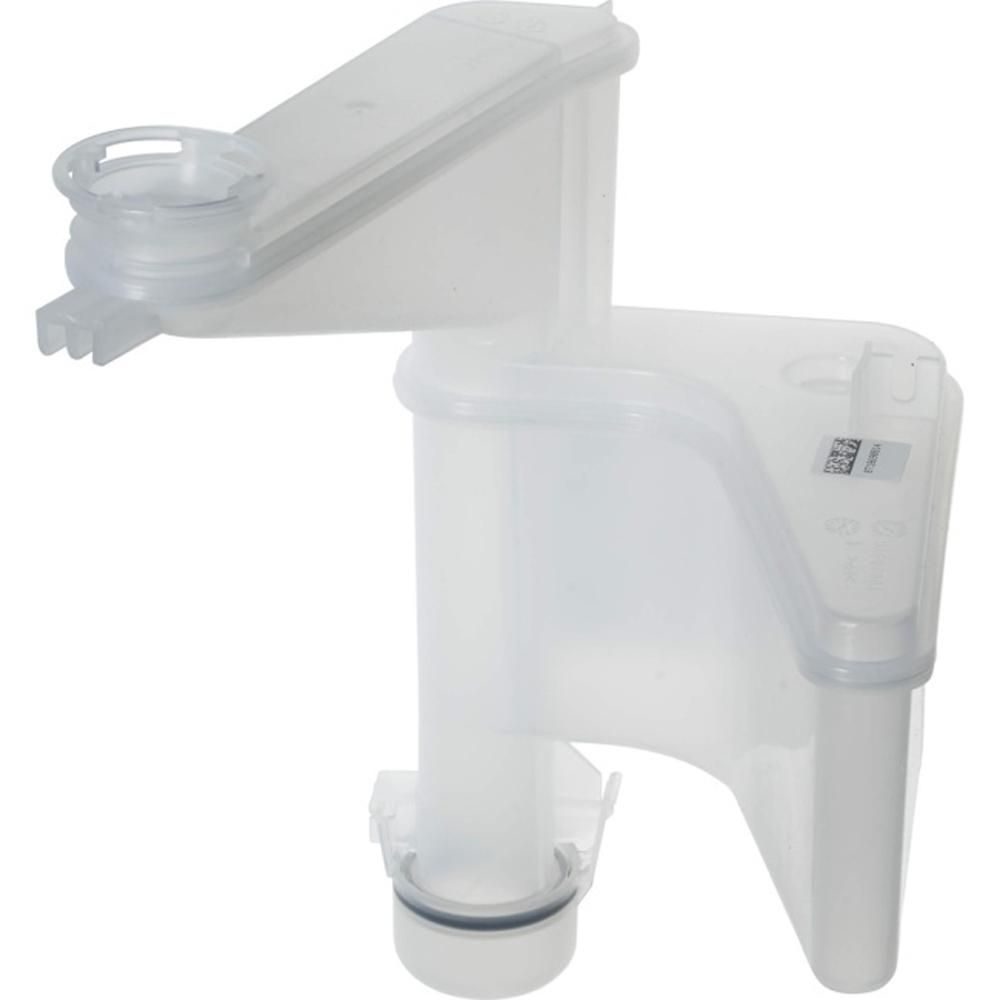

Worcester Bosch Condensate Siphon Assembly Xi Low 8716117083
Condensate siphon (Xi Low) for Worcester Bosch Greenstar i ErP System boilers, part 8716117083, alternative number 1031141.
At a glance
- Part type: Condensate assembly
- Also known as 1031141
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£33.62
£28.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch condensate siphon (Xi Low) is a condensate assembly used on Greenstar i ErP System boilers. It collects the condensate formed during combustion and passes it to the drain, holding a water seal that keeps flue gases within the condensate route rather than letting them escape. It is supplied as Worcester Bosch part 8716117083.
Signs this part needs replacing
- Condensate or water collecting beneath the boiler or around the siphon body
- Boiler locking out or shutting down on a condensate-related fault
- Gurgling, bubbling or slow draining noises from the condensate route
- Visible cracks, splits or distortion in the trap or siphon housing
- Heavy scale, sludge or debris build-up causing repeated blockages
Before you order
- Check the GC number and model shown on the appliance data badge against the compatibility list.
- Quote part number 8716117083 or the alternative number 1031141 when ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Condensate Traps & Siphons |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716117083 |
|---|---|
| GC number | J25-250 |
| Barcode / EAN | 4054925285338 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031141 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM LPG | 41-406-30 | 41-406-30 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM NG | 41-406-29 | 41-406-29 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM LPG | 41-406-32 | 41-406-32 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM NG | 41-406-31 | 41-406-31 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
