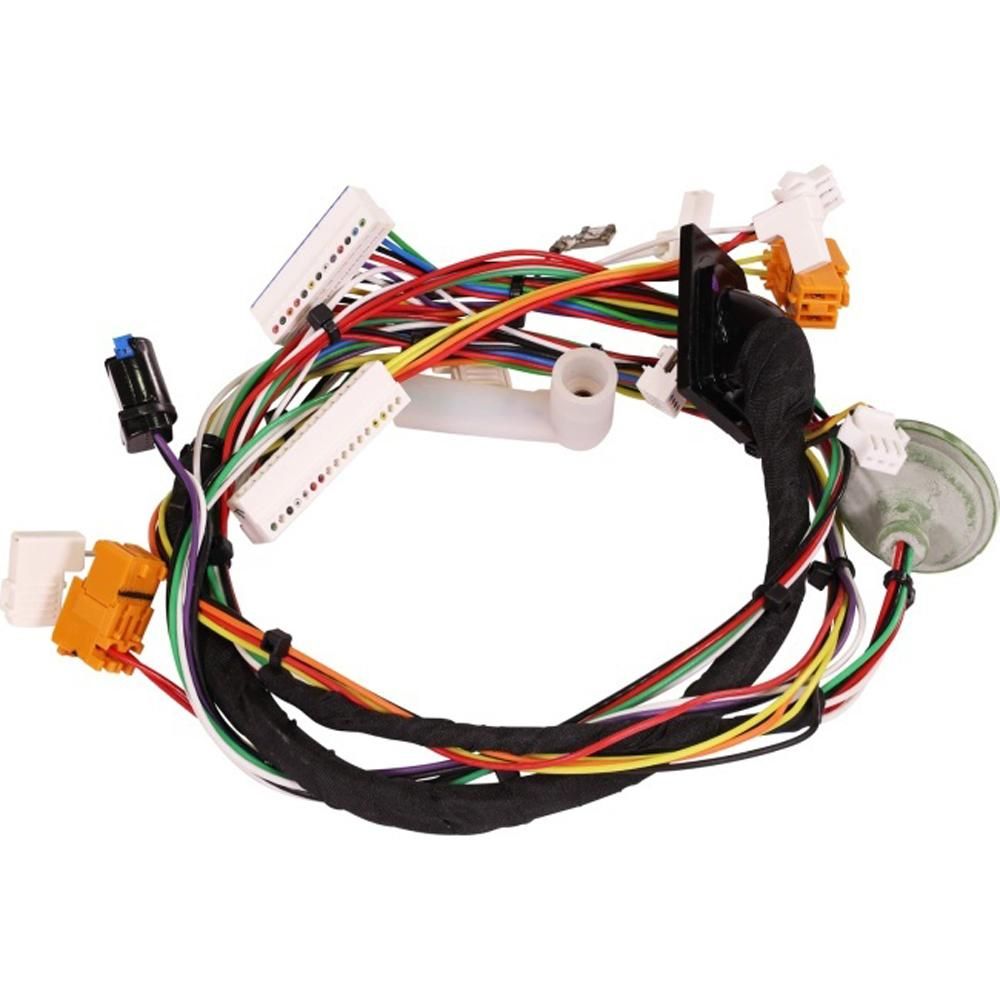

Worcester Bosch Low Voltage Harness 8716117072
Worcester Bosch 8716117072 low voltage wiring harness for Greenstar i ErP system boilers, carrying control signals within the appliance.
At a glance
- Part type: Cables, leads and wiring harnesses
- Also known as 1031085
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£57.54
£47.95 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8716117072 is a low voltage wiring harness supplied as a spare for Greenstar i ErP system boilers. It carries low voltage signals between the boiler's control components, supporting steady communication and reliable operation of the appliance. The harness is part of the Worcester Bosch Greenstar range and is listed under the cables, leads and wiring harnesses spare part group.
Signs this part needs replacing
- The boiler fails to fire or locks out intermittently
- Fault codes relating to control or sensor signals appear
- Connector pins are loose, corroded or show heat damage
- Insulation on the harness is cracked, chafed or brittle
- Components such as the fan or pump cut in and out unexpectedly
Before you order
- Check the appliance GC number and serial number against the compatibility list before ordering
- The alternative number 1031085 may be quoted on older documentation for the same harness
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716117072 |
|---|---|
| GC number | J25-259 |
| Barcode / EAN | 4054925285260 |
| Commodity code | 8544 42 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031085 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM LPG | 41-406-30 | 41-406-30 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM NG | 41-406-29 | 41-406-29 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM LPG | 41-406-32 | 41-406-32 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM NG | 41-406-31 | 41-406-31 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualNo technical questions yet for this part.
