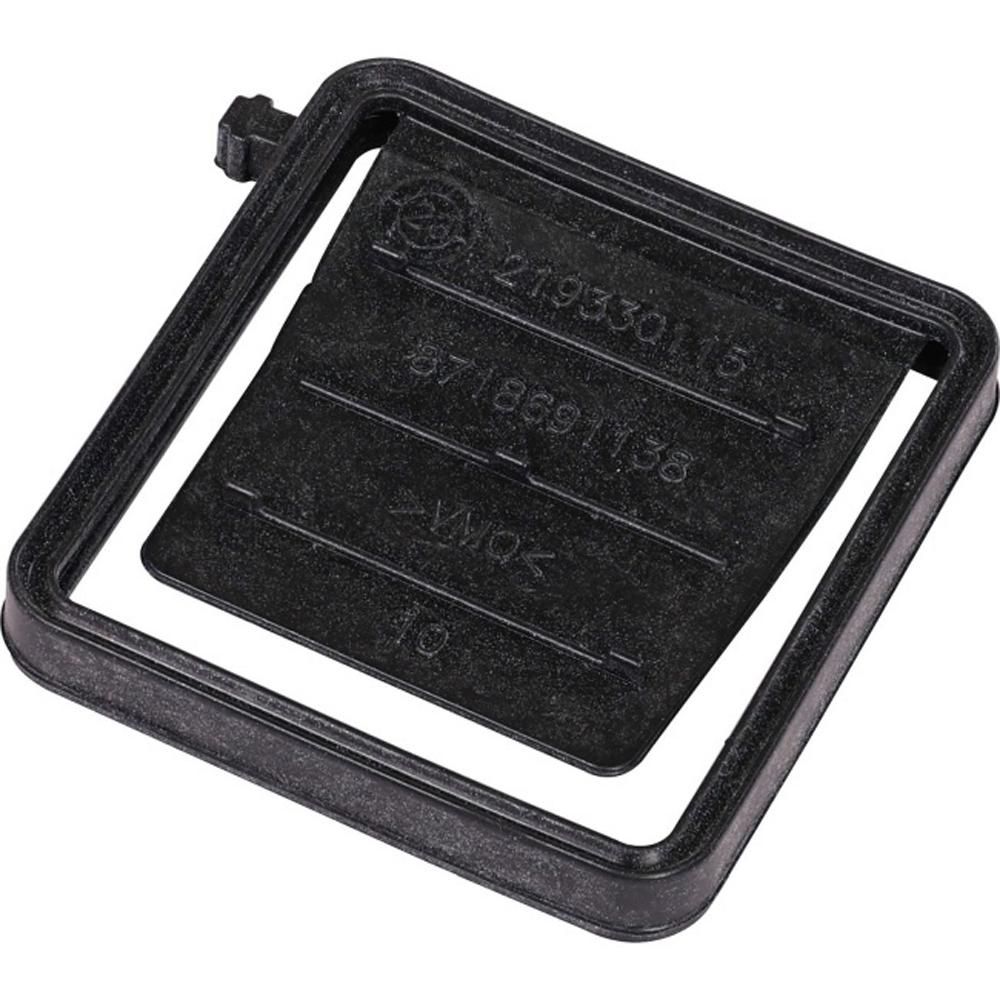

Worcester Bosch Seal Elbow Assembly AGM Return Valve Flap 8716117050
Worcester Bosch 8716117050 seal elbow assembly with return valve flap, for Greenstar i ErP System appliances.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1031117
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£3.47
£2.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8716117050 is a seal elbow assembly with an integral return valve flap. It sits at the elbow joint in the appliance's water or gas circuit, sealing the connection while the flap regulates flow through the return path. It is listed in the Worcester Bosch gaskets, seals and washers range and is used across the Greenstar i ErP System family of gas-fired appliances.
Signs this part needs replacing
- Water weeping or dripping from the elbow joint
- A gas smell or a leak detected at the elbow connection
- The seal looking cracked, flattened or hardened
- Falling system pressure or repeated topping up
- Damp staining or corrosion around the elbow and return valve flap
Before you order
- Check the GC number and serial plate on the appliance against the compatibility list before ordering.
- The alternative part number 1031117 identifies the same item.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716117050 |
|---|---|
| Barcode / EAN | 4054925284195 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Valves/Fittings Accessories/Replacement Parts - Water and Gas |
| Alternative numbers | 1031117 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C LPG | 47-800-27 | 47-800-27 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C NG | 47-800-26 | 47-800-26 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C LPG | 47-800-29 | 47-800-29 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C NG | 47-800-28 | 47-800-28 | — | — |
Showing 10 of 76 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualNo technical questions yet for this part.
