Worcester Bosch
Worcester Bosch Condensate Tray Seal 8716117038
Condensate tray seal for Worcester Bosch Greenstar i ErP system boilers, part 8716117038 (GC J25-222).
At a glance
- Part type: Gaskets, O-rings, seals and washers
- Appliance family: Greenstar i ErP system
- Also known as 1031125
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£3.47
£2.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

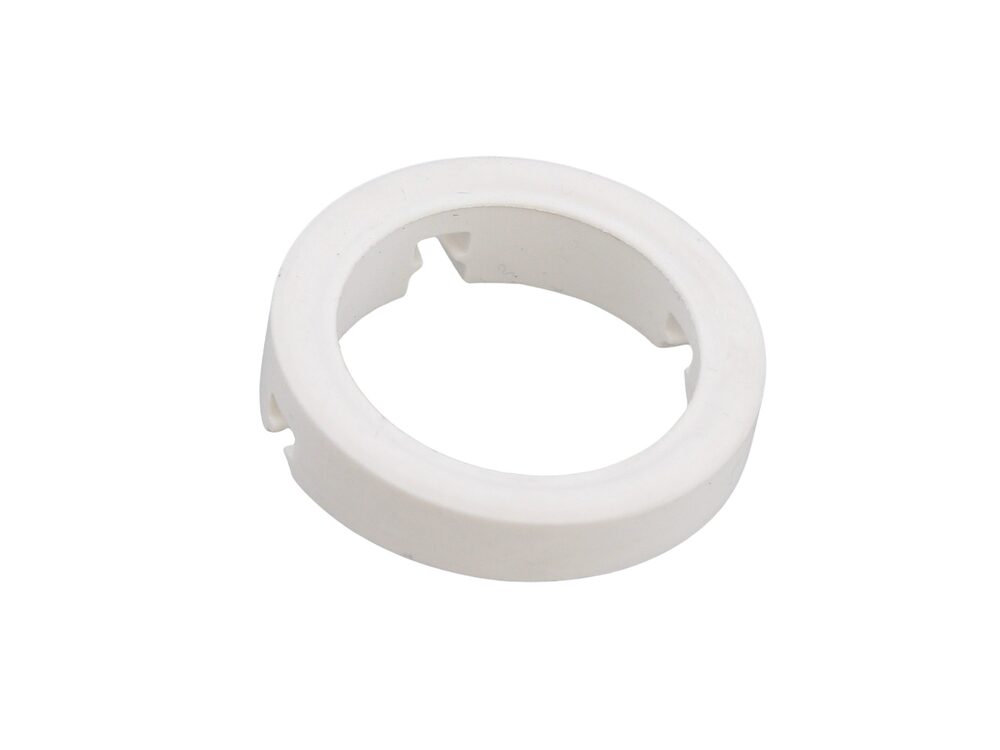

The condensate tray seal is a Worcester Bosch sealing component that sits between the condensate tray and the surrounding casing or heat exchanger assembly on Greenstar i ErP system boilers. It forms a watertight joint so that condensate produced during combustion is directed to the drain rather than escaping into the appliance. The seal is supplied under Worcester Bosch part number 8716117038.
Signs this part needs replacing
- Water or condensate pooling inside the boiler casing or beneath the appliance
- Damp staining or corrosion around the condensate tray area
- A visible split, flattening or hardening of the seal material
- Condensate escaping from the tray joint rather than reaching the drain
- Repeated nuisance water traces after a service or tray removal
Before you order
- Confirm the GC number on the appliance data badge matches J25-222 before ordering.
- Check the model against the compatibility list, as the seal is listed for 76 Greenstar i ErP system variants.
- If the condensate tray is being removed for access, inspect any adjacent gaskets and seals for reuse.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gaskets, O-rings, seals and washers |
|---|---|
| Appliance family | Greenstar i ErP System |
Compliance
| Manufacturer part number (MPN) | 8716117038 |
|---|---|
| GC number | J25-222 |
| Barcode / EAN | 4054925284072 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031125 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C LPG | 47-800-27 | 47-800-27 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 25 C NG | 47-800-26 | 47-800-26 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C LPG | 47-800-29 | 47-800-29 | — | — |
| WORCESTER GREENSTAR 2000 COMBI GR2300iW 30 C NG | 47-800-28 | 47-800-28 | — | — |
Showing 10 of 76 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualNo technical questions yet for this part.
