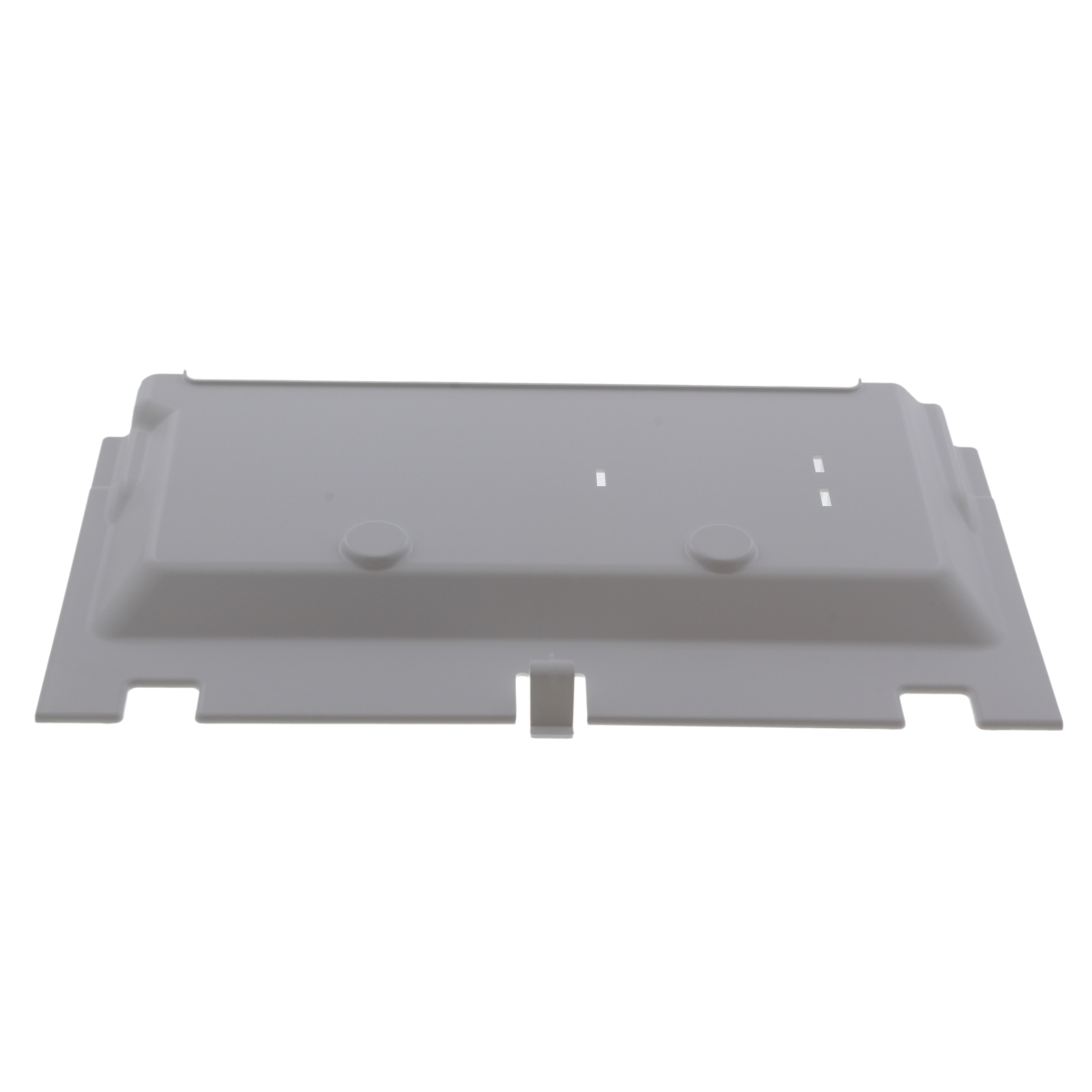

Worcester Bosch Bottom Casing Panel 8716117030
Worcester Bosch bottom casing panel (8716117030) for Greenstar i ErP System boilers, forming the lower outer casing of the appliance.
At a glance
- Part type: Casing assembly
- Also known as 1031071
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£25.03
£20.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch bottom casing panel is the lower section of the outer casing that encloses the underside of the boiler. It forms part of the appliance's external shell, protecting internal components and completing the finished look of the unit. This panel is designed for the Worcester Bosch Greenstar i ErP System range and is supplied under part number 8716117030.
Signs this part needs replacing
- Visible cracks, splits or holes in the bottom panel
- Impact damage from tools, servicing or moving the appliance
- Corrosion or rust staining along the panel edges
- Panel no longer sits flush or clips securely to the boiler chassis
- Discolouration or heat marking that cannot be cleaned off
Before you order
- Check the GC number and appliance serial plate to confirm the correct casing variant for your model.
- Cross-reference the alternative number 1031071 against the panel currently fitted.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Casings, Covers & Panels |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 8716117030 |
|---|---|
| GC number | J25-217 |
| Barcode / EAN | 4054925283990 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1031071 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM LPG | 41-406-28 | 41-406-28 | — | — |
| WORCESTER GREENSTAR 18i ErP SYSTEM NG | 41-406-27 | 41-406-27 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM LPG | 41-406-30 | 41-406-30 | — | — |
| WORCESTER GREENSTAR 21i ErP SYSTEM NG | 41-406-29 | 41-406-29 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM LPG | 41-406-32 | 41-406-32 | — | — |
| WORCESTER GREENSTAR 24i ErP SYSTEM NG | 41-406-31 | 41-406-31 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i ErP SYSTEM LPG (GC 41-406-24), GREENSTAR 12i ErP SYSTEM NG (GC 41-406-23), GREENSTAR 15i ErP SYSTEM LPG (GC 41-406-26), GREENSTAR 15i ErP SYSTEM NG (GC 41-406-25), GREENSTAR 18i ErP SYSTEM LPG (GC 41-406-28), GREENSTAR 18i ErP SYSTEM NG (GC 41-406-27), GREENSTAR 21i ErP SYSTEM LPG (GC 41-406-30), GREENSTAR 21i ErP SYSTEM NG (GC 41-406-29), GREENSTAR 24i ErP SYSTEM LPG (GC 41-406-32), GREENSTAR 24i ErP SYSTEM NG (GC 41-406-31), GREENSTAR 9i ErP SYSTEM LPG (GC 41-406-22), GREENSTAR 9i ErP SYSTEM NG (GC 41-406-21)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualNo technical questions yet for this part.
