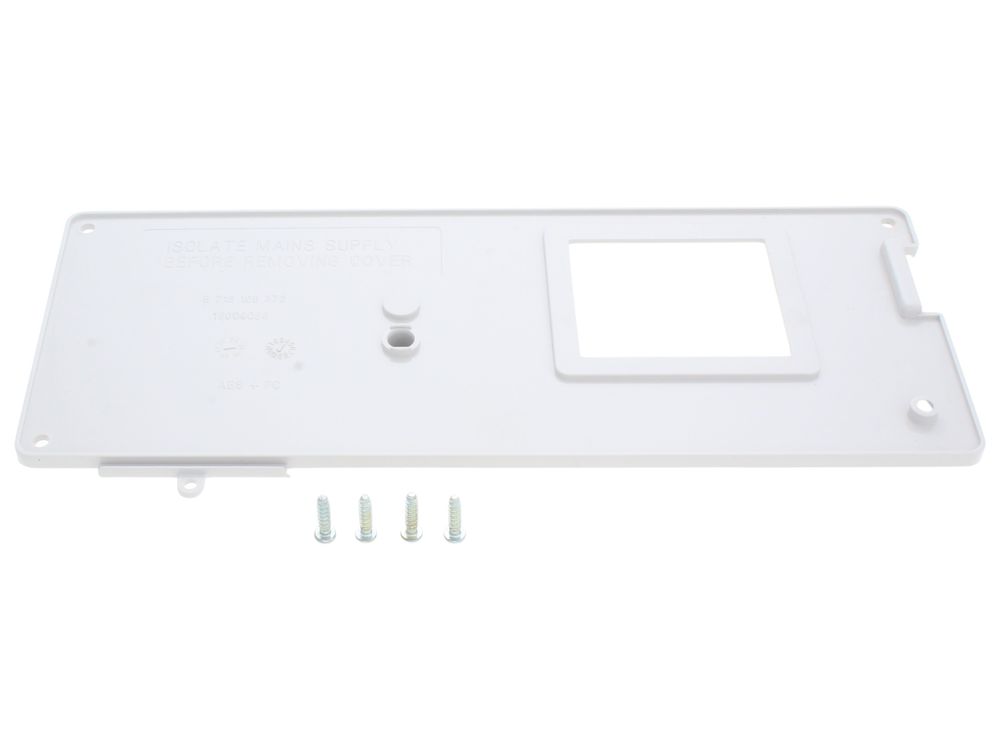

Worcester Bosch Back Panel Control Box 8716116817
Back panel for the control box assembly on Worcester Bosch 24I and 28I Junior RSF gas boilers, part number 8716116817.
At a glance
- Also known as 2244243
£14.93
£12.44 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The back panel for the control box, manufactured by Worcester Bosch under part number 8716116817. It provides the mounting surface that the control box and its printed circuit board sit on inside the appliance casing. It is used across the Junior RSF range listed below.
Signs this part needs replacing
- Scorching, discolouration or heat damage around the control box mounting area
- Cracking or brittleness in the panel or at its fixing points
- The control box or PCB no longer sits square or securely on the panel
- Fixing screws will not tighten or hold the control box in place
- Distortion of the panel affecting the seating of electrical connections
Before you order
- Check the appliance data badge and confirm the model and GC number against the fit list above
- Compare the part number on the existing panel with 8716116817
- Inspect the control box and PCB for related damage before ordering
- Isolate the electrical supply and follow the manufacturer's instructions before removing the panel
Compliance
| GC number | J16-574 |
|---|---|
| Alternative numbers | 2244243 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
