Worcester Bosch

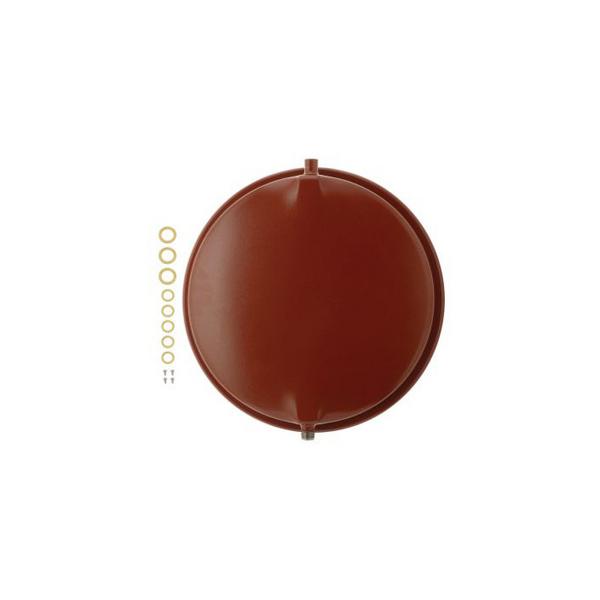

Worcester Bosch Expansion Vessel 8 Litre 87161165450
At a glance
- Part type: Expansion vessel
- Appliance family: Si, C1 and RD series boilers
- Also known as WB87161165450, 1030587, N0197-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£139.34
£116.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 8 litre expansion vessel is a sealed pressure chamber fitted to Si, C1 and RD series boilers. Its air charge acts as a cushion, absorbing the expansion of water as the system heats and protecting the appliance and its components from excess pressure. The vessel is a serviceable item and is replaced when the internal charge is lost or the chamber is damaged.
Signs this part needs replacing
- System pressure climbs steadily as the boiler heats and approaches the safety limit
- Water discharging from the pressure relief valve during normal operation
- Pressure drops repeatedly and the system needs frequent top-ups
- Water appears at the air valve when the vessel charge is checked
- Corrosion, blistering or physical damage to the vessel body
Before you order
- Check the GC number and serial plate on the appliance to confirm the vessel suits your model
- Compare the part number against earlier references 8-715-407-154-0, 87054070010, 87154071540 and DD97909076 when replacing an older unit
- Confirm the vessel capacity and connection match the boiler before removal of the original
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Expansion Vessels, Tanks & Cylinders |
|---|
Compliance
| Manufacturer part number (MPN) | 87161165450 |
|---|---|
| GC number | E27-587 |
| Barcode / EAN | 4051516733414 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161165450, 8-715-407-154-0, 87054070010, DD97909076, 1030587, N0197-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 SI II RSF NG | 47-311-65 | 47-311-65 | — | — |
| WORCESTER 25 SI RSF COMBI LPG | 47-311-50 | 47-311-50 | — | — |
| WORCESTER 25 SI RSF COMBI NG | 47-311-49 | 47-311-49 | — | — |
| WORCESTER 28 SI II RSF NG | 47-311-67 | 47-311-67 | — | — |
| WORCESTER 28 SI RSF LPG | 47-311-52 | 47-311-52 | — | — |
| WORCESTER 28 SI RSF NG | 47-311-51 | 47-311-51 | — | — |
| WORCESTER BRITISH GAS C1-FSN-GB NG COMBI | 47-311-53 | 47-311-53 | — | — |
| WORCESTER BRITISH GAS RD628 RSF | 47-108-14 | 47-108-14 | — | — |
| WORCESTER WORCESTER 24SI II RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 25SI RSF LPG | — | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 SI II RSF NG (GC 47-311-65), 28 SI II RSF NG (GC 47-311-67)
manualmanualWORCESTER appliance manual — 25 SI RSF COMBI LPG (GC 47-311-50), 25 SI RSF COMBI NG (GC 47-311-49), 28 SI RSF LPG (GC 47-311-52), 28 SI RSF NG (GC 47-311-51)
manualmanualWORCESTER appliance manual — BRITISH GAS C1-FSN-GB NG COMBI (GC 47-311-53)
manualmanualWORCESTER appliance manual — BRITISH GAS RD628 RSF (GC 47-108-14)
manualNo technical questions yet for this part.
