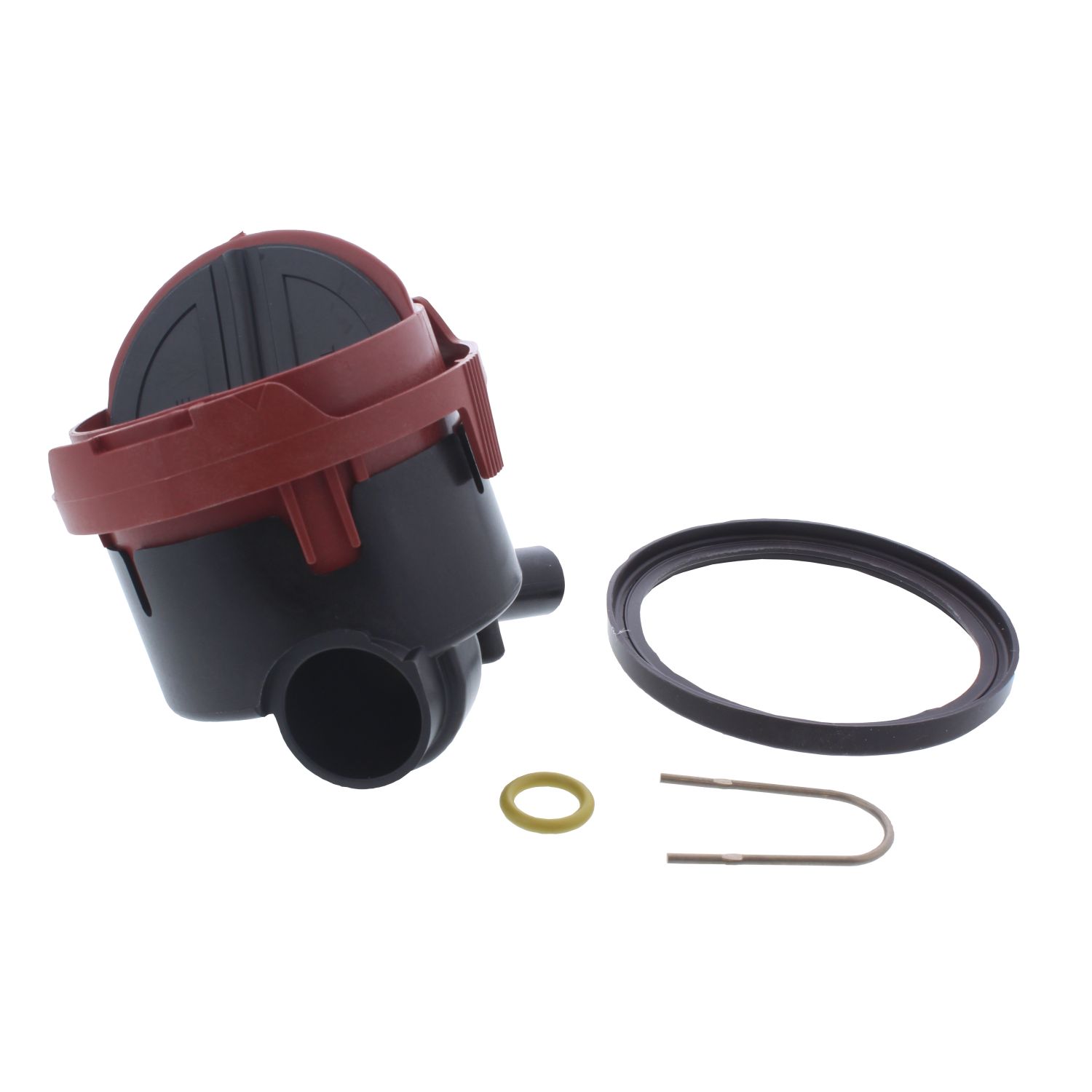

Worcester Bosch Mixing Chamber Assembly 87161164860
Worcester Bosch 87161164860 air/gas mixing chamber assembly for Greenstar Ri and ErP boilers, located in the combustion chamber.
At a glance
- Part type: Combustion chamber
- Also known as 1012611, N0134
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£30.58
£25.48 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161164860 is an air and gas mixing chamber assembly. It sits within the combustion chamber of the appliance, where it helps combine air and gas for combustion. The combustion chamber itself is a sealed area that contains the burner and electrodes, capturing combusted gases so the fan can expel them through the flue.
Signs this part needs replacing
- Boiler fails to ignite or locks out repeatedly
- Soot deposits or discolouration around the combustion chamber
- Visible cracks, corrosion, or warping on the mixing chamber
- Fan runs continuously or error codes related to combustion
- Unstable flame or poor combustion readings
Before you order
- Check your appliance's GC number and model against the compatibility list.
- Confirm whether your appliance uses the previous part number 87110002920.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Air & Gas Mixer Components |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161164860 |
|---|---|
| GC number | H04-637 |
| Barcode / EAN | 4051516696726 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161164860, 8-716-116-486-0, WB87161164860, 87110002920, 1012611, N0134 |
| Previous numbers | 87110002920 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ LPG | 41-406-69 | 41-406-69 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ NG | 41-406-75 | 41-406-75 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 15RI CONVENTIONAL LPG | 41-311-76 | 41-311-76 | — | — |
Showing 10 of 51 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP+ LPG (GC 41-406-69), GREENSTAR 12Ri ErP+ NG (GC 41-406-75), GREENSTAR 15Ri ErP+ LPG (GC 41-406-70), GREENSTAR 15Ri ErP+ NG (GC 41-406-76), GREENSTAR 18Ri ErP+ LPG (GC 41-406-71), GREENSTAR 18Ri ErP+ NG (GC 41-406-77), GREENSTAR 21Ri ErP+ LPG (GC 41-406-72), GREENSTAR 21Ri ErP+ NG (GC 41-406-78), GREENSTAR 24Ri ErP+ LPG (GC 41-406-73), GREENSTAR 24Ri ErP+ NG (GC 41-406-79), GREENSTAR 9Ri ErP+ LPG (GC 41-406-68), GREENSTAR 9Ri ErP+ NG (GC 41-406-74)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
