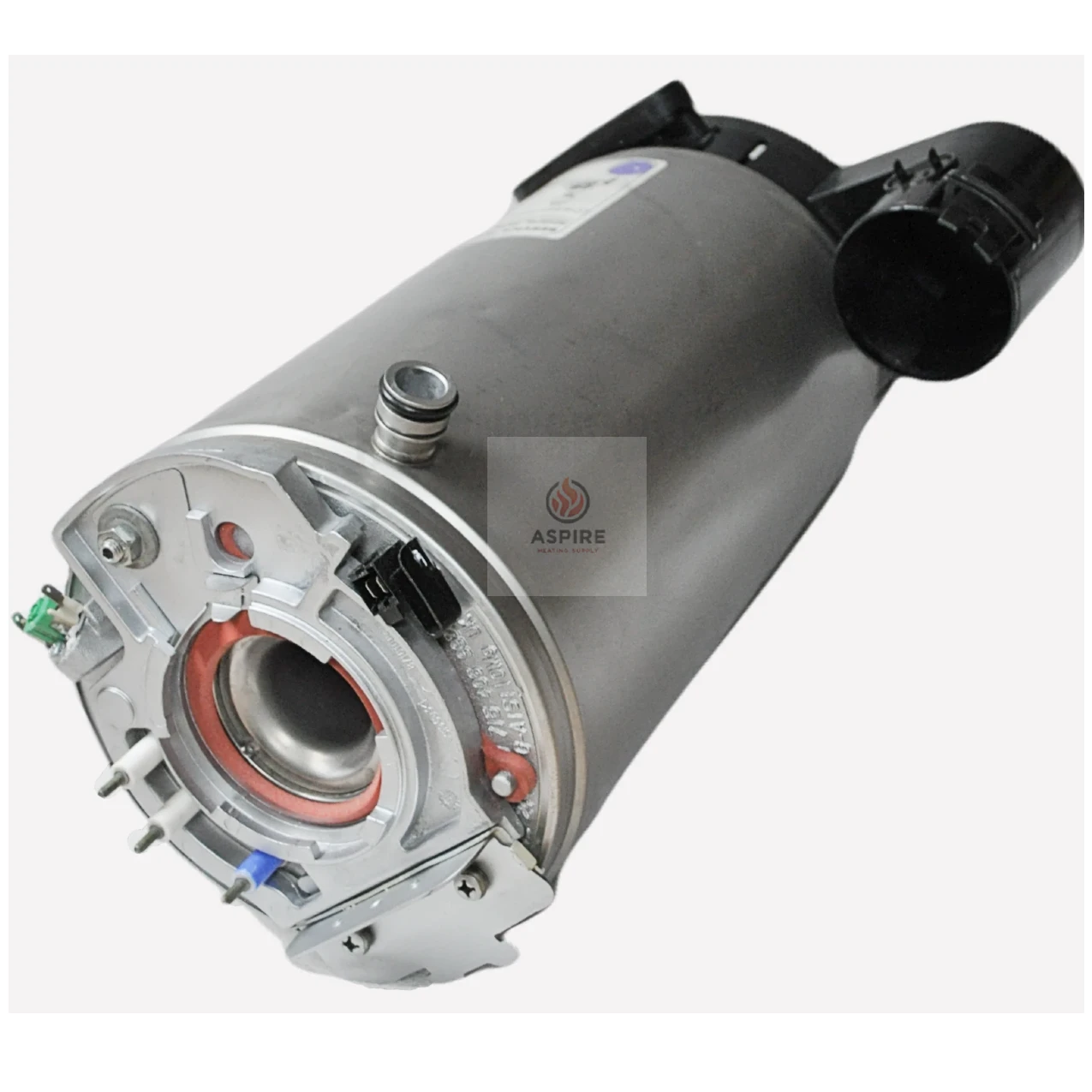

Worcester Bosch Heat Exchanger 87161157400
At a glance
- Part type: Heat exchanger
- Also known as 1015131, N5702-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£544.73
£453.94 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a Worcester Bosch heat exchanger, the component that transfers heat from the burner's combustion gases into the water circulating around the heating system. It sits at the core of the appliance's hydraulic circuit and is used across the Greenstar Ri and i System ranges. Over time the internal waterways can scale or sludge up, and the gas-side surfaces can corrode, which is when replacement becomes necessary.
Signs this part needs replacing
- Kettling, banging or rumbling noises from the boiler during firing
- Reduced heating or hot water output despite the burner running correctly
- Overheat lockouts or repeated high-limit trips
- Visible leakage or weeping from the heat exchanger body or its connections
- Discoloured or restricted waterways found during a strip-down
Before you order
- Check the GC number and appliance serial plate to confirm the correct variant for your boiler
- Cross-check the previous part numbers 87161070540 and 87161070550 against the unit being removed
- Confirm whether a gasket or seal kit is needed for the specific appliance before fitting
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat exchanger |
|---|
Compliance
| Manufacturer part number (MPN) | 87161157400 |
|---|---|
| GC number | 723-532 |
| Barcode / EAN | 4047416971599 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161157400, 87161070540, 87161070550, 1015131, N5702-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 15RI CONVENTIONAL LPG | 41-311-76 | 41-311-76 | — | — |
| WORCESTER GREENSTAR 15RI CONVENTIONAL NG | 41-311-75 | 41-311-75 | — | — |
| WORCESTER GREENSTAR 18RI CONVENTIONAL LPG | 41-311-78 | 41-311-78 | — | — |
| WORCESTER GREENSTAR 18RI CONVENTIONAL NG | 41-311-77 | 41-311-77 | — | — |
Showing 10 of 42 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
