Worcester Bosch

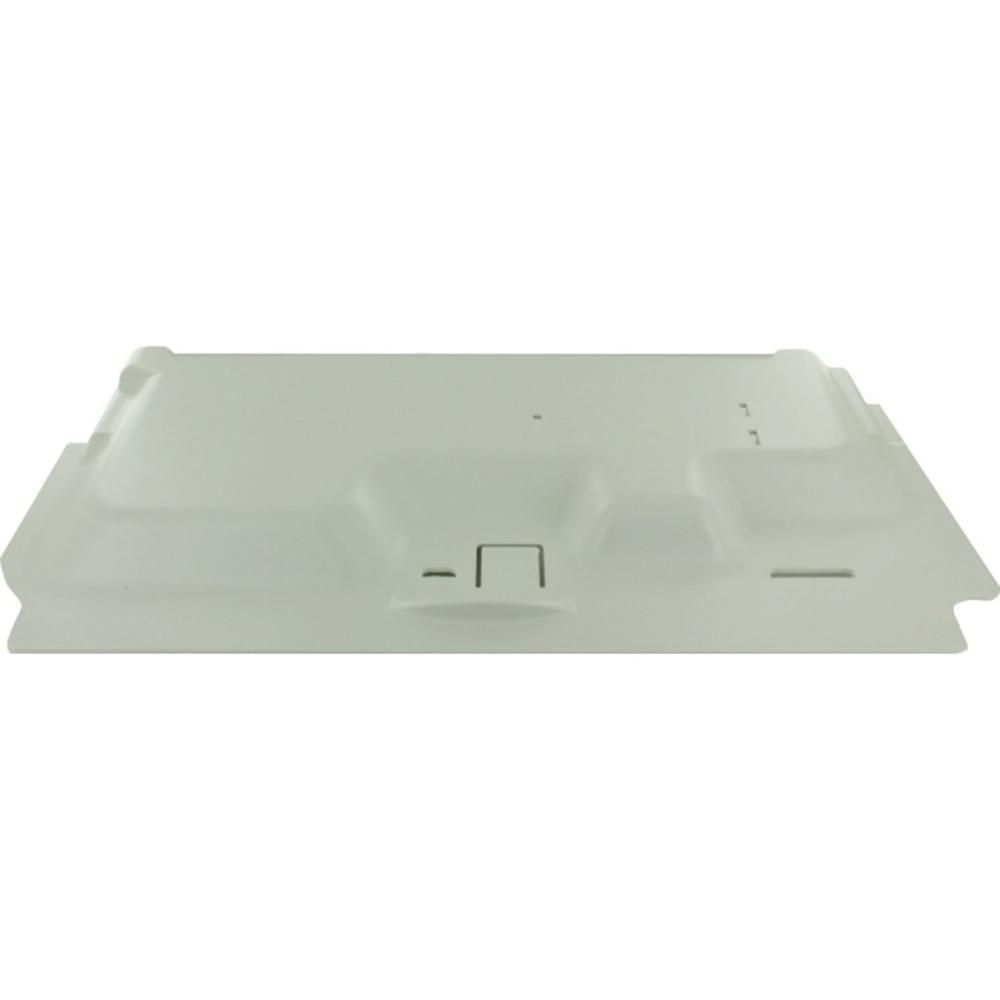

Worcester Bosch Casing Assembly Bottom Panel 87161138460
At a glance
- Part type: Casing assembly, bottom panel
- Also known as 1015057
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£19.80
£16.50 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161138460 is the bottom panel of the casing assembly used on Greenstar i System boilers. It forms the lower section of the outer casing that encloses the combustion chamber area, keeping the internal components covered and correctly supported within the appliance. The panel is supplied as a Worcester branded spare and is listed against the Greenstar i System family.
Signs this part needs replacing
- Visible corrosion, rust staining or blistering along the lower edge of the casing
- Distortion or warping of the panel after prolonged heat exposure
- Cracks or splits in the panel, particularly around fixing points
- The panel no longer sits flush or seats correctly against the rest of the casing
- Fixing screws will not tighten because the mounting holes have deteriorated
Before you order
- Check the appliance GC number and serial plate to confirm the boiler model before ordering.
- The earlier number 87161067510 (8-716-106-751-0) is listed for this item; compare it against the number on your existing panel.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Combustion Chamber |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161138460 |
|---|---|
| GC number | H08-082 |
| Barcode / EAN | 4047416871790 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161138460, 8-716-106-751-0, 1015057 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM LPG | 41-311-87 | 41-311-87 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM NG | 41-311-86 | 41-311-86 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 LPG | 47-406-55 | 47-406-55 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 NG | 47-406-54 | 47-406-54 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR NG | 47-311-86 | 47-311-86 | — | — |
| WORCESTER GREENSTAR 24i JUNIOR LPG | 47-311-90 | 47-311-90 | — | — |
Showing 10 of 24 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
