Worcester Bosch Pressure Relief Valve 7 Bar 87161134080
Worcester Bosch 7 bar temperature and pressure relief valve, part 87161134080, for Greenskies cylinders.
At a glance
- Part type: Temperature and pressure relief valve
- Appliance family: Greenskies
- Also known as 1021886
£86.15
£71.79 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

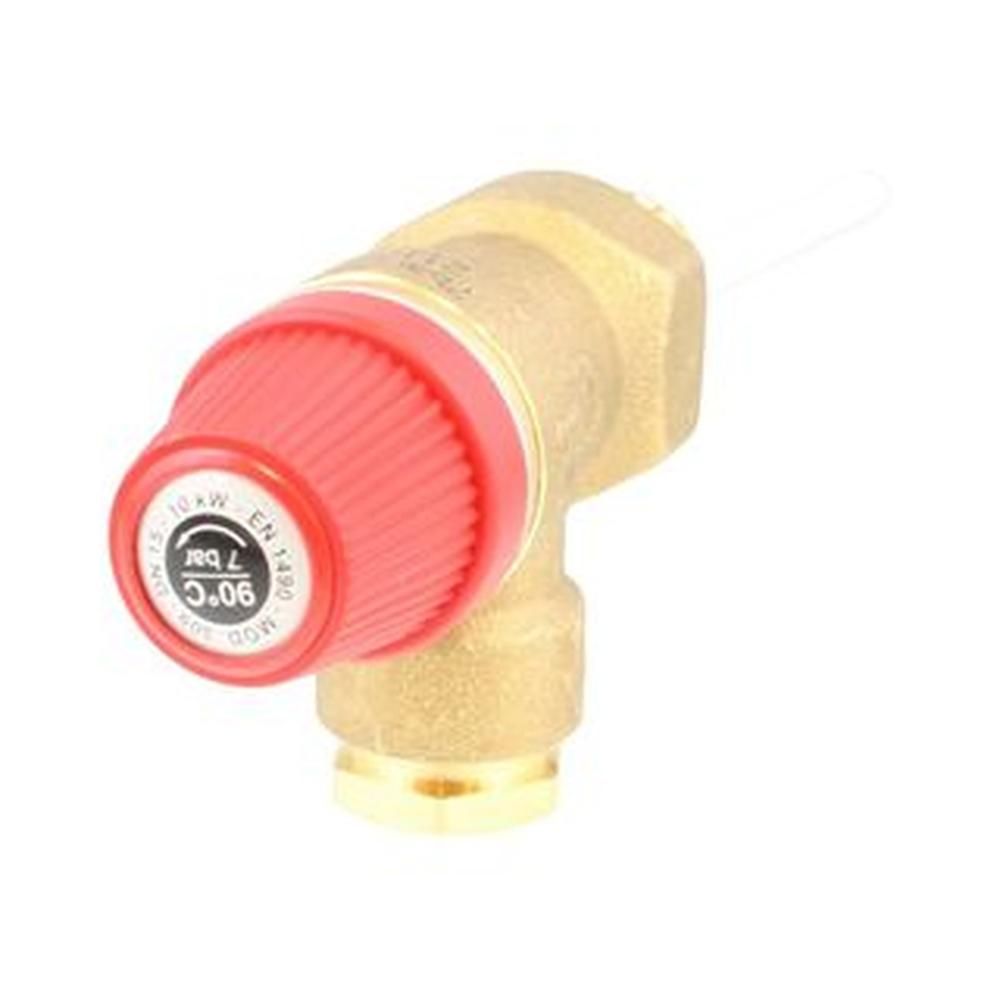

The Worcester Bosch 87161134080 is a 7 bar temperature and pressure relief valve for Worcester Bosch Greenskies cylinders. It is a safety device that opens and discharges water when the cylinder's internal pressure or temperature rises above its set threshold, protecting the cylinder shell and the components around it from over-pressurisation. The valve is a direct replacement for the unit originally fitted to these cylinders.
Signs this part needs replacing
- Water weeping or running continuously from the valve discharge outlet
- Discharge pipe passing water when the cylinder is cold and at normal working pressure
- The valve failing to reseat and seal after a pressure or temperature event
- Scale, corrosion or debris visible around the valve seat or outlet
- Cylinder pressure or temperature climbing beyond normal limits without the valve discharging
Before you order
- Confirm the part number 87161134080 against the valve currently fitted to the cylinder
- Check the cylinder model and serial plate to confirm Greenskies compatibility
- Cross-reference the alternative number 1021886 against older documentation
- Pressure and temperature relief work on a cylinder should be carried out by a competent engineer
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Appliance family | Greenskies |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161134080 |
|---|---|
| Barcode / EAN | 4010009165460 |
| Commodity code | 8481 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1021886 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BOSCH Greenskies | — | — | — |
