Worcester Bosch Wiring Harness Main 87161126100
At a glance
- Part type: Main wiring harness
- Also known as 1020393
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£44.74
£37.28 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

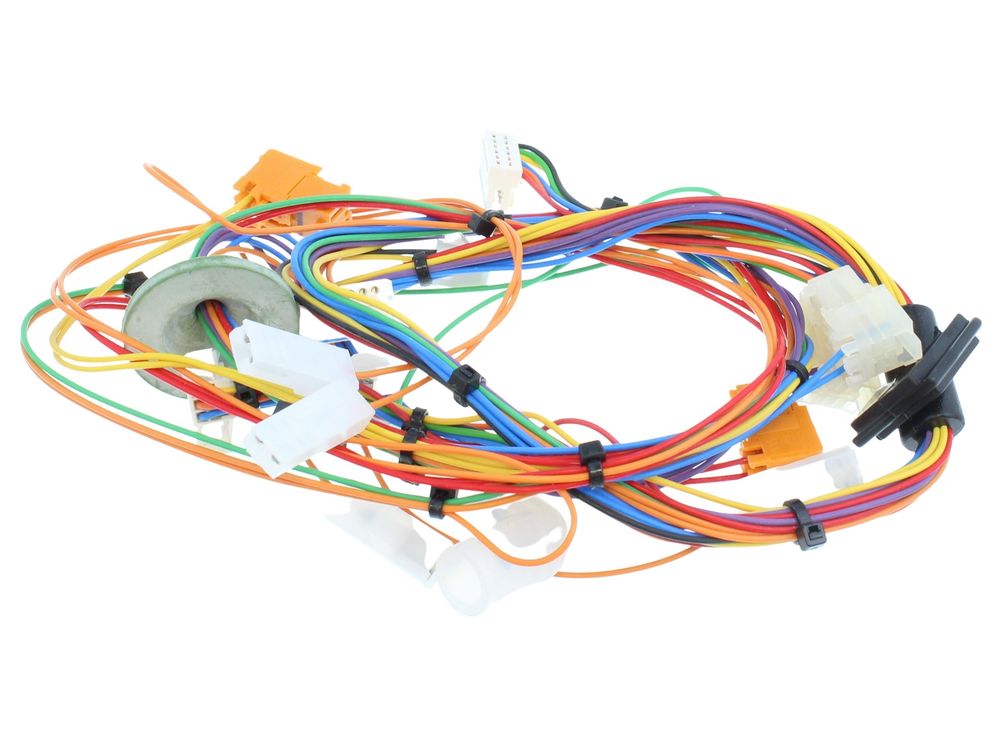

The Worcester Bosch main wiring harness, part 87161126100, is the loom that connects the appliance's electronic control board to its thermostats, sensors and switches. Wiring inside a Worcester Bosch heating appliance groups the individual conductors into a single harness, which keeps routing tidy and makes the control board's connections easier to trace during fault finding. Through this loom the printed circuit board reads the appliance's inputs and enacts its safety protocols and heating control.
Signs this part needs replacing
- Intermittent shutdowns or faults that change when the harness is disturbed
- Error codes pointing to sensors or controls that test correctly at the component
- The appliance fails to respond when the controls are operated
- Chafed, scorched or brittle insulation visible along the loom
- Loose, pushed-back or corroded terminals at the board or sensor plugs
Before you order
- Check the appliance GC number and serial plate to confirm this harness suits your model.
- Compare the previous part numbers listed below with the harness currently fitted before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring harness |
|---|
Compliance
| Manufacturer part number (MPN) | 87161126100 |
|---|---|
| GC number | H75-505 |
| Barcode / EAN | 4010009103950 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161126100, 8-716-106-852-0, 87161067200, 1020393 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM LPG | 41-311-87 | 41-311-87 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM NG | 41-311-86 | 41-311-86 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 LPG | 47-406-55 | 47-406-55 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 NG | 47-406-54 | 47-406-54 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR NG | 47-311-86 | 47-311-86 | — | — |
| WORCESTER GREENSTAR 24i JUNIOR LPG | 47-311-90 | 47-311-90 | — | — |
Showing 10 of 24 compatible appliances.
