Worcester Bosch
Worcester Bosch Middle Baffle 87161096220

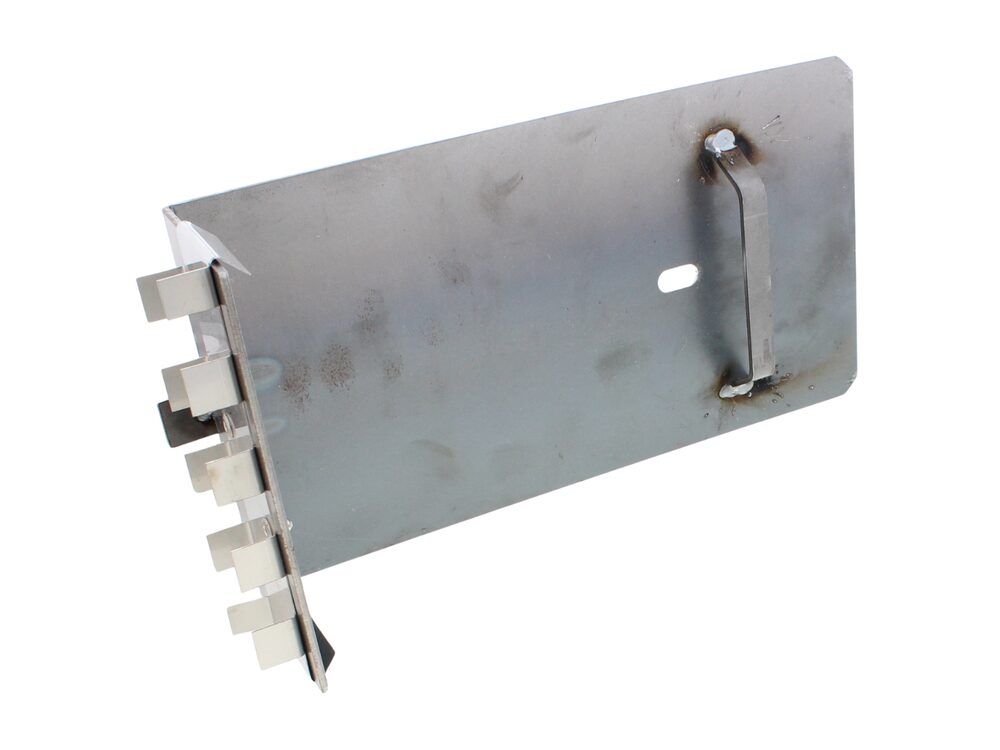

Middle baffle for Worcester Bosch Camray 3 135/175 oil boilers, part number 87161096220.
At a glance
- Part type: middle baffle
- Also known as 1021413
£72.96
£60.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161096220 is a middle baffle for Camray 3 oil boilers. It is positioned in the flue gas path of the heat exchanger, where it slows the passage of combustion gases to aid heat transfer to the water. It is a serviceable component and is removed and refitted during routine cleaning and combustion checks.
Signs this part needs replacing
- Visible corrosion, cracking, warping or distortion of the baffle
- Heavy soot or carbon deposits that cannot be cleaned back to sound metal
- Reduced boiler efficiency or higher than expected fuel consumption
- Overheating, poor combustion readings or unstable flame performance noted at service
Before you order
- Confirm the boiler model is a Camray 3 135/175
- Check the position required — this is the middle baffle, not a front or rear baffle
- Inspect the existing baffle and confirm how many are needed
- Cross-check the part number 87161096220 against the boiler's parts list
Compliance
| Barcode / EAN | 4010009253815 |
|---|---|
| Alternative numbers | 1021413 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER CAMRAY 3 135/175 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
