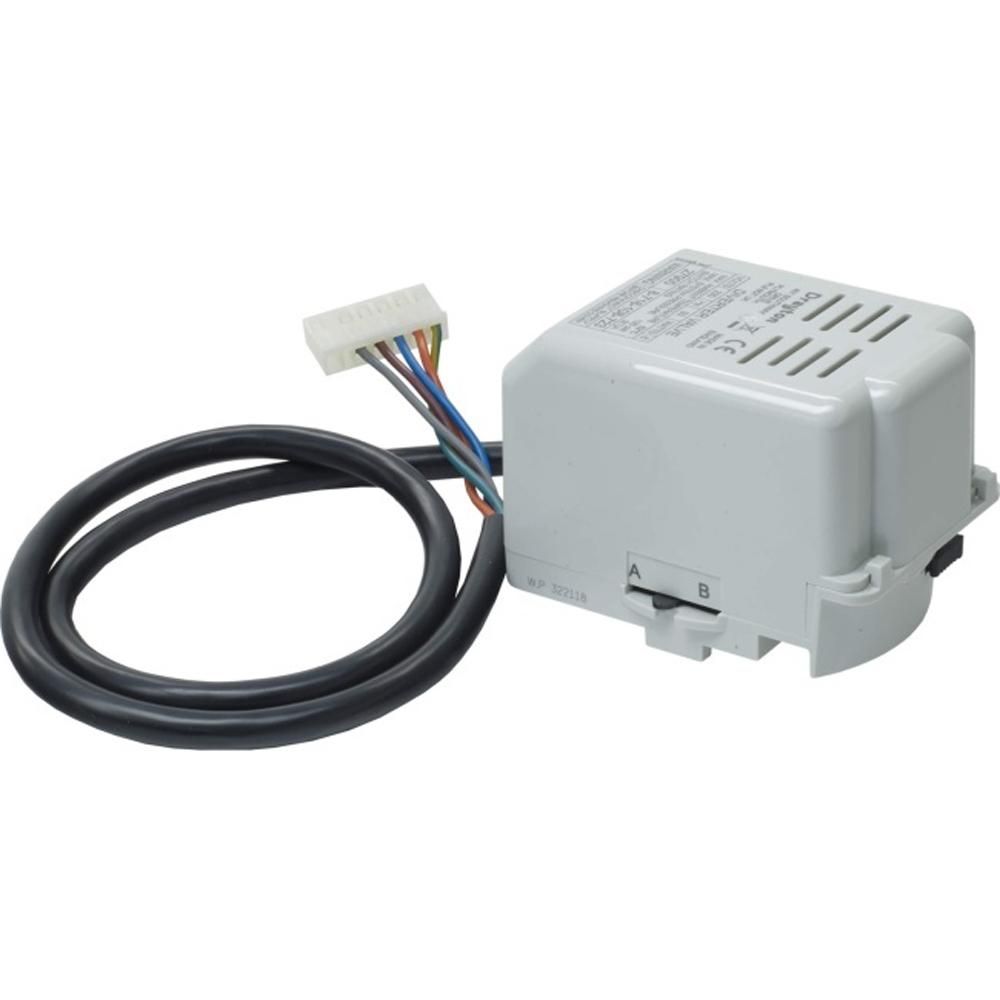

Worcester Bosch Diverter Valve Actuator Assembly 87161087230
Worcester Bosch diverter valve actuator assembly, part 87161087230, for Greenstar Heatslave External and Heatslave HE Internal models.
At a glance
- Part type: Diverter and motorised valves
- Also known as 1015429
£169.03
£140.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The diverter valve actuator assembly is a Worcester Bosch hydraulic component used in Greenstar Heatslave oil-fired boiler ranges. It drives the diverter valve inside the appliance, moving the valve between its positions so that water flow is directed to the correct circuit for heating or hot water. The assembly is supplied as a single unit and carries a 1 year manufacturer guarantee.
Signs this part needs replacing
- No hot water while the heating continues to run as normal
- Heating circuit warming up when only hot water is called for
- Actuator head not moving, or moving only part way, when the valve is demanded
- Motor running continuously or buzzing without shifting the valve spindle
- Valve stuck in one position, leaving the appliance unable to switch between heating and hot water
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the actuator is used across several Heatslave variants
- Check the existing part number on the appliance and cross-reference it with 1015429 before ordering
- Inspect the valve body and seals while the actuator is removed, as a worn spindle or leaking seal will affect the new assembly
- Work on the hydraulic side of the appliance should be carried out by a competent engineer
Mechanical
| Part type | Diverter & Motorised Valves |
|---|
Compliance
| Manufacturer part number (MPN) | 87161087230 |
|---|---|
| Barcode / EAN | 4010009247975 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1015429 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 18/25 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 25/32 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 12/18 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 18/25 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 25/32 INTERNAL | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 OSO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 18/25 OSO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 25/32 OSO | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR HEATSLAVE EXTERNAL 12/18, GREENSTAR HEATSLAVE EXTERNAL 18/25, GREENSTAR HEATSLAVE EXTERNAL 25/32
manualmanualWORCESTER appliance manual — GREENSTAR HEATSLAVE HE 12/18 INTERNAL, GREENSTAR HEATSLAVE HE 18/25 INTERNAL, GREENSTAR HEATSLAVE HE 25/32 INTERNAL
manualNo technical questions yet for this part.
