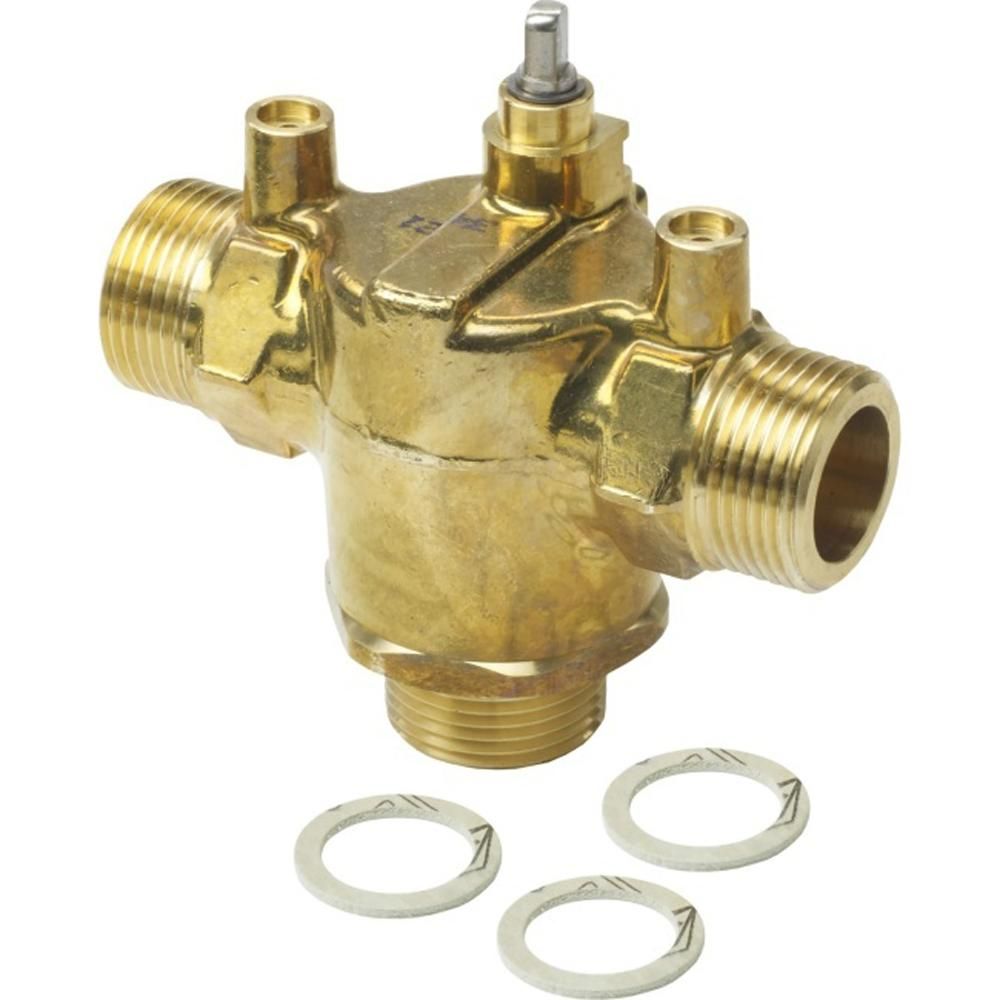

Worcester Bosch Diverter Valve Body Assembly 87161087220
Worcester Bosch 87161087220 diverter valve body assembly for Greenstar Heatslave internal and external models, controlling water flow inside the appliance.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1015427
£128.66
£107.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161087220 is a diverter valve body assembly used in Worcester Bosch Greenstar Heatslave appliances. It forms the hydraulic body of the diverter valve, the component that directs water flow between the domestic hot water and heating circuits as the appliance switches duty. It is a Worcester Bosch spare, listed under diverter valves and hydraulics.
Signs this part needs replacing
- Domestic hot water runs lukewarm or cold while the heating circuit stays hot
- Radiators warm up when only hot water is called for, or hot water is produced when only heating is demanded
- The diverter valve motor runs but the valve body does not change position
- Water weeping from the valve body or from the spindle area
- The appliance locks out or reports a fault after failing to reach the correct flow path
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering, as the same part number is used across several Heatslave variants
- Check the existing valve body for the part number 87161087220 or the alternative number 1015427
- Inspect the seals and gaskets on the valve body and order replacements if they are worn or hardened
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161087220 |
|---|---|
| Barcode / EAN | 4010009247951 |
| Commodity code | 8481 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1015427 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 18/25 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 25/32 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 12/18 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 18/25 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 25/32 INTERNAL | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 OSO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 18/25 OSO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 25/32 OSO | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR HEATSLAVE EXTERNAL 12/18, GREENSTAR HEATSLAVE EXTERNAL 18/25, GREENSTAR HEATSLAVE EXTERNAL 25/32
manualmanualWORCESTER appliance manual — GREENSTAR HEATSLAVE HE 12/18 INTERNAL, GREENSTAR HEATSLAVE HE 18/25 INTERNAL, GREENSTAR HEATSLAVE HE 25/32 INTERNAL
manualNo technical questions yet for this part.
