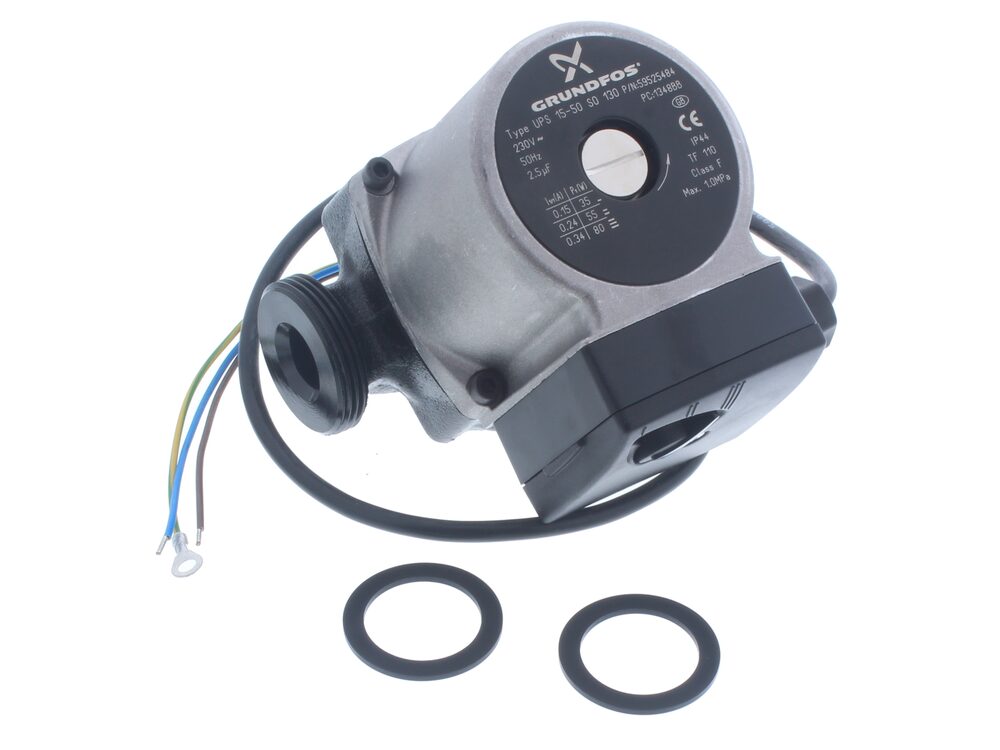

Worcester Bosch Circulating Pump Camray 5 87161084230
Worcester Bosch 87161084230 circulating pump for Camray 5 appliances, moving water around the primary heating circuit.
At a glance
- Part type: Circulating pump
- Also known as 1020429, N4944-C
£214.50
£178.75 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161084230 is a circulating pump supplied as a spare for the Camray 5 family of Worcester Bosch appliances. It moves water around the primary heating circuit, maintaining flow through the appliance and out to the radiators and hot water cylinder. If the pump stops or loses output, the appliance can overheat, lock out, or run with little or no heat reaching the system.
Signs this part needs replacing
- Radiators stay cold while the appliance fires and the flow pipe heats up
- The appliance overheats or repeatedly locks out during a call for heat
- The pump body runs hot but the pipework either side stays cool
- Grinding, humming or whining from the pump housing
- The pump runs intermittently, stalls, or fails to start when heat is demanded
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the number on the existing pump against the previous number EL49012
- Inspect the pump gasket and sealing washers and replace them if they are compressed or perished
- This part is not a gas-carrying component
Mechanical
| Part type | Circulating pump |
|---|
Compliance
| Manufacturer part number (MPN) | 87161084230 |
|---|---|
| Barcode / EAN | 4010009252931 |
| Commodity code | 8413 70 30 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | EL49012, 1020429, N4944-C |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BOULTER CAMRAY 5 40/65 SYSTEM | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 65/90 SYSTEM | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 65/90 UTILITY SYSTEM | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 COMBI 55 | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 COMBI 70 | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 COMBI 90 | — | — | — | |
| WORCESTER BOULTER CAMRAY 5 COMBI 90 EXTERNAL | — | — | — | |
| WORCESTER BOULTER CAMRAY 540/65 UTILITY SYSTEM | — | — | — | |
| WORCESTER CAM 5 40/65 SYSTEM | — | — | — | |
| WORCESTER CAM 5 40/65 UTILITY SYSTEM | — | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
