Worcester Bosch

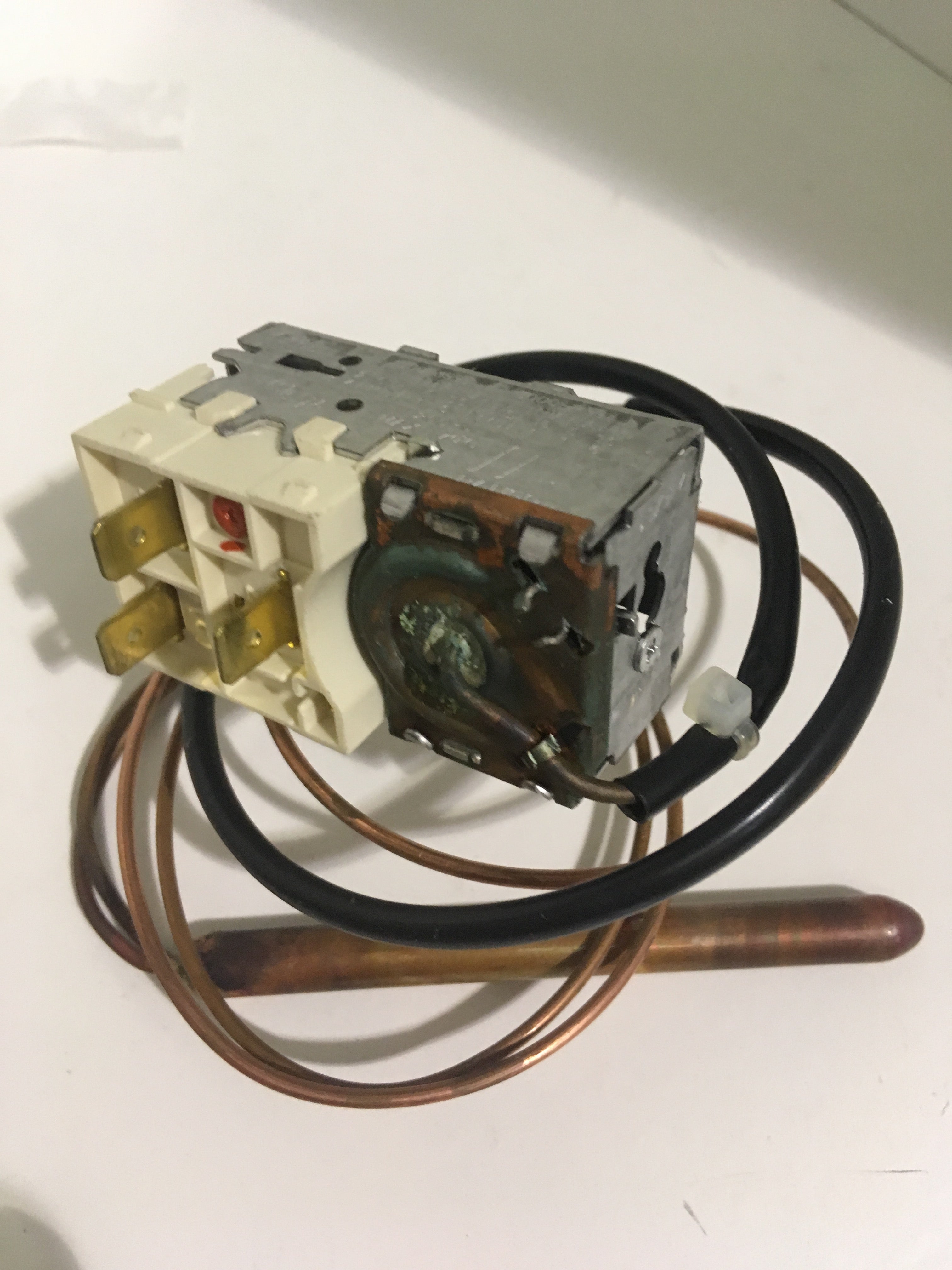

Worcester Bosch DHW Thermostat 87161078730
Worcester Bosch 87161078730 DHW thermostat for CAM 5 Combi gas boilers, sensing domestic hot water temperature for burner control.
At a glance
- Part type: DHW thermostat
- Also known as 1021121
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£25.37
£21.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161078730 is a domestic hot water (DHW) thermostat used on the CAM 5 Combi range of gas combination boilers. It sits on the hot water circuit and reports the water temperature back to the boiler's control board, which uses that reading to modulate burner output and hold the tap water at the temperature set on the control panel. A failed or drifting thermostat leaves the board without a reliable DHW temperature signal, so hot water control becomes erratic or stops altogether.
Signs this part needs replacing
- No hot water, or hot water that runs cold after a short draw-off
- Domestic hot water temperature that swings between cold and scalding regardless of the setting
- Boiler failing to fire or cutting out on a hot water demand while central heating still works
- DHW temperature readings on the display that do not match the water at the tap
- Repeated lockouts or fault codes logged during hot water operation
Before you order
- Confirm the model and serial number on the boiler data badge match one of the CAM 5 Combi variants listed above
- Check the number on the existing thermostat against 87161078730, 1021121 or EL00236 before ordering
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | DHW thermostat |
|---|
Compliance
| Manufacturer part number (MPN) | 87161078730 |
|---|---|
| Barcode / EAN | 4010009252412 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | EL00236, 1021121 |
| Previous numbers | EL00236 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER CAM 5 COMBI 70 | — | — | — | |
| WORCESTER CAM 5 COMBI 90 | — | — | — | |
| WORCESTER CAM 5 COMBI 90 EXTERNAL | — | — | — | |
| WORCESTER WORCESTER CAM 5 COMBI 55 | — | — | — | |
| WORCESTER WORCESTER CAM 5 COMBI 70 | — | — | — | |
| WORCESTER WORCESTER CAM 5 COMBI 90 | — | — | — | |
| WORCESTER WORCESTER CAM 5 COMBI 90 EXTERNAL | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
