Worcester Bosch

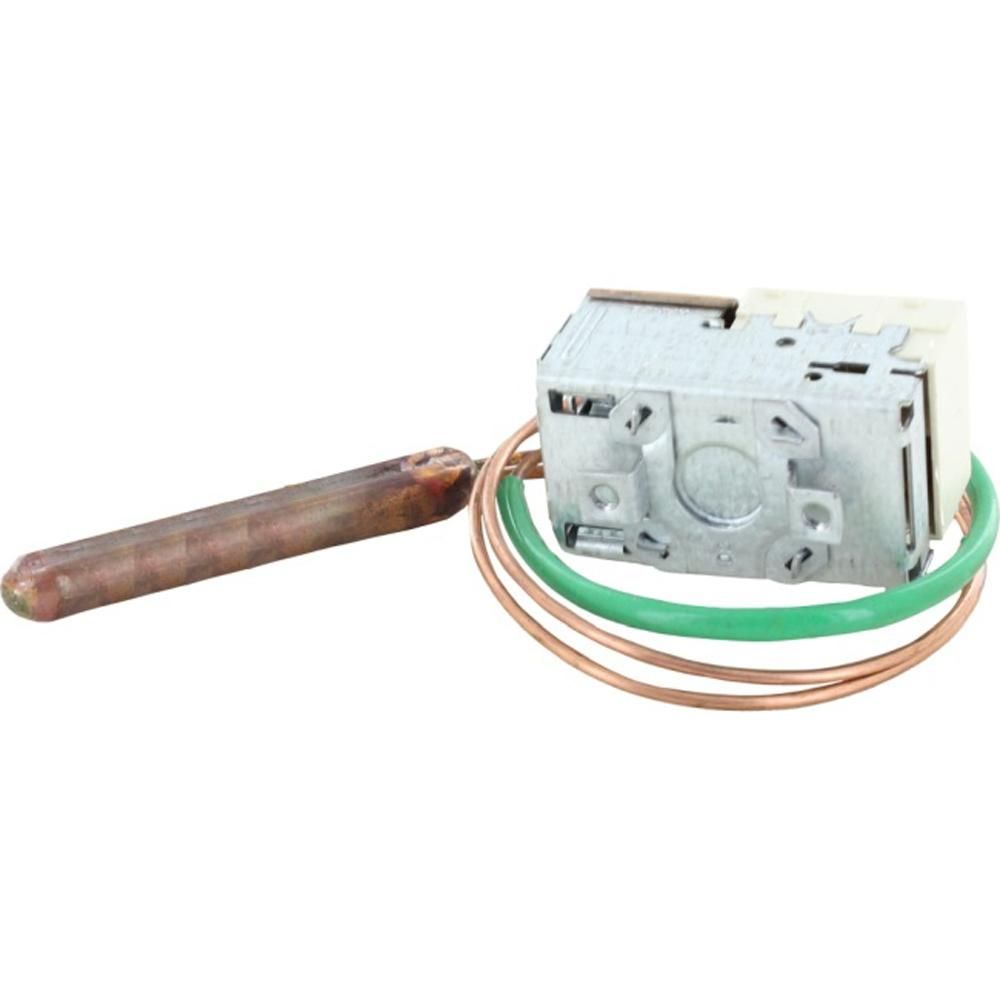

Worcester Bosch Thermostat Control DHW 87161076370
Worcester Bosch DHW thermostat control, part 87161076370, for Greenstar Heatslave appliances. Regulates domestic hot water temperature.
At a glance
- Part type: Thermostat control, DHW
- Also known as 1015223
£53.24
£44.37 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161076370 is a domestic hot water (DHW) thermostat control supplied for appliances in the Greenstar Heatslave range. It monitors and regulates the stored hot water temperature, feeding that reading back to the appliance control so the burner and diverter sequence respond correctly. The result is stable hot water delivery and efficient, safe running of the appliance.
Signs this part needs replacing
- Domestic hot water runs hot then cold, or never reaches the set temperature
- Hot water temperature drifts away from the value set on the appliance control
- The appliance fails to fire on a hot water demand despite the tap or outlet calling for it
- Fault codes or lockouts relating to the DHW sensor or thermostat circuit appear on the display
- Resistance readings at the thermostat fall outside the expected range when tested with a multimeter
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the same thermostat body is used across several Heatslave variants
- Check the existing part number on the component being removed and cross-reference it with 1015223
- Inspect the thermostat pocket and any sealing washer or O-ring at the same time, as these are disturbed during removal
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161076370 |
|---|---|
| Barcode / EAN | 4010009247173 |
| Commodity code | 9032 10 20 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1015223 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 12/18 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 18/25 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE EXTERNAL 25/32 | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 12/18 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 18/25 INTERNAL | — | — | — | |
| WORCESTER GREENSTAR HEATSLAVE HE 25/32 INTERNAL | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 EXTERNAL | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 12/18 OSO | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 18/25 EXTERNAL | — | — | — | |
| WORCESTER WORCESTER GREENSTAR HEATSLAVE 18/25 OSO | — | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR HEATSLAVE EXTERNAL 12/18, GREENSTAR HEATSLAVE EXTERNAL 18/25, GREENSTAR HEATSLAVE EXTERNAL 25/32
manualmanualWORCESTER appliance manual — GREENSTAR HEATSLAVE HE 12/18 INTERNAL, GREENSTAR HEATSLAVE HE 18/25 INTERNAL, GREENSTAR HEATSLAVE HE 25/32 INTERNAL
manualNo technical questions yet for this part.
