Worcester Bosch

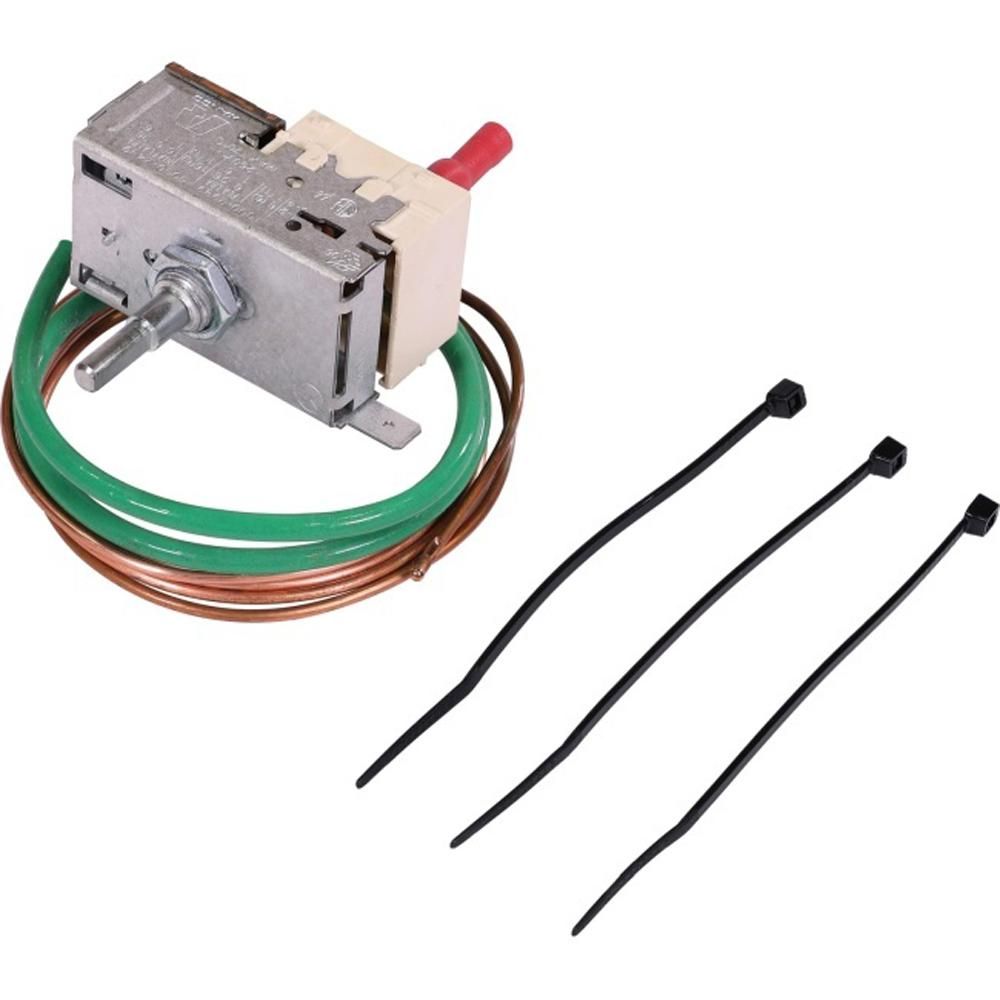

Worcester Bosch Thermostat Control CH 87161076210
At a glance
- Part type: Thermostats, thermistors and sensors
- Appliance family: Greenstar Camray oil boilers
- Also known as WB87161076210, 1015211
Showing prices
£50.54
£42.12 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161076210 is a central heating thermostat control supplied as a spare for Worcester Bosch oil-fired appliances. It sits within the boiler's control circuit and regulates temperature so the appliance runs safely and efficiently, holding the heating output at the level demanded by the system. The part belongs to the Greenstar Camray family of oil boilers and their system variants.
Signs this part needs replacing
- The boiler fails to respond to a call for heat from the programmer or room thermostat
- Heating runs continuously or the appliance cycles on and off without reaching the set temperature
- Flow temperature overshoots or falls short of the setting, giving uneven room temperatures
- Intermittent heating with the boiler locking out or dropping into a fault condition
- Erratic temperature control that cannot be corrected by adjusting the boiler thermostat dial
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering, as the same boiler range uses several control variants
- Check the part number on the existing thermostat control matches 87161076210, or one of the alternative numbers listed below
- Isolate the electrical supply and follow the manufacturer's wiring diagram when fitting, as incorrect connection can damage the control board
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161076210 |
|---|---|
| Barcode / EAN | 4010009275459 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Thermostats |
| Alternative numbers | WB87161076210, 1015211 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR CAMRAY 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY 25/32 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM 25/32 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 12/18 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 18/25 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY SYSTEM UTILITY 25/32 | — | — | — | |
| WORCESTER GREENSTAR CAMRAY UTILITY 12/18 | — | — | — |
Showing 10 of 61 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR CAMRAY 12/18, GREENSTAR CAMRAY 18/25, GREENSTAR CAMRAY 25/32, GREENSTAR CAMRAY SYSTEM 12/18, GREENSTAR CAMRAY SYSTEM 18/25, GREENSTAR CAMRAY SYSTEM 25/32
manualmanualWORCESTER appliance manual — GREENSTAR CAMRAY SYSTEM UTILITY 12/18, GREENSTAR CAMRAY SYSTEM UTILITY 18/25, GREENSTAR CAMRAY SYSTEM UTILITY 25/32, GREENSTAR CAMRAY UTILITY 12/18, GREENSTAR CAMRAY UTILITY 18/25, GREENSTAR CAMRAY UTILITY 25/32
manualmanualWORCESTER appliance manual — GREENSTAR DANESMOOR 12/18 ErP, GREENSTAR DANESMOOR 18/25 ErP, GREENSTAR DANESMOOR 25/32 ErP, GREENSTAR DANESMOOR SYSTEM 12/18 ErP, GREENSTAR DANESMOOR SYSTEM 18/25 ErP, GREENSTAR DANESMOOR SYSTEM 25/32 ErP
manualmanualWORCESTER appliance manual — GREENSTAR DANESMOOR HE 18/25 OOO
manualmanualWORCESTER appliance manual — GREENSTAR DANESMOOR HE 18/25-OOO-GB UTLITY
manualmanualWORCESTER appliance manual — GREENSTAR DANESMOOR HE 32/50-OOO-GB UTLITY, GREENSTAR DANESMOOR HE 50/70-OOO-GB UTLITY
manualmanualWORCESTER appliance manual — GREENSTAR DANESMOOR SYSTEM UTILITY 12/18 ErP, GREENSTAR DANESMOOR SYSTEM UTILITY 18/25 ErP, GREENSTAR DANESMOOR SYSTEM UTILITY 25/32 ErP, GREENSTAR DANESMOOR UTILITY 12/18 ErP, GREENSTAR DANESMOOR UTILITY 18/25 ErP, GREENSTAR DANESMOOR UTILITY 25/32 ErP
manualmanualWORCESTER appliance manual — GREENSTAR HEATSLAVE EXTERNAL 12/18, GREENSTAR HEATSLAVE EXTERNAL 18/25, GREENSTAR HEATSLAVE EXTERNAL 25/32
manualmanualWORCESTER appliance manual — GREENSTAR HEATSLAVE HE 12/18 INTERNAL, GREENSTAR HEATSLAVE HE 18/25 INTERNAL, GREENSTAR HEATSLAVE HE 25/32 INTERNAL
