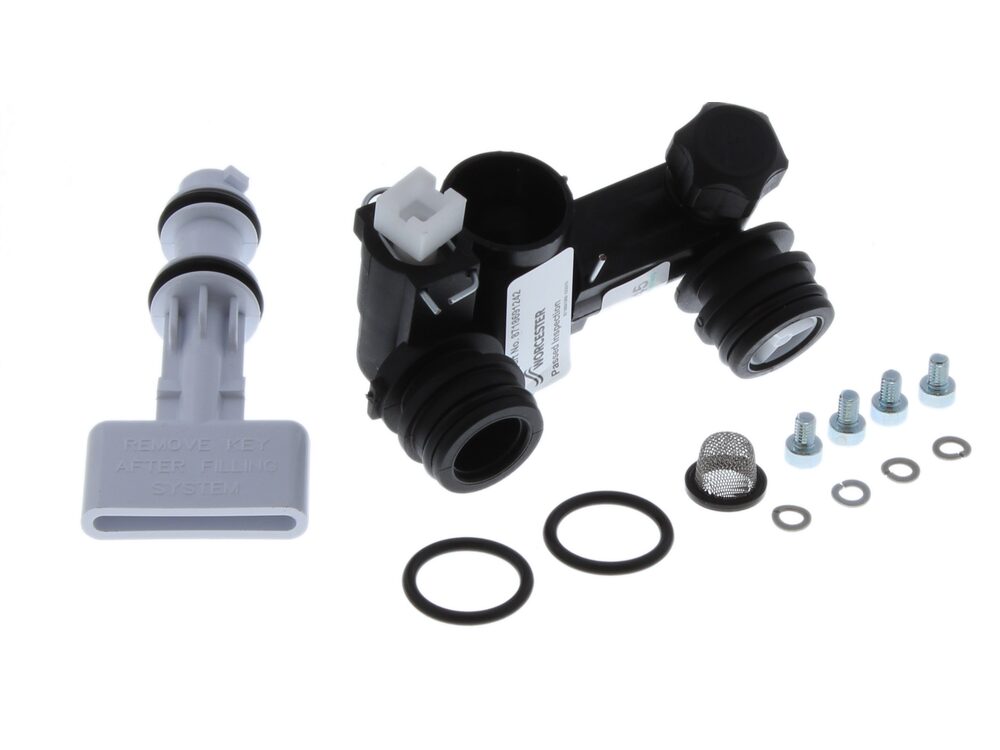

Worcester Bosch Filling Loop CDi 87161073030
Worcester Bosch CDi filling loop, part 87161073030, used to top up central heating system pressure on compatible Worcester Bosch models.
At a glance
- Part type: Filling loop (filling device)
- Also known as 1015147
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£71.28
£59.40 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch CDi filling loop is a spare part used on central heating systems to top up system water pressure by hand. It is manufactured by Worcester Bosch and is listed against the CDi, Si and Junior appliance families shown in the compatibility list below. When system pressure drops below the level the boiler needs, the loop provides a controlled connection between the mains cold water supply and the heating circuit so water can be added until the pressure gauge reads correctly.
Signs this part needs replacing
- Boiler pressure falls repeatedly and the system needs topping up often
- Water is visible around the filling loop connections or valve body
- The valve does not close fully after filling, so pressure keeps rising
- The loop key or valve spindle is damaged, rounded or seized
- System pressure does not rise when the loop is opened
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list
- Confirm the part number on the existing component matches 87161073030 or one of the earlier numbers listed
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Filling Loops |
|---|
Compliance
| Manufacturer part number (MPN) | 87161073030 |
|---|---|
| GC number | H32-144 |
| Barcode / EAN | 4010009970194 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | WB87161073030, 8-716-104-592-0, 1015147 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 SI II RSF NG | 47-311-65 | 47-311-65 | — | — |
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28 SI II RSF NG | 47-311-67 | 47-311-67 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI LPG | 47-406-03 | 47-406-03 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI NG | 47-406-02 | 47-406-02 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI LPG | 47-406-05 | 47-406-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI NG | 47-406-04 | 47-406-04 | — | — |
Showing 10 of 148 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — 24 SI II RSF NG (GC 47-311-65), 28 SI II RSF NG (GC 47-311-67)
manualmanualWORCESTER appliance manual — 24i JUNIOR RSF LPG (GC 47-311-71), 24i JUNIOR RSF NG (GC 47-311-69), 28i JUNIOR RSF NG (FEB 2003) (GC 47-311-72), 28i JUNIOR RSF NG (MAY 2003) (GC 47-311-70)
manualmanualWORCESTER appliance manual — BRITISH GAS GREENSTAR 532/I COMBI LPG (GC 47-406-03), BRITISH GAS GREENSTAR 532/I COMBI NG (GC 47-406-02), BRITISH GAS GREENSTAR 537/I COMBI LPG (GC 47-406-05), BRITISH GAS GREENSTAR 537/I COMBI NG (GC 47-406-04), BRITISH GAS GREENSTAR 542/I COMBI LPG (GC 47-406-07), BRITISH GAS GREENSTAR 542/I COMBI NG (GC 47-406-06)
manualmanualWORCESTER appliance manual — BRITISH GAS RD628 RSF (GC 47-108-14)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25CDI EMS COMBI NG (GC 47-311-92), GREENSTAR 25CDI ENS COMBI LPG (GC 47-311-96), GREENSTAR 25CDI PRE EMS COMBI NG (GC 47-311-92), GREENSTAR 30CDI NEW EMS LPG (GC 47-311-97), GREENSTAR 30CDI NEW EMS NG (GC 47-311-93), GREENSTAR 30CDI OLD EMS LPG (GC 47-311-97), GREENSTAR 30CDI OLD EMS NG (GC 47-311-93), GREENSTAR 30CDI PRE EMS COMBI NG (GC 47-311-93), GREENSTAR 35CDI EMS LPG COMBI (GC 47-311-98), GREENSTAR 35CDI EMS NG COMBI (GC 47-311-94), GREENSTAR 35CDI PRE EMS NG COMBI (GC 47-311-94), GREENSTAR 40CDI EMS COMBI LPG (GC 47-406-01), GREENSTAR 40CDI EMS COMBI NG (GC 47-311-95)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMPACT LPG (GC 47-406-51), GREENSTAR 25SI COMPACT NG (GC 47-406-50), GREENSTAR 30 SI COMPACT LPG (GC 47-406-53), GREENSTAR 30 SI COMPACT NG (GC 47-406-52)
manualmanualWORCESTER appliance manual — GREENSTAR 25Si ErP COMPACT LPG (GC 47-407-74), GREENSTAR 25Si ErP COMPACT NG (GC 47-406-73), GREENSTAR 28Si ErP COMPACT, GREENSTAR 30Si ErP COMPACT LPG (GC 47-406-76), GREENSTAR 30Si ErP COMPACT NG (GC 47-406-75)
manualmanualWORCESTER appliance manual — GREENSTAR 25i ErP COMBI LPG (GC 47-406-61), GREENSTAR 25i ErP COMBI NG (GC 47-406-60), GREENSTAR 30i ErP COMBI LPG (GC 47-406-63), GREENSTAR 30i ErP COMBI NG (GC 47-406-62)
manualmanualWORCESTER appliance manual — GREENSTAR 27CDI EMS COMBI LPG (GC 47-406-13), GREENSTAR 27CDI EMS COMBI NG (GC 47-406-12), GREENSTAR 37CDI EMS COMBI LPG (GC 47-406-09), GREENSTAR 37CDI EMS COMBI NG (GC 47-406-08), GREENSTAR 42CDI CLASSIC COMBI LPG (GC 47-406-11), GREENSTAR 42CDI CLASSIC COMBI NG (GC 47-406-10)
manualmanualWORCESTER appliance manual — GREENSTAR 28 CDI COMPACT LPG (GC 47-406-45), GREENSTAR 28 CDI COMPACT NG (GC 47-406-44)
manualmanualWORCESTER appliance manual — GREENSTAR 28CDi ErP COMPACT LPG (GC 47-406-78), GREENSTAR 28CDi ErP COMPACT NG (GC 47-406-77), GREENSTAR 32CDi ErP COMPACT LPG (GC 47-406-80), GREENSTAR 32CDi ErP COMPACT NG (GC 47-406-79), GREENSTAR 36CDi ErP COMPACT LPG (GC 47-406-82), GREENSTAR 36CDi ErP COMPACT NG (GC 47-406-81)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI CLASSIC COMBI LPG (GC 47-406-35), GREENSTAR 29CDI CLASSIC COMBI NG (GC 47-406-34), GREENSTAR 34CDI CLASSIC COMBI LPG (GC 47-406-37), GREENSTAR 34CDI CLASSIC COMBI NG (GC 47-406-36), GREENSTAR 38CDI CLASSIC COMBI LPG (GC 47-406-39), GREENSTAR 38CDI CLASSIC COMBI NG (GC 47-406-38)
manualmanualWORCESTER appliance manual — GREENSTAR 32CDI COMPACT LPG (GC 47-406-47), GREENSTAR 32CDI COMPACT NG (GC 47-406-46), GREENSTAR 36CDI COMPACT LPG (GC 47-406-49), GREENSTAR 36CDI COMPACT NG (GC 47-406-48)
