Worcester Bosch

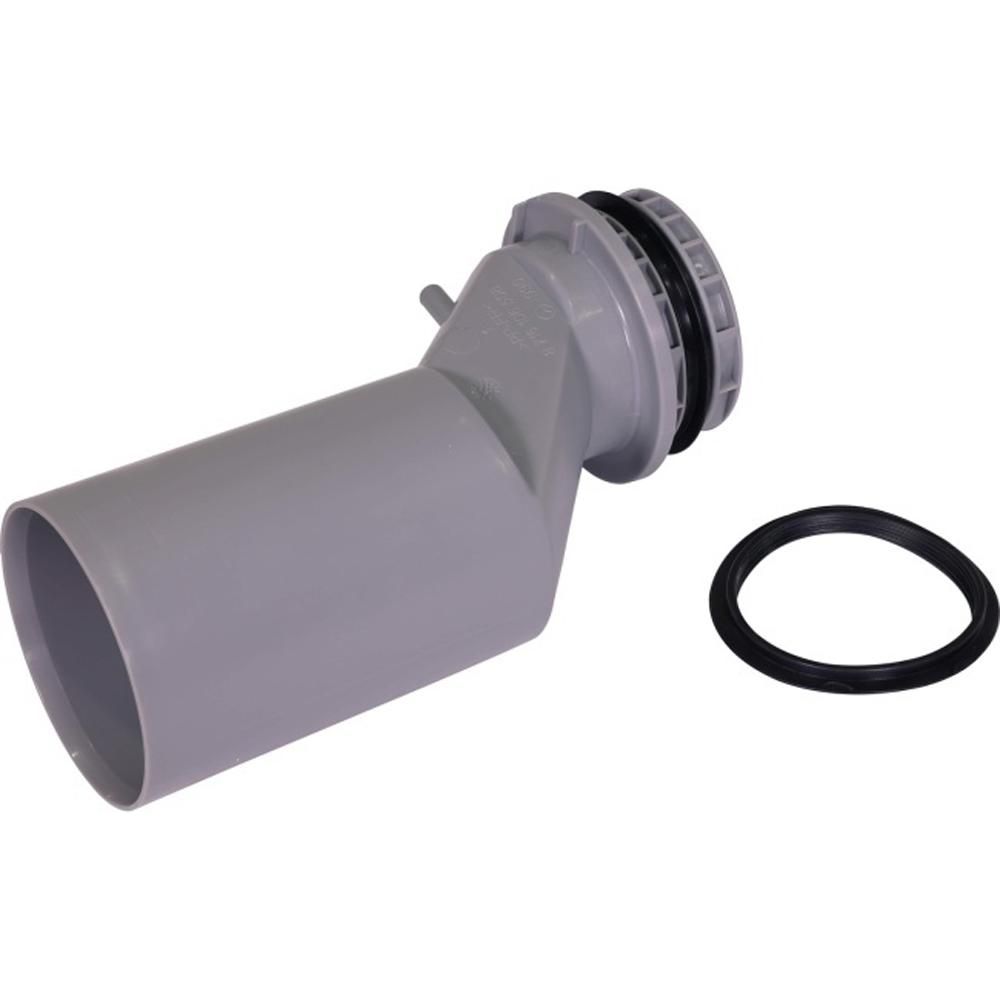

Worcester Bosch Flue Tube Assembly Lower 87161069400
Worcester Bosch 87161069400 lower flue tube assembly for Greenstar gas boilers, carrying flue gases from the appliance into the flue run.
At a glance
- Part type: Flue assembly component (lower flue tube)
- Also known as 1021033
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£16.33
£13.61 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161069400 is the lower flue tube from the flue assembly of a Worcester Bosch Greenstar gas boiler. It forms the lower section of the flue run, taking the products of combustion away from the heat exchanger and into the rest of the flue system. It is a serviceable component, so it can be replaced on its own rather than renewing the complete flue assembly.
Signs this part needs replacing
- Visible corrosion, pitting or staining on the flue tube surface
- Condensate tracking or water marks around the flue joint or lower flue section
- Discolouration or heat damage at the tube connection
- Boiler locking out or reporting a flue-related fault code
- Flue readings outside the expected range during a service or combustion analysis
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct flue tube for the model.
- Confirm the alternative number 1021033 if you are matching against an older parts reference.
- Inspect the flue seals and gaskets at the joint while the flue is open, and renew them if they are compressed or perished.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flue Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161069400 |
|---|---|
| GC number | H03-722 |
| Barcode / EAN | 4010009867135 |
| Commodity code | 8403 90 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1021033 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ LPG | 41-406-69 | 41-406-69 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ NG | 41-406-75 | 41-406-75 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
Showing 10 of 52 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP+ LPG (GC 41-406-69), GREENSTAR 12Ri ErP+ NG (GC 41-406-75), GREENSTAR 15Ri ErP+ LPG (GC 41-406-70), GREENSTAR 15Ri ErP+ NG (GC 41-406-76), GREENSTAR 18Ri ErP+ LPG (GC 41-406-71), GREENSTAR 18Ri ErP+ NG (GC 41-406-77), GREENSTAR 21Ri ErP+ LPG (GC 41-406-72), GREENSTAR 21Ri ErP+ NG (GC 41-406-78), GREENSTAR 24Ri ErP+ LPG (GC 41-406-73), GREENSTAR 24Ri ErP+ NG (GC 41-406-79), GREENSTAR 9Ri ErP+ LPG (GC 41-406-68), GREENSTAR 9Ri ErP+ NG (GC 41-406-74)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
