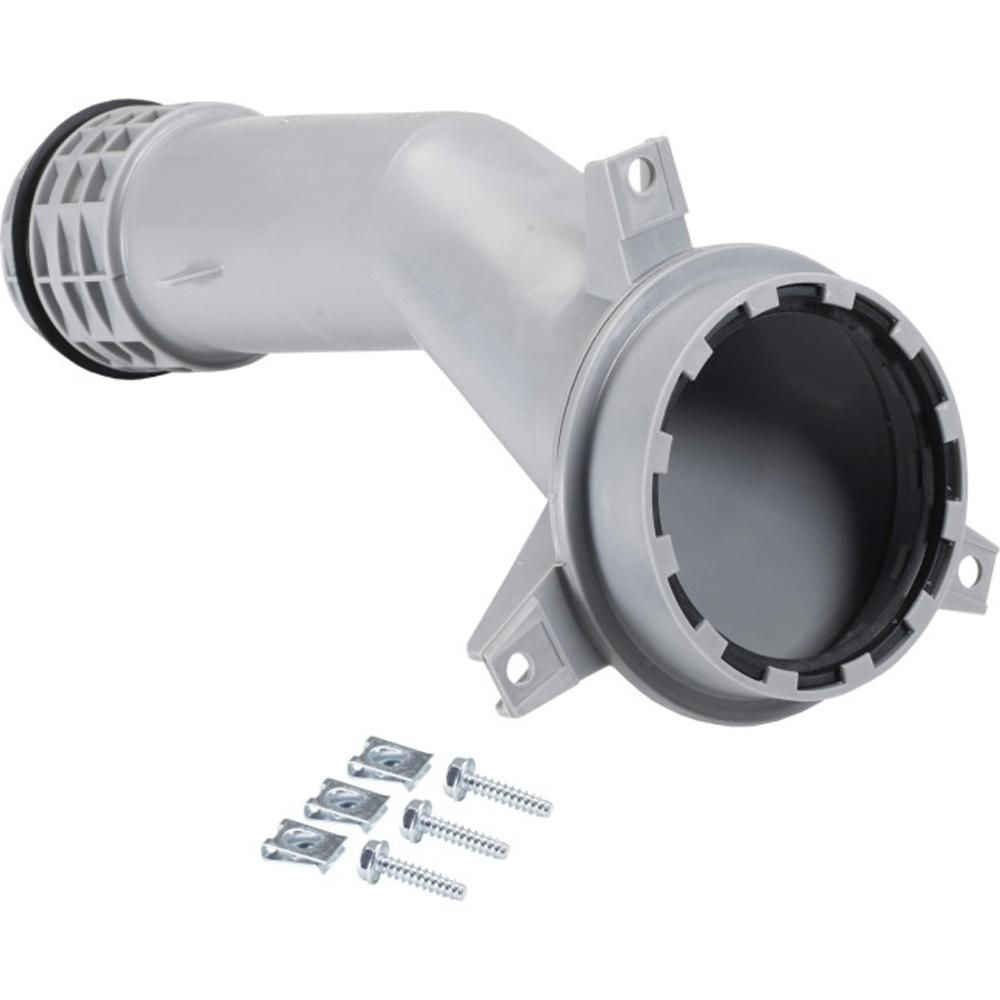

Worcester Bosch Flue Tube Assembly Upper 87161069390
Worcester Bosch upper flue tube assembly, part 87161069390, for Greenstar gas boilers; carries flue gases from the appliance to the terminal.
At a glance
- Part type: Flue assembly
- Appliance family: Greenstar
- Also known as 1015109
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£36.24
£30.20 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch upper flue tube assembly, part number 87161069390, is the upper section of the flue run on a Worcester Bosch Greenstar gas boiler. It forms part of the flue path that takes combustion products away from the heat exchanger and out through the terminal. The tube is supplied as a single assembly and is matched to the flue system used across the Greenstar range.
Signs this part needs replacing
- Visible corrosion, pitting or perforation on the flue tube surface
- Staining or discolouration around the flue joint, suggesting leakage of combustion products
- Condensate tracking or drips from the flue section
- Boiler lockout or flue-related fault codes that persist after reset
- Discolouration or heat damage to nearby components from a failing flue path
Before you order
- Check the GC number and serial plate on the appliance to confirm the flue variant before ordering.
- Confirm the alternative part number 1015109 against the existing component where the old part is still legible.
- Inspect the flue seals and gaskets at the joint and replace them where they are perished or compressed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flue Assembly |
|---|---|
| Appliance family | Greenstar |
Compliance
| Manufacturer part number (MPN) | 87161069390 |
|---|---|
| GC number | H03-869 |
| Barcode / EAN | 4010009867128 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1015109 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ LPG | 41-406-69 | 41-406-69 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ NG | 41-406-75 | 41-406-75 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
Showing 10 of 54 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP+ LPG (GC 41-406-69), GREENSTAR 12Ri ErP+ NG (GC 41-406-75), GREENSTAR 15Ri ErP+ LPG (GC 41-406-70), GREENSTAR 15Ri ErP+ NG (GC 41-406-76), GREENSTAR 18Ri ErP+ LPG (GC 41-406-71), GREENSTAR 18Ri ErP+ NG (GC 41-406-77), GREENSTAR 21Ri ErP+ LPG (GC 41-406-72), GREENSTAR 21Ri ErP+ NG (GC 41-406-78), GREENSTAR 24Ri ErP+ LPG (GC 41-406-73), GREENSTAR 24Ri ErP+ NG (GC 41-406-79), GREENSTAR 9Ri ErP+ LPG (GC 41-406-68), GREENSTAR 9Ri ErP+ NG (GC 41-406-74)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
