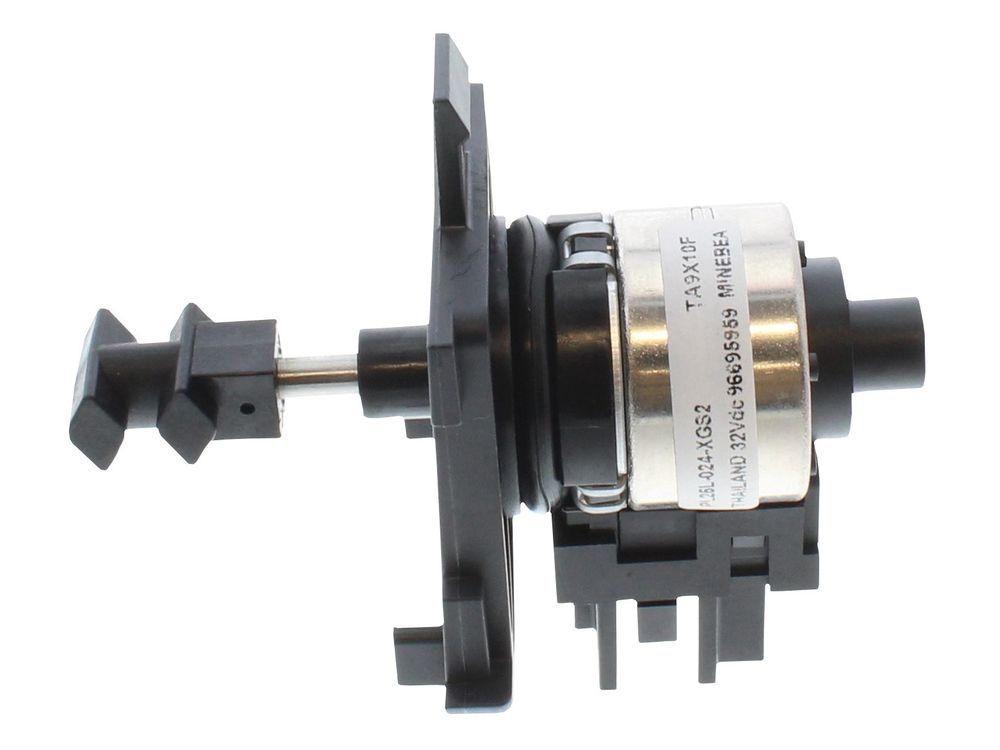

Worcester Bosch Diverter Valve Motor Black 87161068470
Diverter valve motor for Worcester Bosch Greenstar combi and system boilers, part 87161068470.
At a glance
- Part type: Diverter valve motor
- Also known as 1015101, N9122
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£78.00
£65.00 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161068470 is a diverter valve motor (also known as a diverter valve actuator) used in Worcester Bosch combi and system boilers. It controls the movement of the diverter valve, directing hot water to either the central heating circuit or the domestic hot water outlet. This component is part of the hydraulics assembly and is essential for switching between heating and hot water modes.
Signs this part needs replacing
- No hot water when a tap is turned on, but the heating works normally.
- Heating comes on when only hot water is demanded.
- The boiler displays a fault code related to the diverter valve or DHW.
- The diverter valve motor makes a continuous whirring or clicking noise.
- The valve is stuck in one position, causing either constant heating or no heating.
Before you order
- Check the GC number and appliance model against the compatibility list to confirm fitment.
- Confirm the part number on the original component matches 87161068470.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter Valve Motor |
|---|---|
| Colour | Black |
Compliance
| Manufacturer part number (MPN) | 87161068470 |
|---|---|
| GC number | H02-534 |
| Barcode / EAN | 4010009876182 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161068470, 1015101, N9122 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS 430/I | 41-311-80 | 41-311-80 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 430/I SYSTEM LPG | 41-311-81 | 41-311-81 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI LPG | 47-406-03 | 47-406-03 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI NG | 47-406-02 | 47-406-02 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI LPG | 47-406-05 | 47-406-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI NG | 47-406-04 | 47-406-04 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI LPG | 47-406-07 | 47-406-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI NG | 47-406-06 | 47-406-06 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 LPG | 47-406-55 | 47-406-55 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 NG | 47-406-54 | 47-406-54 | — | — |
Showing 10 of 117 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — BRITISH GAS 430/I (GC 41-311-80), BRITISH GAS GREENSTAR 430/I SYSTEM LPG (GC 41-311-81)
manualmanualWORCESTER appliance manual — BRITISH GAS GREENSTAR 532/I COMBI LPG (GC 47-406-03), BRITISH GAS GREENSTAR 532/I COMBI NG (GC 47-406-02), BRITISH GAS GREENSTAR 537/I COMBI LPG (GC 47-406-05), BRITISH GAS GREENSTAR 537/I COMBI NG (GC 47-406-04), BRITISH GAS GREENSTAR 542/I COMBI LPG (GC 47-406-07), BRITISH GAS GREENSTAR 542/I COMBI NG (GC 47-406-06)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25CDI EMS COMBI NG (GC 47-311-92), GREENSTAR 25CDI ENS COMBI LPG (GC 47-311-96), GREENSTAR 25CDI PRE EMS COMBI NG (GC 47-311-92), GREENSTAR 30CDI NEW EMS LPG (GC 47-311-97), GREENSTAR 30CDI NEW EMS NG (GC 47-311-93), GREENSTAR 30CDI OLD EMS LPG (GC 47-311-97), GREENSTAR 30CDI OLD EMS NG (GC 47-311-93), GREENSTAR 30CDI PRE EMS COMBI NG (GC 47-311-93), GREENSTAR 35CDI EMS LPG COMBI (GC 47-311-98), GREENSTAR 35CDI EMS NG COMBI (GC 47-311-94), GREENSTAR 35CDI PRE EMS NG COMBI (GC 47-311-94), GREENSTAR 40CDI EMS COMBI LPG (GC 47-406-01), GREENSTAR 40CDI EMS COMBI NG (GC 47-311-95), GREENSTAR 40CDI PRE EMS NG (GC 47-311-95)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualmanualWORCESTER appliance manual — GREENSTAR 27CDI EMS COMBI LPG (GC 47-406-13), GREENSTAR 27CDI EMS COMBI NG (GC 47-406-12), GREENSTAR 37CDI EMS COMBI LPG (GC 47-406-09), GREENSTAR 37CDI EMS COMBI NG (GC 47-406-08), GREENSTAR 42CDI CLASSIC COMBI LPG (GC 47-406-11), GREENSTAR 42CDI CLASSIC COMBI NG (GC 47-406-10)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI CLASSIC COMBI LPG (GC 47-406-35), GREENSTAR 29CDI CLASSIC COMBI NG (GC 47-406-34), GREENSTAR 34CDI CLASSIC COMBI LPG (GC 47-406-37), GREENSTAR 34CDI CLASSIC COMBI NG (GC 47-406-36), GREENSTAR 38CDI CLASSIC COMBI LPG (GC 47-406-39), GREENSTAR 38CDI CLASSIC COMBI NG (GC 47-406-38)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI ErP CLASSIC LPG (GC 47-406-66), GREENSTAR 29CDI ErP CLASSIC NG (GC 47-406-65), GREENSTAR 34CDI ErP CLASSIC LPG (GC 47-406-68), GREENSTAR 34CDI ErP CLASSIC NG (GC 47-406-67), GREENSTAR 38CDI ErP CLASSIC LPG (GC 47-406-70), GREENSTAR 38CDI ErP CLASSIC NG (GC 47-406-69), GREENSTAR 42CDI ErP CLASSIC LPG (GC 47-406-72), GREENSTAR 42CDI ErP CLASSIC NG (GC 47-406-71)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC LPG (GC 41-406-38), GREENSTAR 30CDI ErP CLASSIC NG (GC 41-406-37)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI SYSTEM LPG (GC 41-311-97), GREENSTAR 30CDI SYSTEM NG (GC 41-311-93)
manualmanualWORCESTER appliance manual — GREENSTAR 35CDI ErP CLASSIC SYSTEM LPG (GC 41-406-40), GREENSTAR 35CDI ErP CLASSIC SYSTEM NG (GC 41-406-39)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDI LPG (GC 47-406-26), GREENSTAR HIGHFLOW 440CDI NG (GC 47-406-24), GREENSTAR HIGHFLOW 550CDI LPG (GC 47-406-25), GREENSTAR HIGHFLOW 550CDI NG (GC 47-406-27)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7731600099) (GC 47-406-90), GREENSTAR HIGHFLOW 440CDi ErP NG (7731600098) (GC 47-406-89), GREENSTAR HIGHFLOW 550CDi ErP LPG (7731600101) (GC 47-406-92), GREENSTAR HIGHFLOW 550CDi ErP NG (7731600100) (GC 47-406-91)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) (GC 47-406-86), GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) (GC 47-406-85), GREENSTAR HIGHFLOW 550CDi ErP LPG (7738100592) (GC 47-406-88), GREENSTAR HIGHFLOW 550CDi ErP NG (7738100591) (GC 47-406-87)
manualNo technical questions yet for this part.
