Worcester Bosch

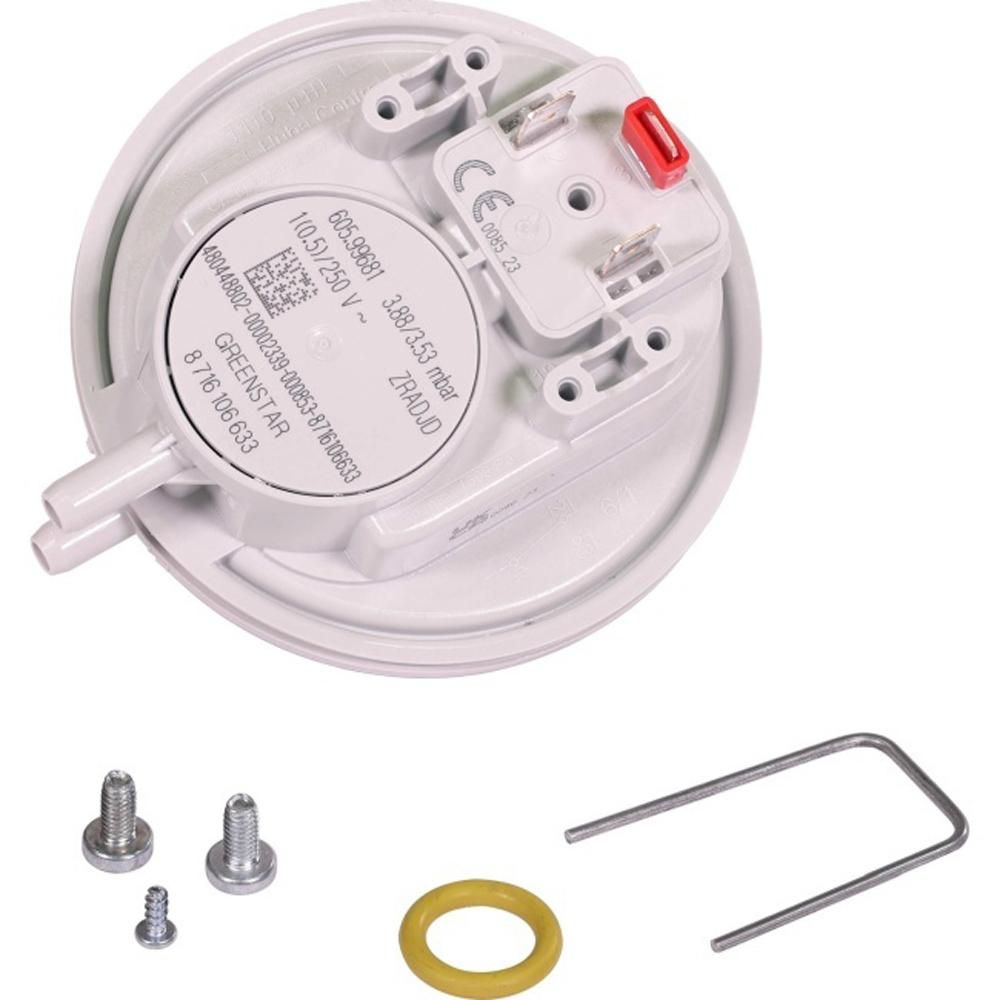

Worcester Bosch Air Pressure Switch 87161066330
At a glance
- Part type: Pressure switch (air pressure switch)
- Also known as WB87161066330, 99681, 1015003, N6566
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£48.66
£40.55 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161066330 is an air pressure switch used on Greenstar gas boilers. It monitors the pressure or flow of air through the combustion circuit and signals the control board that the fan is proving correctly before the boiler is allowed to light. A working switch keeps the ignition sequence dependable and shuts the appliance down safely when air flow is not established.
Signs this part needs replacing
- The boiler locks out or fails to fire after the fan has started running.
- Repeated lockouts on start-up that clear on reset but return on the next demand.
- The fan runs continuously without the ignition sequence completing.
- Intermittent fault codes relating to air flow, fan proving or pressure.
- The boiler fires erratically or drops out part-way through a heating or hot water demand.
Before you order
- Check the GC number and the appliance data plate to confirm this switch matches your model.
- Cross-check the numbers on the switch being removed against 1015003, N6566 and WB87161066330.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pressure Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161066330 |
|---|---|
| GC number | H26-543 |
| Barcode / EAN | 4010009974772 |
| Alternative numbers | WB87161066330, 99681, 1015003, N6566 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ LPG | 41-406-69 | 41-406-69 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ NG | 41-406-75 | 41-406-75 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
Showing 10 of 64 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP+ LPG (GC 41-406-69), GREENSTAR 12Ri ErP+ NG (GC 41-406-75), GREENSTAR 15Ri ErP+ LPG (GC 41-406-70), GREENSTAR 15Ri ErP+ NG (GC 41-406-76), GREENSTAR 18Ri ErP+ LPG (GC 41-406-71), GREENSTAR 18Ri ErP+ NG (GC 41-406-77), GREENSTAR 21Ri ErP+ LPG (GC 41-406-72), GREENSTAR 21Ri ErP+ NG (GC 41-406-78), GREENSTAR 24Ri ErP+ LPG (GC 41-406-73), GREENSTAR 24Ri ErP+ NG (GC 41-406-79), GREENSTAR 9Ri ErP+ LPG (GC 41-406-68), GREENSTAR 9Ri ErP+ NG (GC 41-406-74)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
