Worcester Bosch
Worcester Bosch Bracket Support 87161065210
Worcester Bosch 87161065210 bracket support for Greenstar i System boilers, part of the casing and mounting group. GC number H11-480.
At a glance
- Part type: Bracket support (brackets and clamps)
- Also known as 1014951
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£5.89
£4.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

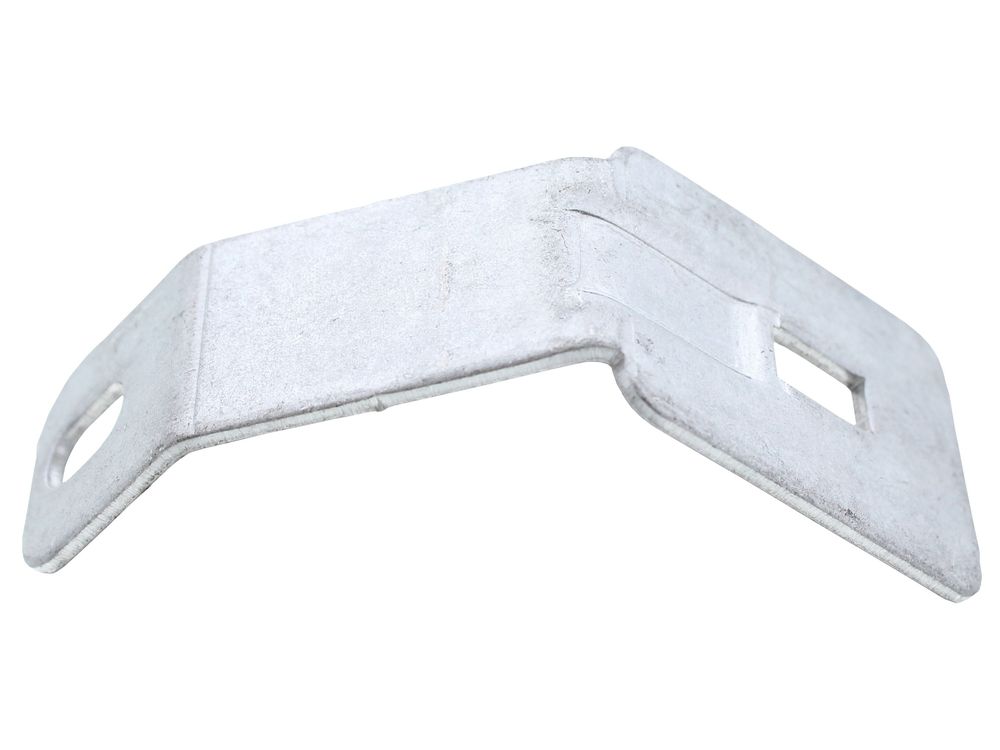

The Worcester Bosch 87161065210 is a bracket support belonging to the casing and mounting group of the Greenstar i System boiler range. It provides a fixed mounting point that holds the boiler casing and associated panels in their correct position on the appliance. As a casing and mounting component it is a serviceable item, replaced when the original bracket becomes distorted, corroded or fails to hold the casing securely.
Signs this part needs replacing
- Casing panels sitting proud of the boiler body or failing to line up with their fixings
- Visible corrosion, cracking or bending at the bracket
- Rattling or vibration coming from the casing area during operation
- Fixings that will not tighten or hold, suggesting the bracket mounting points have worn
- Bracket distorted after servicing, transport or impact
Before you order
- Check the GC number and the appliance serial plate to confirm the boiler model before ordering.
- The alternative part number 1014951 may be listed for this item; compare it against the number on the existing component.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | BRACKET SUPPORT |
|---|
Compliance
| Manufacturer part number (MPN) | 87161065210 |
|---|---|
| GC number | H11-480 |
| Barcode / EAN | 4010009972921 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1014951 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM LPG | 41-311-87 | 41-311-87 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM NG | 41-311-86 | 41-311-86 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 LPG | 47-406-55 | 47-406-55 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR MK5 NG | 47-406-54 | 47-406-54 | — | — |
| WORCESTER GREENSTAR 24I JUNIOR NG | 47-311-86 | 47-311-86 | — | — |
| WORCESTER GREENSTAR 24i JUNIOR LPG | 47-311-90 | 47-311-90 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
manualNo technical questions yet for this part.
