Worcester Bosch Return Manifold Sub Assembly 87161064420

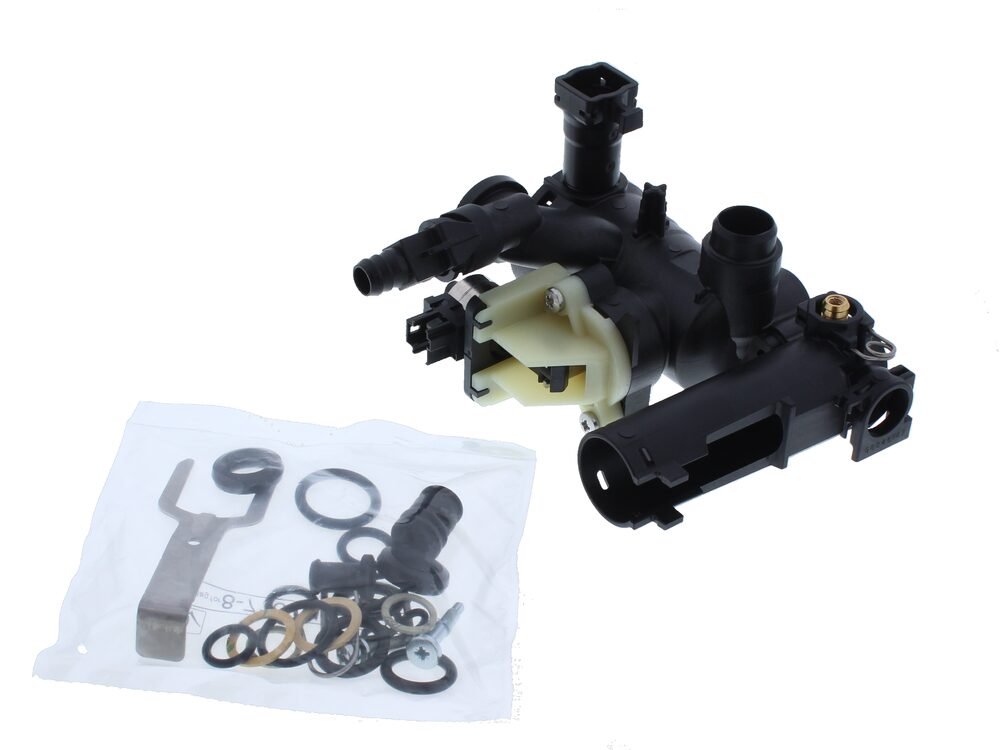

Worcester Bosch return manifold sub assembly 87161064420 for Greenstar boilers, carrying heated water from the pump around the heating circuit.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1014915, N5690-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£235.22
£196.02 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch Return Manifold Sub Assembly 87161064420 is a return unit used across the Worcester Bosch Greenstar boiler range. It forms the return side of the hydraulic circuit, carrying heated water from the pump around the heating system and back to the boiler for reheating. On combi models the pump sits ahead of the diverter valve, which allows circulation through both the domestic hot water and central heating circuits.
Signs this part needs replacing
- Radiators stay cold or the heating circuit fails to reach temperature while hot water continues to work
- The boiler does not switch correctly between domestic hot water and central heating demand
- Water weeping, staining or scale deposits around the manifold or pump housing
- The appliance locks out or reports a circulation-related fault
- Pump noise or noticeably reduced flow through the heating circuit
Before you order
- Check the GC number on the appliance data badge against the compatibility list below before ordering.
- Confirm the exact model and serial number, as hydraulic assemblies differ between boilers in the same family.
- Have a replacement gasket or seal kit to hand if existing seals are disturbed during removal.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Return Unit |
|---|
Compliance
| Manufacturer part number (MPN) | 87161064420 |
|---|---|
| GC number | H08-855 |
| Barcode / EAN | 4010009876069 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161064420, 1014915, N5690-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS 430/I | 41-311-80 | 41-311-80 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 430/I SYSTEM LPG | 41-311-81 | 41-311-81 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI LPG | 47-406-03 | 47-406-03 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI NG | 47-406-02 | 47-406-02 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI LPG | 47-406-05 | 47-406-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI NG | 47-406-04 | 47-406-04 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI LPG | 47-406-07 | 47-406-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI NG | 47-406-06 | 47-406-06 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
Showing 10 of 109 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
