Worcester Bosch By-Pass Pipe Assembly 87161064370

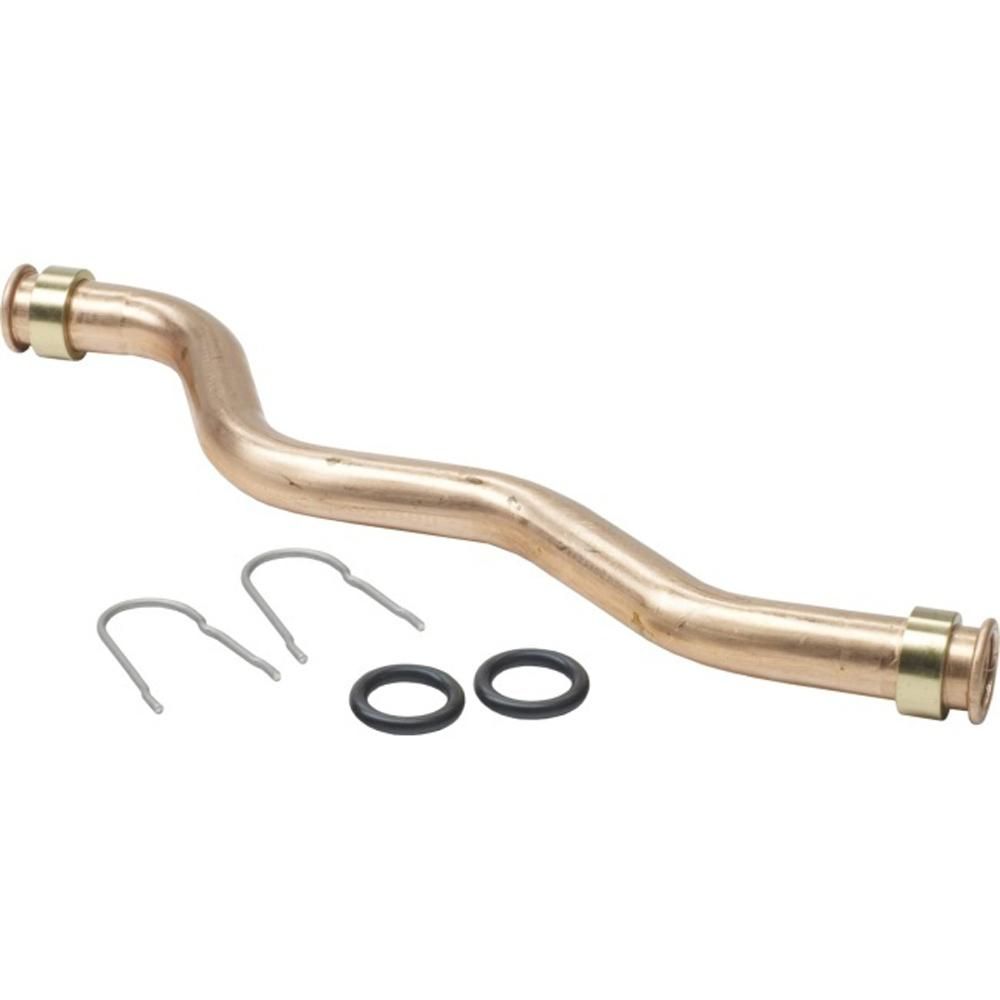

Worcester Bosch by-pass pipe assembly (87161064370) for Greenstar i and i ErP system boilers, forming part of the internal pipework circuit.
At a glance
- Part type: Hoses and pipes
- Also known as 1014909
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£35.45
£29.54 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The by-pass pipe assembly is a Worcester Bosch internal pipework component used in Greenstar system and combi appliances. It sits within the boiler's hydraulic circuit and provides the by-pass route that keeps a minimum flow through the heat exchanger when system demand falls away. The assembly is supplied as a complete pipe section with its formed bends and connections already in place, so it can be swapped as a single item rather than rebuilt from individual fittings.
Signs this part needs replacing
- Water weeping or staining around the pipe joints or compression connections inside the casing
- Visible corrosion, pitting or heavy scale build-up on the pipe surface
- Boiler short-cycling or overheating where the by-pass route is restricted or blocked
- Kettling or rushing noises from the pipework when the boiler modulates down
- Flow-related fault codes appearing after the heating load drops off
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering, as several Greenstar variants use different internal pipework.
- Confirm the part number 87161064370 or the alternative number 1014909 matches the item being replaced.
- Inspect the joint seals and washers on removal and replace them if they are compressed or perished.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161064370 |
|---|---|
| GC number | H10-089 |
| Barcode / EAN | 4010009876304 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1014909 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12i ErP SYSTEM LPG | 41-406-24 | 41-406-24 | — | — |
| WORCESTER GREENSTAR 12i ErP SYSTEM NG | 41-406-23 | 41-406-23 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15i ErP SYSTEM NG | 41-406-25 | 41-406-25 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM LPG | 41-311-87 | 41-311-87 | — | — |
| WORCESTER GREENSTAR 18I SYSTEM NG | 41-311-86 | 41-311-86 | — | — |
Showing 10 of 56 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
