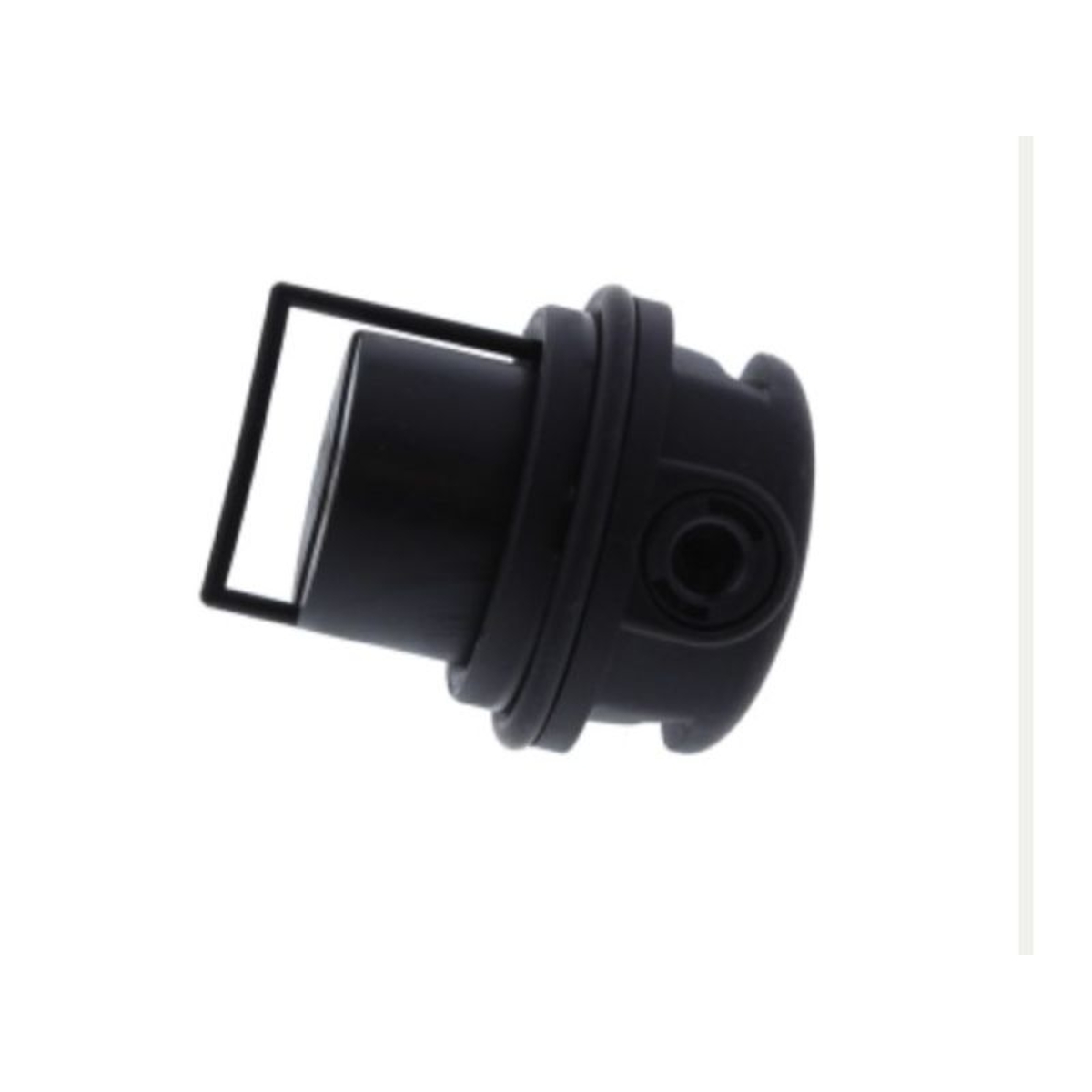

Worcester Bosch Automatic Air Vent Junior Series 87161061420
Float-operated automatic air vent for the pump section of Worcester Bosch Junior Series boilers, part 87161061420.
At a glance
- Part type: Automatic air vent
- Also known as 1014837
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£17.30
£14.42 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch automatic air vent, part 87161061420, is a float-operated air release valve fitted in the pump section of the Junior Series boiler range. It removes air that collects in the central heating circuit so water can circulate freely through the system. A float inside the body rises as the chamber fills and closes the vent; when air builds up and the water level drops, the float falls and the vent opens to discharge it.
Signs this part needs replacing
- Gurgling or air noise from the boiler or pump area
- Kettling, banging or rumbling as the boiler heats up
- Water weeping or dripping from the vent body
- Radiators heating unevenly, with cold spots at the top
- The vent failing to seal once the system is full and pressurised
Before you order
- Confirm the GC number on the appliance data badge matches one of those listed below.
- Check the existing vent against part number 87161061420 and alternative number 1014837.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Automatic Air Vents |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161061420 |
|---|---|
| GC number | H05-403 |
| Barcode / EAN | 4010009692492 |
| Commodity code | 8481 80 99 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1014837 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
| WORCESTER WORCESTER 24i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 24i JUNIOR RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF NATURAL GAS | — | — | — |
