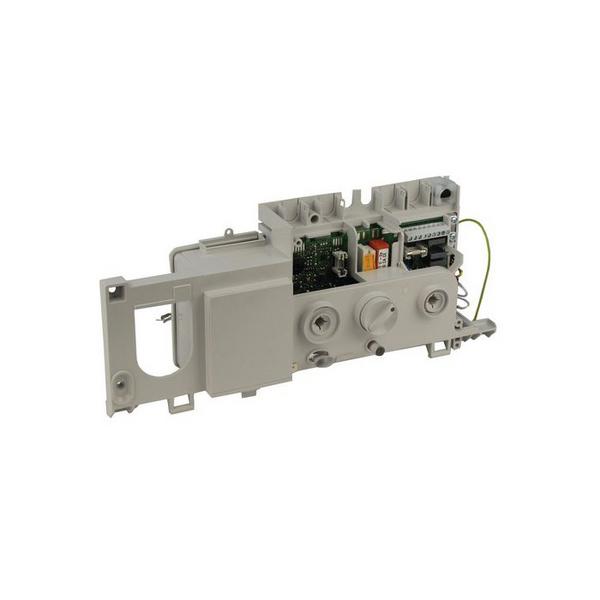

Worcester Bosch Control Box Assembly 87161056600
Worcester Bosch 87161056600 control box assembly for 24i and 28i Junior RSF boilers, carrying the control knobs, display and fault indicators.
At a glance
- Part type: control box assembly
- Appliance family: Junior RSF
- Also known as 1014695
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£344.00
£286.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The 87161056600 is a control box assembly manufactured by Worcester Bosch for its Junior RSF range of wall-mounted boilers. It forms the user interface section of the appliance, housing the control knobs and the digital display that the householder uses to switch the boiler on and off and to read fault lights and status indicators. It is the point at which the user's input is translated into a signal the boiler's control system can act on.
Signs this part needs replacing
- The boiler will not switch on or off from the front panel controls
- The digital display is blank, dim or showing incomplete characters
- Control knobs feel loose, spin without effect or fail to change the setting
- Fault or status lights no longer illuminate when the boiler locks out
- The boiler responds intermittently to panel input, or settings change on their own
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant for your boiler
- Confirm the existing control box carries part number 87161056600 or the alternative number 1014695 before ordering
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Control Box Assembly |
|---|---|
| Appliance family | Junior RSF |
Compliance
| Manufacturer part number (MPN) | 87161056600 |
|---|---|
| GC number | H05-449 |
| Barcode / EAN | 4010009680710 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1014695 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
| WORCESTER WORCESTER 24i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 24i JUNIOR RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF NATURAL GAS | — | — | — |
