Worcester Bosch

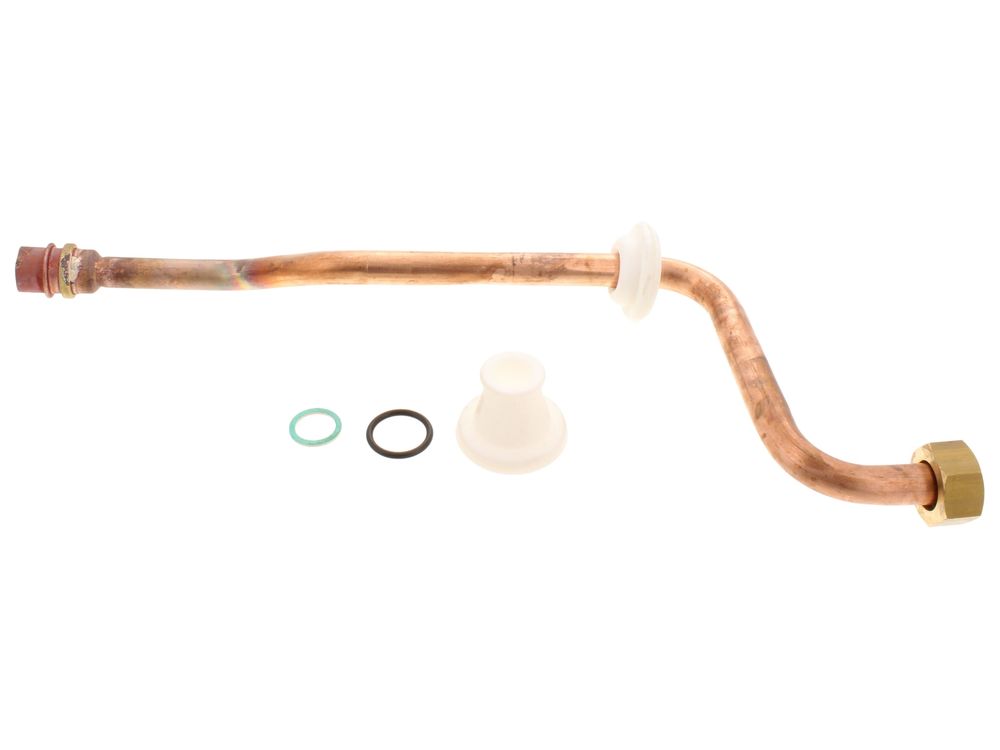

Worcester Bosch Pipe Assembly DHW 87161054790
DHW pipe assembly 87161054790 for Worcester Bosch 24I Junior RSF boilers in LPG and NG variants.
At a glance
- Part type: DHW pipe assembly
- Appliance family: 24I Junior RSF
- Also known as 1014611
£29.11
£24.26 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The DHW pipe assembly, part number 87161054790, is a Worcester Bosch component for the 24I Junior RSF boiler range. It forms part of the domestic hot water circuit within the appliance. It is supplied as a complete pipe assembly for the models listed below.
Signs this part needs replacing
- Visible water weeping or damp patches around the pipe assembly
- Corrosion, pitting or discolouration on the pipework
- Limescale or debris restricting domestic hot water flow
- Joint or seal failure causing pressure loss
Before you order
- Confirm your boiler is a Worcester 24I Junior RSF
- Check whether your appliance is LPG or NG, as both variants are listed
- Match the part number 87161054790 against the component being replaced
Compliance
| GC number | H05-283 |
|---|---|
| Barcode / EAN | 4010009680246 |
| Alternative numbers | 1014611 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
