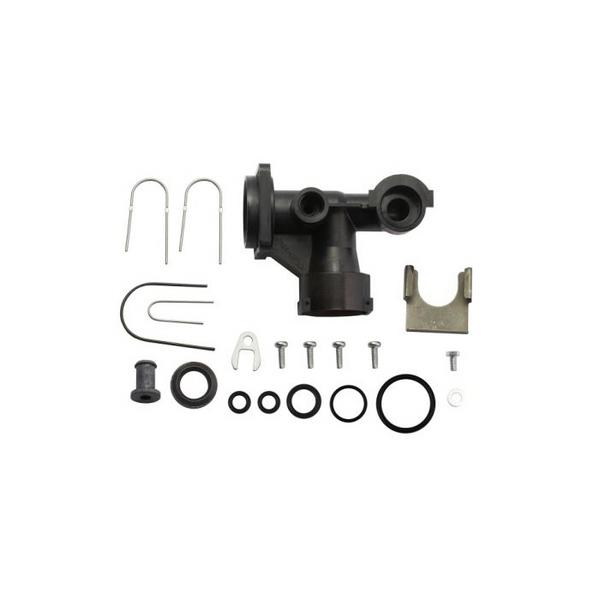

Worcester Bosch Flow Manifold 87161050930
Worcester Bosch flow manifold 87161050930, the diverter valve section for 24 CDI combi boilers, routing water between heating and hot water.
At a glance
- Part type: Flow manifold (diverter valve section)
- Also known as 1014439
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£25.36
£21.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch flow manifold 87161050930 is the manifold assembly built around the diverter valve section of the boiler's hydraulic block. The diverter valve is a directional water device found in combi boilers, and it routes heated water either to the central heating circuit or to the domestic hot water circuit serving the taps. This manifold carries that valve section and forms part of the waterway assembly on Worcester Bosch 24 CDI combi models.
Signs this part needs replacing
- No hot water at the taps while the central heating continues to run normally
- Domestic hot water runs hot then cold as the diverter fails to hold its position
- Radiators warm up when a hot tap is opened, or heating stops when hot water is drawn
- Water weeping from the manifold or diverter housing
- Boiler locking out or cycling repeatedly on a hot water demand
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list.
- Confirm the part number 87161050930 matches the manifold currently fitted to the boiler.
- Inspect the manifold seals and O-rings, as a seal kit is often needed when the assembly is disturbed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Manifolds |
|---|
Compliance
| Manufacturer part number (MPN) | 87161050930 |
|---|---|
| GC number | H35-200 |
| Barcode / EAN | 4010009831273 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161050930, 1014439 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 CDI BF NG | 47-311-29 | 47-311-29 | — | — |
| WORCESTER 24 CDI OF LPG | 47-311-33 | 47-311-33 | — | — |
| WORCESTER 24 CDI OF NG | 47-311-32 | 47-311-32 | — | — |
| WORCESTER 24 CDI RSF LPG | 47-311-31 | 47-311-31 | — | — |
| WORCESTER 24 CDI RSF NG | 47-311-30 | 47-311-30 | — | — |
| WORCESTER 26 CDI RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 26 CDI XTRA RSF LPG | 47-311-42 | 47-311-42 | — | — |
| WORCESTER 26 CDI XTRA RSF NG | 47-311-41 | 47-311-41 | — | — |
| WORCESTER 28 CDI RSF LPG | 47-311-35 | 47-311-35 | — | — |
| WORCESTER 28 CDI RSF NG | 47-311-34 | 47-311-34 | — | — |
Showing 10 of 23 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 CDI BF NG (GC 47-311-29)
manualmanualWORCESTER appliance manual — 24 CDI OF LPG (GC 47-311-33), 24 CDI OF NG (GC 47-311-32)
manualmanualWORCESTER appliance manual — 24 CDI RSF LPG (GC 47-311-31), 24 CDI RSF NG (GC 47-311-30)
manualmanualWORCESTER appliance manual — 26 CDI RSF NG (GC 47-311-41), 26 CDI XTRA RSF LPG (GC 47-311-42), 26 CDI XTRA RSF NG (GC 47-311-41)
manualmanualWORCESTER appliance manual — 28 CDI RSF LPG (GC 47-311-35), 28 CDI RSF NG (GC 47-311-34)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualNo technical questions yet for this part.
