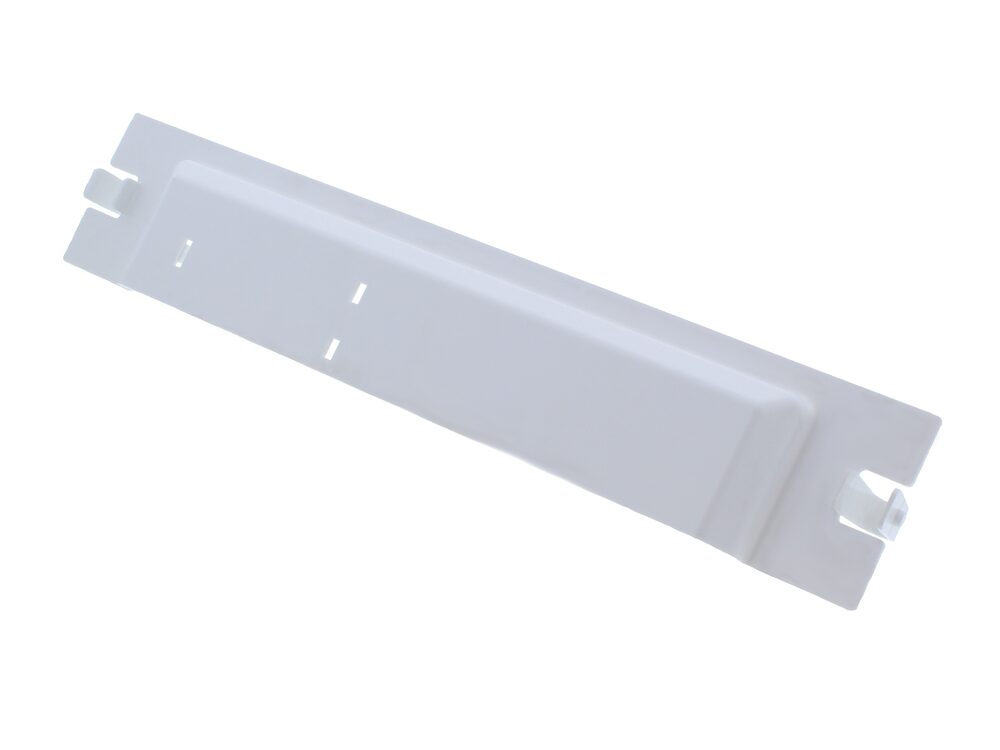

Worcester Bosch Bottom Panel 87161047420
Bottom panel casing part for Worcester Bosch gas boilers, manufacturer part number 87161047420.
At a glance
- Also known as 1014343
£45.26
£37.72 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch bottom panel, part number 87161047420, is a casing component that closes off the underside of the appliance. It forms part of the outer casing on the Worcester 24 SI II, 28 SI II, 24I Junior and 28I Junior RSF gas boilers and on the British Gas Rd628 RSF. Its role is to protect the lower section of the boiler and keep the casing complete.
Signs this part needs replacing
- Visible corrosion or rust across the panel surface
- Dents, cracks or deformation in the panel
- Panel no longer sits flush or is loose on the boiler
- Broken or missing retaining fixings
- Panel removed and not refitted, leaving the underside exposed
Before you order
- Confirm your boiler model and GC number against the fit list above
- Check the existing panel's fixings and clips are reusable
- Check the part number on the existing panel matches 87161047420
Compliance
| GC number | 796-012 |
|---|---|
| Barcode / EAN | 4010009831006 |
| Alternative numbers | 1014343 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24 SI II RSF NG | 47-311-65 | 47-311-65 | — | — |
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28 SI II RSF NG | 47-311-67 | 47-311-67 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
| WORCESTER BRITISH GAS RD628 RSF | 47-108-14 | 47-108-14 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24 SI II RSF NG (GC 47-311-65), 28 SI II RSF NG (GC 47-311-67)
manualmanualWORCESTER appliance manual — 24i JUNIOR RSF LPG (GC 47-311-71), 24i JUNIOR RSF NG (GC 47-311-69), 28i JUNIOR RSF NG (FEB 2003) (GC 47-311-72), 28i JUNIOR RSF NG (MAY 2003) (GC 47-311-70)
manualmanualWORCESTER appliance manual — BRITISH GAS RD628 RSF (GC 47-108-14)
