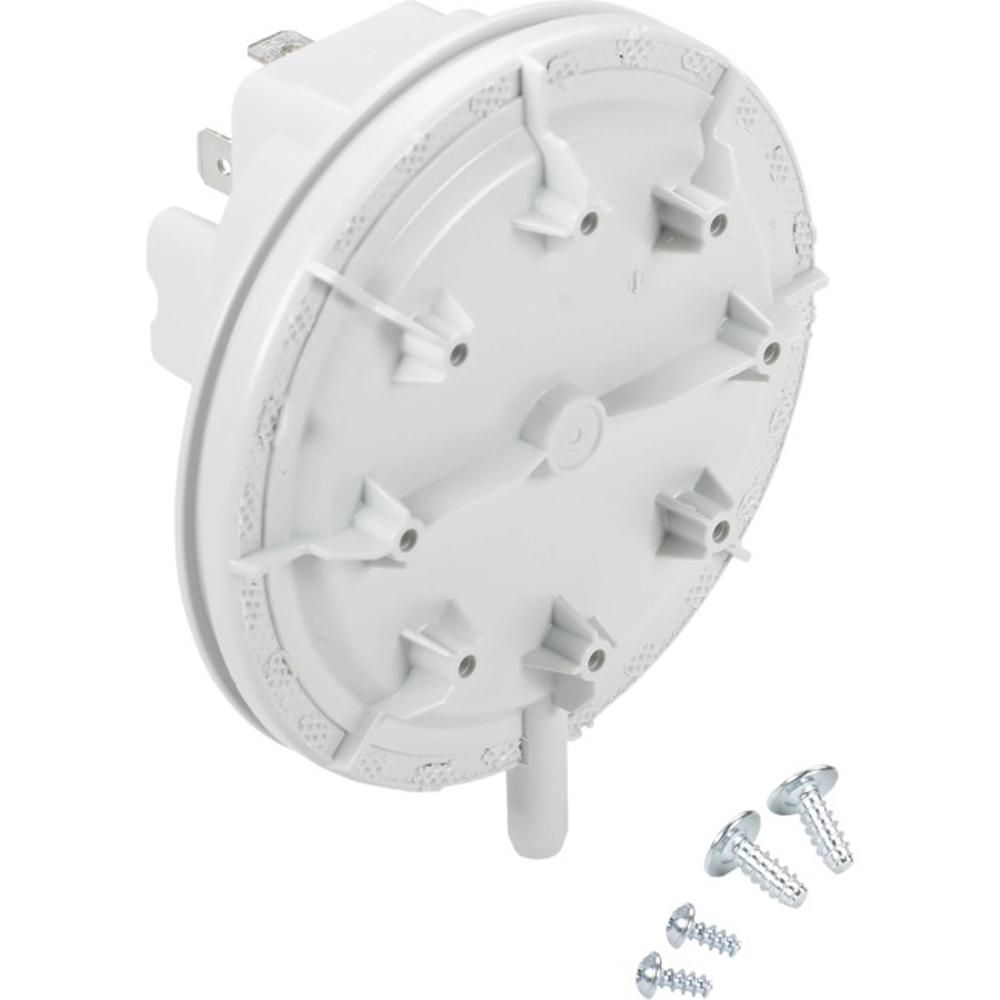

Worcester Bosch Air Pressure Switch Huba 87161044610
Worcester Bosch Huba air pressure switch, part 87161044610, for 24i and 28i Junior RSF and 35 CDI II RSF appliances; monitors fan and flue pressure.
At a glance
- Part type: Pressure switch (air pressure switch)
- Also known as 99575, 1014233, N0504
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£53.09
£44.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch air pressure switch is a Huba-type pressure sensing device used on the manufacturer's gas boiler range. It reads the pressure signal produced by the fan and flue system and confirms to the control board that air is moving correctly before and during a firing sequence. When the sensed pressure falls outside the expected range, the switch interrupts the sequence and the appliance locks out rather than allowing combustion to continue.
Signs this part needs replacing
- The boiler runs through its pre-purge but fails to fire, then goes to lockout.
- Repeated lockouts that clear on reset and return shortly afterwards.
- The fan runs but the appliance does not prove air flow, so ignition is never attempted.
- Intermittent operation, with the boiler cutting out mid-cycle without a clear pattern.
- Fault codes or diagnostic indications relating to fan or air pressure on the appliance display.
Before you order
- Check the appliance GC number and model against the compatibility list, as this switch is used across several Junior RSF and CDI II variants.
- Confirm the numbers on the existing switch match 1014233 or N0504 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pressure Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161044610 |
|---|---|
| GC number | E80-454 |
| Barcode / EAN | 4010009758938 |
| Alternative numbers | 99575, 1014233, N0504 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 24i JUNIOR RSF LPG | 47-311-71 | 47-311-71 | — | — |
| WORCESTER 24i JUNIOR RSF NG | 47-311-69 | 47-311-69 | — | — |
| WORCESTER 28i JUNIOR RSF NG (FEB 2003) | 47-311-72 | 47-311-72 | — | — |
| WORCESTER 28i JUNIOR RSF NG (MAY 2003) | 47-311-70 | 47-311-70 | — | — |
| WORCESTER 35 CDI II RSF LPG | 47-311-59 | 47-311-59 | — | — |
| WORCESTER 35 CDI II RSF NG | 47-311-58 | 47-311-58 | — | — |
| WORCESTER WORCESTER 24i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 24i JUNIOR RSF NATURAL GAS | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF LPG | — | — | — | |
| WORCESTER WORCESTER 28i JUNIOR RSF NATURAL GAS | — | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — 24i JUNIOR RSF LPG (GC 47-311-71), 24i JUNIOR RSF NG (GC 47-311-69), 28i JUNIOR RSF NG (FEB 2003) (GC 47-311-72), 28i JUNIOR RSF NG (MAY 2003) (GC 47-311-70)
manualmanualWORCESTER appliance manual — 35 CDI II RSF LPG (GC 47-311-59), 35 CDI II RSF NG (GC 47-311-58)
manualNo technical questions yet for this part.
