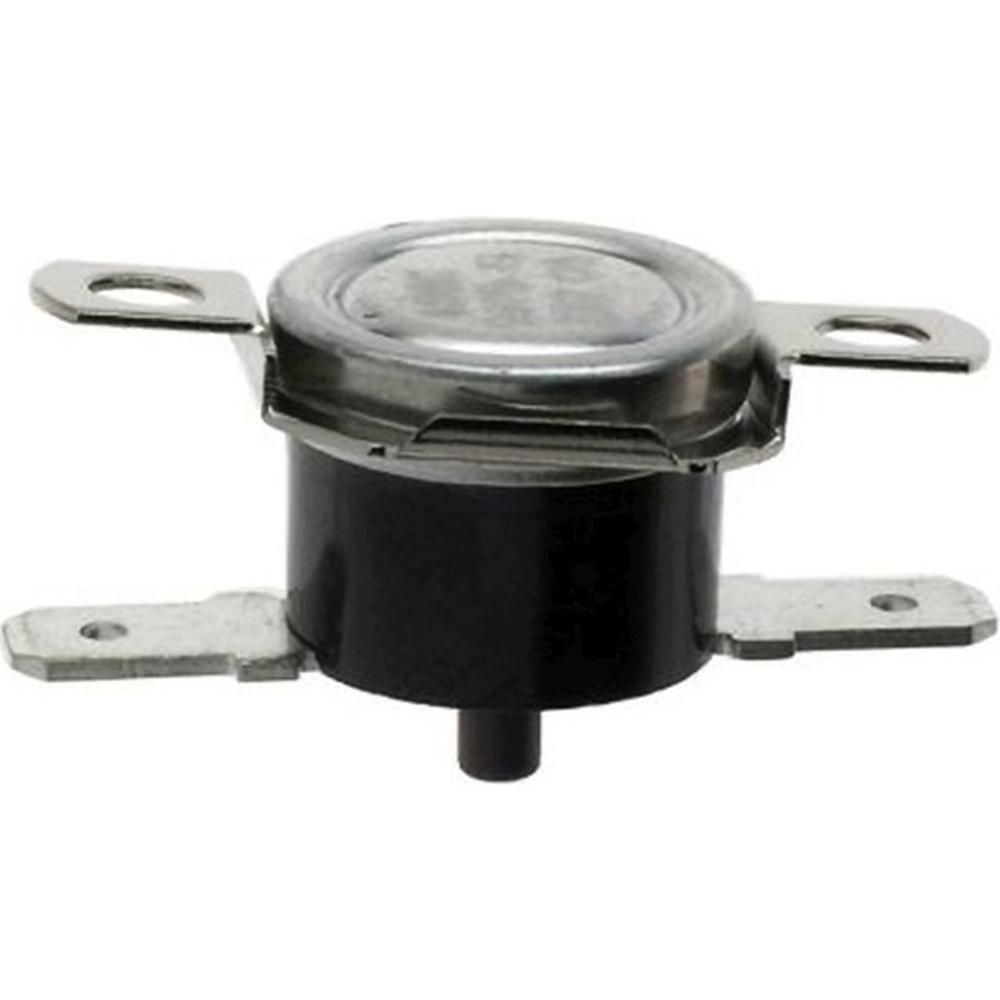

Worcester Bosch Overheat Thermostat Heat Bank 87161032170
Worcester Bosch Heat Bank overheat thermostat, part 87161032170, for Greenstar Highflow 440 models. A safety sensor that cuts the burner when stored water temperature rises too far.
At a glance
- Part type: Thermostats, Thermistors & Sensors
- Appliance family: Greenstar Highflow 440
- Also known as 1014097
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£10.45
£8.71 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch Heat Bank overheat thermostat is a safety temperature sensor used on the Heat Bank assembly of Greenstar Highflow appliances. It monitors the stored water temperature and interrupts the burner demand if that temperature climbs beyond the set limit, protecting the heat bank and the surrounding components from overheating. It is a Worcester Bosch spare supplied under part number 87161032170.
Signs this part needs replacing
- The appliance locks out or shuts down once the heat bank reaches temperature
- Repeated overheat faults that need a manual reset before the boiler will run again
- Heating or hot water output cutting out part way through a demand
- Stored water running noticeably hotter than the set point
- A fault indication on the appliance pointing to an overheat condition
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list below before ordering.
- Quote part number 87161032170, or the alternative number 1014097, when ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Appliance family | Greenstar Highflow 440 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161032170 |
|---|---|
| GC number | E82-394 |
| Barcode / EAN | 4010009750482 |
| Commodity code | 9032 10 20 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1014097 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR HIGHFLOW 440 | 47-311-82 | 47-311-82 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDI LPG | 47-406-26 | 47-406-26 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDI NG | 47-406-24 | 47-406-24 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP LPG (7731600099) | 47-406-90 | 47-406-90 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) | 47-406-86 | 47-406-86 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP NG (7731600098) | 47-406-89 | 47-406-89 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) | 47-406-85 | 47-406-85 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDI LPG | 47-406-25 | 47-406-25 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDI NG | 47-406-27 | 47-406-27 | — | — |
| WORCESTER GREENSTAR HIGHFLOW 550CDi ErP LPG (7731600101) | 47-406-92 | 47-406-92 | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
WORCESTER appliance manual — GREENSTAR HIGHFLOW 440 (GC 47-311-82)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDI LPG (GC 47-406-26), GREENSTAR HIGHFLOW 440CDI NG (GC 47-406-24), GREENSTAR HIGHFLOW 550CDI LPG (GC 47-406-25), GREENSTAR HIGHFLOW 550CDI NG (GC 47-406-27)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7731600099) (GC 47-406-90), GREENSTAR HIGHFLOW 440CDi ErP NG (7731600098) (GC 47-406-89), GREENSTAR HIGHFLOW 550CDi ErP LPG (7731600101) (GC 47-406-92), GREENSTAR HIGHFLOW 550CDi ErP NG (7731600100) (GC 47-406-91)
manualmanualWORCESTER appliance manual — GREENSTAR HIGHFLOW 440CDi ErP LPG (7738100590) (GC 47-406-86), GREENSTAR HIGHFLOW 440CDi ErP NG (7738100589) (GC 47-406-85), GREENSTAR HIGHFLOW 550CDi ErP LPG (7738100592) (GC 47-406-88), GREENSTAR HIGHFLOW 550CDi ErP NG (7738100591) (GC 47-406-87)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC BF NG (GC 47-311-62), HIGHFLOW 400 ELECTRONIC FSP NG (GC 47-311-64), HIGHFLOW 400 ELECTRONIC OF NG (GC 47-311-63)
manualmanualWORCESTER appliance manual — HIGHFLOW 400 ELECTRONIC FSN NG (GC 47-311-61)
