Worcester Bosch

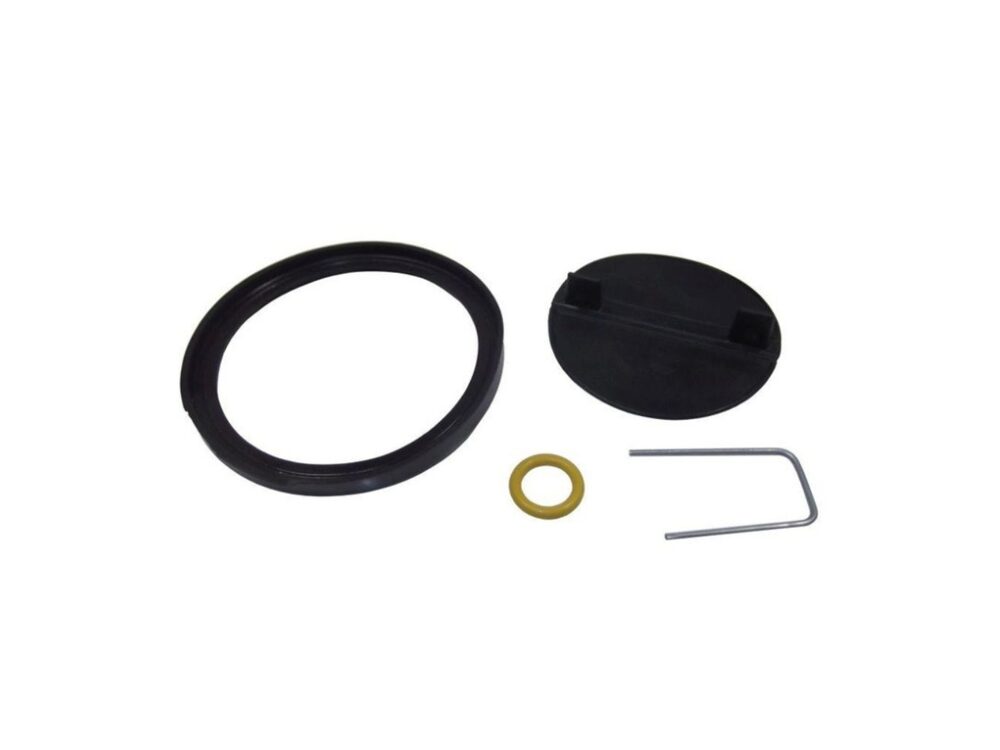

Worcester Bosch Membrane Kit 87155058250
Worcester Bosch diverter valve membrane kit, part 87155058250, for Greenstar combi boilers. GC number H04-638.
At a glance
- Part type: Membrane kit, hydraulics
- Also known as 1013139
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£15.08
£12.57 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch membrane kit is a hydraulic spare built around the diverter valve section of the boiler. The diverter valve appears only in combi boilers, where it routes heated water either to the central heating circuit or to the domestic hot water outlet. This kit supplies the membrane element used within that assembly under part number 87155058250.
Signs this part needs replacing
- Domestic hot water runs cold or only lukewarm while the heating circuit works normally
- Radiators begin to heat when a hot tap is opened
- Hot water temperature fluctuates or drops when a second outlet is used
- The diverter valve does not switch cleanly between heating and hot water modes
- Water weeping from the diverter valve housing or around the membrane cover
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Cross-reference the alternative numbers 1013139 and WB87155058250 where the original label is unreadable.
- Inspect the diverter valve housing for wear, as a gasket or seal may be needed alongside the membrane.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Membrane |
|---|
Compliance
| Manufacturer part number (MPN) | 87155058250 |
|---|---|
| GC number | H04-638 |
| Barcode / EAN | 4010009700012 |
| Commodity code | 8481 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87155058250, 1013139 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER GREENSTAR 12RI LPG | 41-311-64 | 41-311-64 | — | — |
| WORCESTER GREENSTAR 12RI NG | 41-311-63 | 41-311-63 | — | — |
| WORCESTER GREENSTAR 12Ri ErP LPG | 41-406-42 | 41-406-42 | — | — |
| WORCESTER GREENSTAR 12Ri ErP NG | 41-406-41 | 41-406-41 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ LPG | 41-406-69 | 41-406-69 | — | — |
| WORCESTER GREENSTAR 12Ri ErP+ NG | 41-406-75 | 41-406-75 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM LPG | 41-311-69 | 41-311-69 | — | — |
| WORCESTER GREENSTAR 12i SYSTEM NG | 41-311-67 | 41-311-67 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM LPG | 41-406-26 | 41-406-26 | — | — |
| WORCESTER GREENSTAR 15I SYSTEM NG | 41-311-84 | 41-311-84 | — | — |
Showing 10 of 54 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — GREENSTAR 12RI LPG (GC 41-311-64), GREENSTAR 12RI NG (GC 41-311-63), GREENSTAR 15RI CONVENTIONAL LPG (GC 41-311-76), GREENSTAR 15RI CONVENTIONAL NG (GC 41-311-75), GREENSTAR 18RI CONVENTIONAL LPG (GC 41-311-78), GREENSTAR 18RI CONVENTIONAL NG (GC 41-311-77), GREENSTAR 24RI LPG (GC 41-311-66), GREENSTAR 24RI NG (GC 41-311-65)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP LPG (GC 41-406-42), GREENSTAR 12Ri ErP NG (GC 41-406-41), GREENSTAR 15Ri ErP LPG (GC 41-406-44), GREENSTAR 15Ri ErP NG (GC 41-406-43), GREENSTAR 18Ri ErP LPG (GC 41-406-46), GREENSTAR 18Ri ErP NG (GC 41-406-45), GREENSTAR 24Ri ErP LPG (GC 41-406-48), GREENSTAR 24Ri ErP NG (GC 41-406-47)
manualmanualWORCESTER appliance manual — GREENSTAR 12Ri ErP+ LPG (GC 41-406-69), GREENSTAR 12Ri ErP+ NG (GC 41-406-75), GREENSTAR 15Ri ErP+ LPG (GC 41-406-70), GREENSTAR 15Ri ErP+ NG (GC 41-406-76), GREENSTAR 18Ri ErP+ LPG (GC 41-406-71), GREENSTAR 18Ri ErP+ NG (GC 41-406-77), GREENSTAR 21Ri ErP+ LPG (GC 41-406-72), GREENSTAR 21Ri ErP+ NG (GC 41-406-78), GREENSTAR 24Ri ErP+ LPG (GC 41-406-73), GREENSTAR 24Ri ErP+ NG (GC 41-406-79), GREENSTAR 9Ri ErP+ LPG (GC 41-406-68), GREENSTAR 9Ri ErP+ NG (GC 41-406-74)
manualmanualWORCESTER appliance manual — GREENSTAR 12i SYSTEM LPG (GC 41-311-69), GREENSTAR 12i SYSTEM NG (GC 41-311-67), GREENSTAR 15I SYSTEM LPG (GC 41-406-26), GREENSTAR 15I SYSTEM NG (GC 41-311-84), GREENSTAR 18I SYSTEM LPG (GC 41-311-87), GREENSTAR 18I SYSTEM NG (GC 41-311-86), GREENSTAR 24i SYSTEM LPG (GC 41-311-70), GREENSTAR 24i SYSTEM NG (GC 41-311-68)
manualmanualWORCESTER appliance manual — GREENSTAR 24I JUNIOR MK5 LPG (GC 47-406-55), GREENSTAR 24I JUNIOR MK5 NG (GC 47-406-54), GREENSTAR 24I JUNIOR NG (GC 47-311-86), GREENSTAR 24i JUNIOR LPG (GC 47-311-90), GREENSTAR 28I JUNIOR MK5 LPG (GC 47-406-57), GREENSTAR 28I JUNIOR MK5 NG (GC 47-406-56), GREENSTAR 28i JUNIOR LPG (GC 47-311-91), GREENSTAR 28i JUNIOR NG (GC 47-311-87)
manualmanualWORCESTER appliance manual — GREENSTAR 25SI COMBI LPG (GC 47-311-88), GREENSTAR 25SI COMBI NG (GC 47-311-84), GREENSTAR 30 SI COMBI LPG (GC 47-311-89), GREENSTAR 30 SI COMBI NG (GC 47-311-85)
