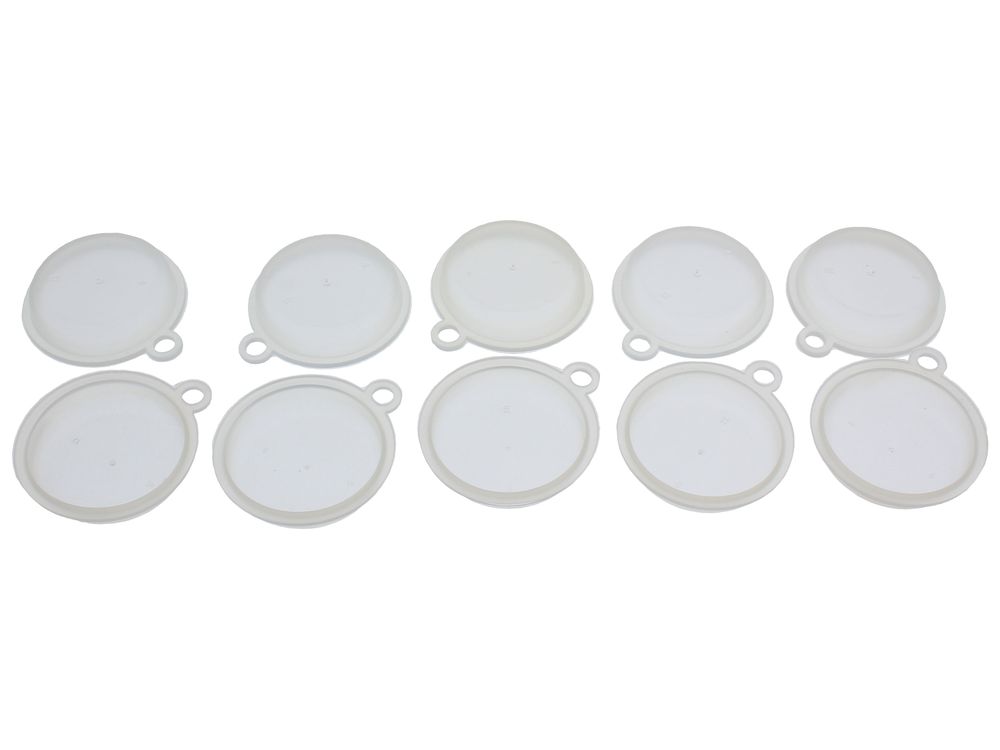

Worcester Bosch Diaphragm Pack of 10 87005030500
Diaphragm pack of 10 for the diverter valve assembly in Worcester Bosch gas boilers, manufacturer part number 87005030500.
At a glance
- Also known as 1011735
£12.73
£10.61 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The diaphragm is a flexible rubber component used in the diverter valve assembly of Worcester Bosch gas boilers. It responds to pressure changes within the valve to move the diverter spindle between heating and hot water modes. This item is supplied by Worcester Bosch as a pack of 10 under part number 87005030500.
Signs this part needs replacing
- Hot water demand does not switch the boiler from heating to hot water mode
- Heating circuit warms when only hot water is drawn
- Radiators heat up during a hot water draw-off
- Poor or inconsistent domestic hot water temperature
- Visible splitting, hardening or perishing of the diaphragm on inspection
Before you order
- Confirm your appliance model against the fitment list above
- Check the existing diaphragm and diverter valve assembly for wear before ordering
- Confirm the part number 87005030500 matches the component being replaced
- Consider how many diaphragms are required for the job, as this item is supplied in a pack of 10
Compliance
| GC number | E49-920 |
|---|---|
| Barcode / EAN | 4010009394686 |
| Alternative numbers | 1011735 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BOSCH W1359KV1B31S0595 | — | — | — | |
| WORCESTER BOSCH W135KV1B31S0595 | — | — | — | |
| WORCESTER BOSCH W135KV1P31S0595T1 | — | — | — | |
| WORCESTER BOSCH W2751KV1B31S0595 | — | — | — | |
| WORCESTER BOSCH W2751KV1P31S0595 | — | — | — | |
| WORCESTER BOSCH W3501KV1B31S0595 | — | — | — | |
| WORCESTER BOSCH W3501KV1P31S0595 | — | — | — | |
| WORCESTER BOSCH W4001KV1B31S0595 | — | — | — | |
| WORCESTER BOSCH W4001KV1P31S0595 | — | — | — | |
| WORCESTER BRITISH GAS GREENSTAR CC1-FSN-GB NG 29KW COMBI | 47-108-05 | 47-108-05 | — | — |
Showing 10 of 33 compatible appliances.
