Halstead

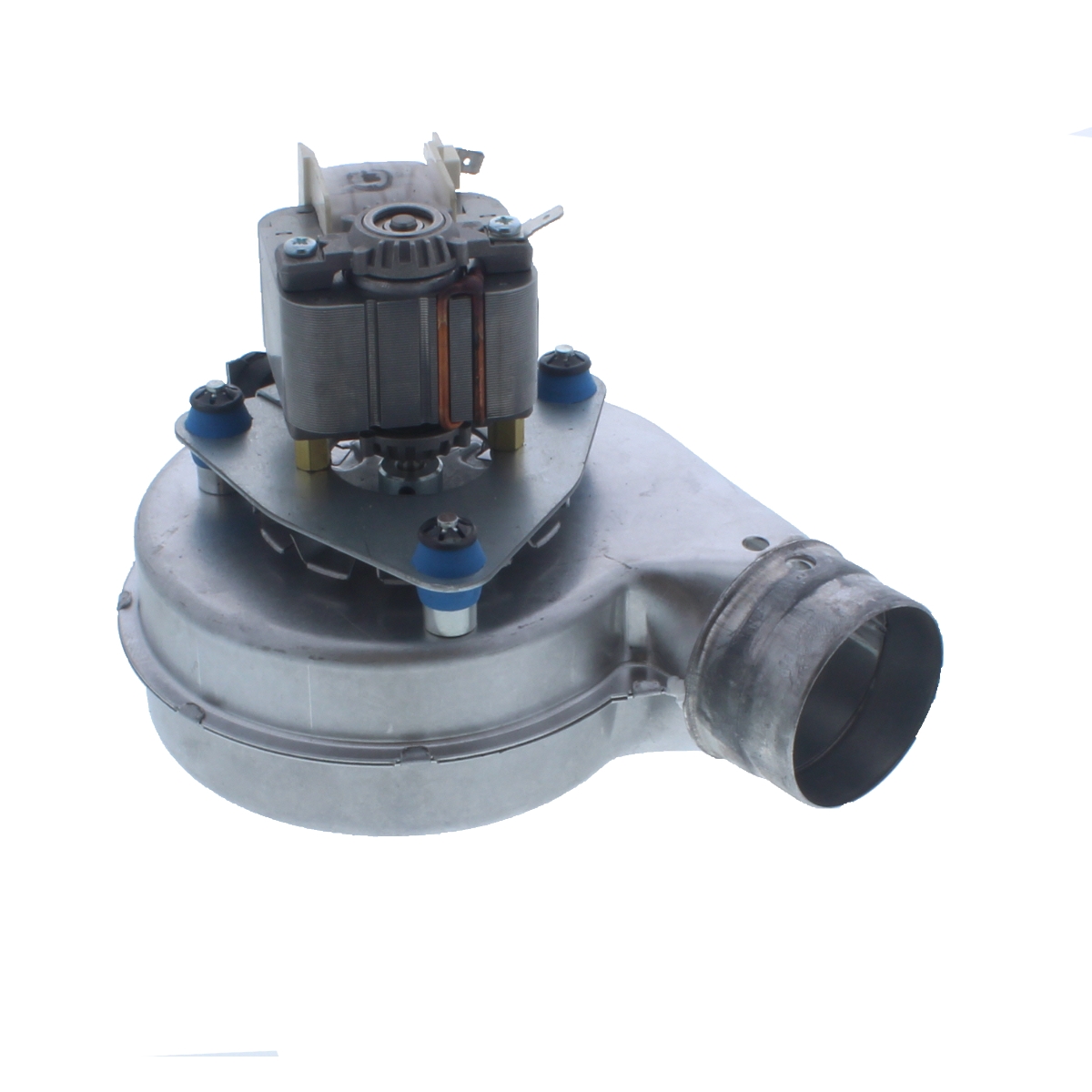

Halstead Fan Assembly Sifan 240V 50Hz 862002
At a glance
- Part type: fan assembly
- Also known as 1293890
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£682.92
£569.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Halstead 862002 is a Sifan fan assembly rated at 240V 50Hz, used as the combustion fan on a small group of Halstead and Sime gas boilers. It draws fresh air into the combustion chamber so the gas can burn correctly, then clears the residual flue products once combustion is complete. The boiler's safety controls monitor the fan, so a unit that stops running or runs erratically will normally stop the appliance from firing.
Signs this part needs replacing
- Boiler locks out or fails to ignite, with the fan proving sequence not completing
- Grinding, scraping or whining noise from the fan area on start-up
- Fan runs intermittently, slows down or stops part-way through a cycle
- Repeated lockouts that clear after a reset and then return
- Visible damage, stiffness or play when the fan impeller is turned by hand
Before you order
- Confirm the appliance model and GC number against the compatibility list, as the same boiler family can use more than one fan variant.
- Check the existing fan label and the alternative number 1293890 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan assembly |
|---|
Performance
| Voltage | 240 V |
|---|
Compliance
| Manufacturer part number (MPN) | 862002 |
|---|---|
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1293890 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD SIME HALSTEAD TRIO 30/90 | 47-283-01 | 47-283-01 | — | — |
| HALSTEAD TRIO 30/90 COMBI | 47-283-01 | 47-283-01 | — | — |
| HALSTEAD WICKES 30/90 COMBI | 47-283-02 | 47-283-02 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
