Ariston

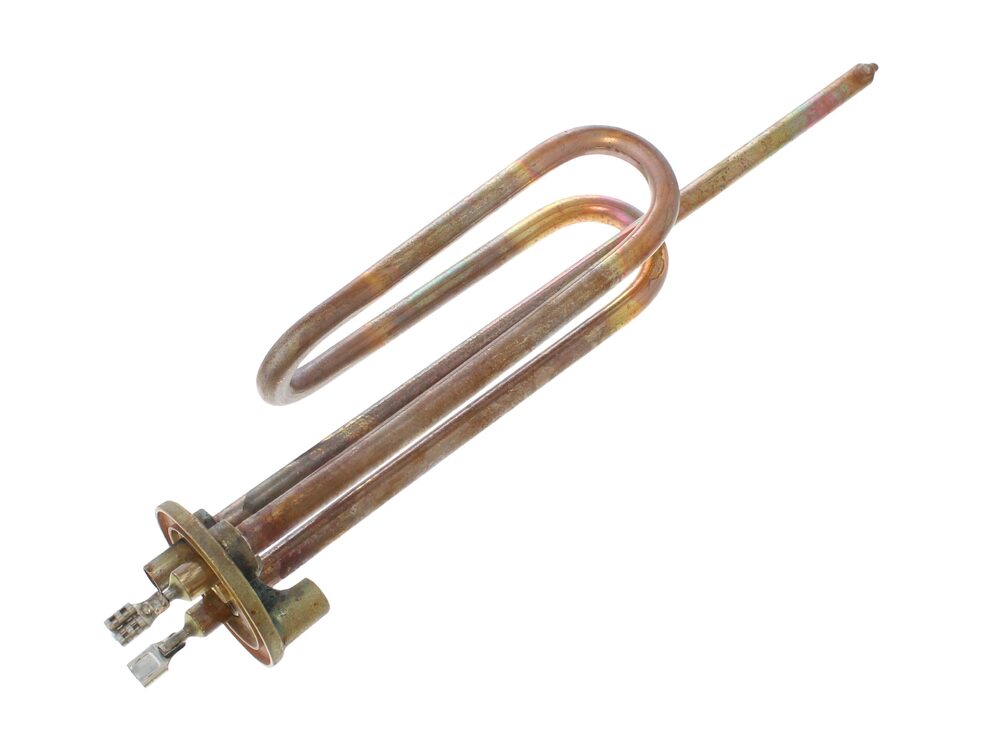

Ariston Element 1500W 230V 816616
Ariston 1500W 230V heating element, part number 816616, for use in compatible Ariston appliances from November 1997.
At a glance
- Also known as 1575514
£24.23
£20.19 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 816616 is a 1500W heating element rated at 230V, manufactured by Ariston for use in its water heating appliances. It provides the electrical heating source within the appliance, transferring heat to the stored water. This element is specified for units produced from November 1997 onwards.
Signs this part needs replacing
- The appliance fails to heat water despite the power supply and controls being functional.
- The element trips the circuit breaker or RCD when the appliance is energised.
- Continuity or resistance testing shows an open circuit or a reading outside the expected range for a 1500W 230V element.
- Visible scaling, corrosion, blistering or a split in the element sheath.
- Water weeping from around the element gasket or mounting flange.
Before you order
- Confirm the appliance model and edition against the fit list above.
- Check the rating plate to verify the appliance requires a 1500W 230V element.
- Inspect the element mounting and gasket arrangement on the existing part before removal.
- Isolate the electrical supply and drain the appliance before any work begins.
Compliance
| Barcode / EAN | 5411692162733 |
|---|---|
| Alternative numbers | 1575514 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON SE 10R 100 EDITION 1 (APR 2007) | — | — | — | |
| ARISTON SE 5R 100 EDITION 1 (APR 2007) | — | — | — | |
| ARISTON SEN 100 EDITION 1 (APR 2007) | — | — | — | |
| ARISTON ST 10R 100 DX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON ST 10R 100 SX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON ST 5R 100 DX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON ST 5R 100 SX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON STN 100 DX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON STN 100 SX EDITION 1 (APR 2007) | — | — | — | |
| ARISTON VID 100 EDITION 4 (MAY 2007) | — | — | — |
Showing 10 of 12 compatible appliances.
