Ariston
Ariston Heating Element 3000W 230V 810830

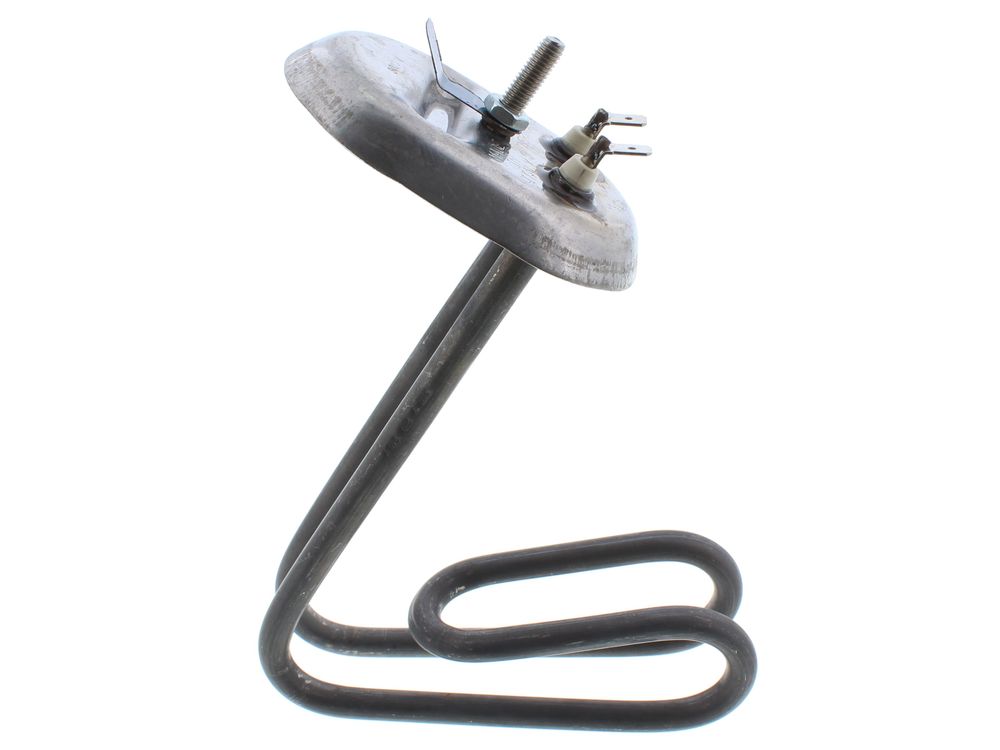

Ariston 3000W 230V heating element, part 810830, for Europrisma EP 10 and EP 15 unvented water heaters.
At a glance
- Part type: Heating element
- Appliance family: Europrisma EP 10 / EP 15 unvented cylinders
- Also known as 1575482
£32.50
£27.08 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a 3000W immersion-style heating element rated at 230V, manufactured by Ariston for its Europrisma range of unvented hot water cylinders. The element sits inside the cylinder and heats the stored water to the temperature set on the appliance's thermostat. It is the part that fails when a cylinder stops producing hot water or trips the supply.
Signs this part needs replacing
- No hot water from the cylinder even though the unit is powered and the thermostat is calling for heat
- The element trips the circuit breaker or RCD when the cylinder is switched on
- Continuity test across the element terminals reads open circuit
- Visible blistering, corrosion or a split in the element sheath once removed
- Water weeping from the element boss or gasket area
Before you order
- Confirm the model and edition number on the cylinder data plate matches one of the Europrisma units listed above
- Check the old element's part number against 810830, 810834 or 1575482 before ordering
- Inspect the element gasket and sealing washer on removal and replace if hardened or perished
- Isolate the electrical supply and drain the cylinder before starting work
Mechanical
| Part type | Heating element |
|---|
Performance
| Voltage | 230 V |
|---|
Compliance
| Manufacturer part number (MPN) | 810830 |
|---|---|
| Barcode / EAN | 5411692233037 |
| Commodity code | 8516 80 80 00 |
| GPC classification | Central Heating Replacement Parts/Accessories |
| Alternative numbers | 810834, 1575482 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON EP 10 OR 3KW EDITION 9 (OCT 2009) | — | — | — | |
| ARISTON EP 10 UR 3KW EDITION 9 (OCT 2009) | — | — | — | |
| ARISTON EP 15 OR 3KW EDITION 9 (OCT 2009) | — | — | — | |
| ARISTON EP 15 UR 3KW EDITION 9 (OCT 2009) | — | — | — |
