Glow-worm
Glow-worm Heat Exchanger Door Seal GLOWWORM801635

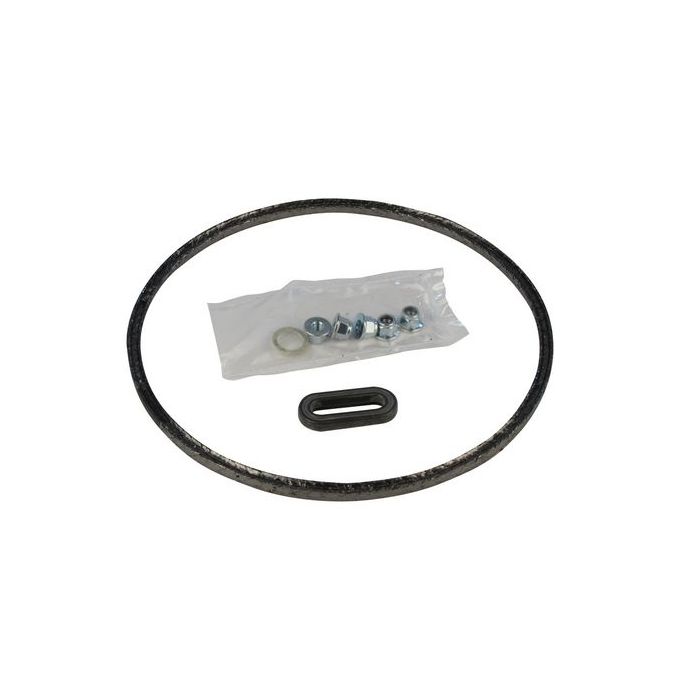

Glow-worm 801635 heat exchanger door seal for the combustion chamber and heat exchanger section of Glow-worm boilers.
At a glance
- Part type: Heat exchanger door seal / combustion chamber seal
- Also known as GLOWWORM801635
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£41.16
£34.30 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 801635 is a door seal for the heat exchanger section of a Glow-worm boiler. It sits at the combustion chamber door, where it closes the joint between the door and the heat exchanger body, keeping combustion products inside the flue path and stopping air from being drawn in at the joint.
Glow-worm boilers can be built with more than one type of heat exchanger, so the seal must be matched to the unit actually fitted to the appliance. This seal is listed for the heat exchanger section and is also referred to as a combustion chamber seal or service seal.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the seal material at the heat exchanger door
- Soot staining or heat discolouration around the door joint, indicating combustion products escaping
- A flue gas or combustion smell near the appliance casing
- Water weeping or condensation tracking from the heat exchanger door area
- Seal damage found during a service or combustion analysis when the door is opened
Before you order
- Check the boiler model and GC number against the compatibility list, as more than one heat exchanger type may be used across the range
- Confirm the part number 801635 matches the seal removed from the appliance
- Inspect the door and its fixings while the seal is off, and replace any other seals disturbed during the job
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat exchanger door seal |
|---|
Compliance
| Manufacturer part number (MPN) | 801635 |
|---|---|
| GC number | E85-008 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | GLOWWORM801635, 1333061, N9209 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BETACOM 2 24 | 47-019-16 | 47-019-16 | — | — |
| GLOWWORM BETACOM 2 28 | 47-019-17 | 47-019-17 | — | — |
| GLOWWORM BETACOM 24 A | 47-019-13 | 47-019-13 | — | — |
| GLOWWORM BETACOM 28 A | 47-019-14 | 47-019-14 | — | — |
| GLOWWORM BRITISH GAS BG330 | 41-047-75 | 41-047-75 | — | — |
| GLOWWORM EASICOM 24 | 47-019-18 | 47-019-18 | — | — |
| GLOWWORM EASICOM 28 | 47-019-19 | 47-019-19 | — | — |
| GLOWWORM ENERGY 35 STORE | — | — | — | |
| GLOWWORM ENERGY 35 STORE | 47-019-37 | 47-019-37 | — | — |
| GLOWWORM GLOWWORM BETACOM 2 24 | — | — | — |
Showing 10 of 61 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — BETACOM 2 24 (GC 47-019-16)
manualmanualGLOWWORM appliance manual — BETACOM 2 28 (GC 47-019-17)
manualmanualGLOWWORM appliance manual — BETACOM 24 A (GC 47-019-13), BETACOM 28 A (GC 47-019-14)
manualmanualGLOWWORM appliance manual — BRITISH GAS BG330 (GC 41-047-75)
manualmanualGLOWWORM appliance manual — EASICOM 24 (GC 47-019-18)
manualmanualGLOWWORM appliance manual — EASICOM 28 (GC 47-019-19)
manualmanualGLOWWORM appliance manual — ENERGY 35 STORE (GC 47-019-37)
manualmanualGLOWWORM appliance manual — GW 12HXi (GC 41-047-73)
manualmanualGLOWWORM appliance manual — GW 15HXi (GC 41-047-74)
manualmanualGLOWWORM appliance manual — GW 18HXi (GC 41-047-63)
manualmanualGLOWWORM appliance manual — GW 18SXi (GC 41-047-72)
manualmanualGLOWWORM appliance manual — GW 24CXi (GC 47-047-23)
manualmanualGLOWWORM appliance manual — GW 24HXi (GC 41-047-69)
manualmanualGLOWWORM appliance manual — GW 30CXi (GC 47-047-24)
manualmanualGLOWWORM appliance manual — GW 30HXi (GC 41-047-64)
manualmanualGLOWWORM appliance manual — GW 30SXi (GC 41-047-62)
manualmanualGLOWWORM appliance manual — GW 38CXi (GC 47-047-27)
manualmanualGLOWWORM appliance manual — GW 38HXi (GC 41-047-71)
manualmanualGLOWWORM appliance manual — ULTIMATE 30C (GC 47-044-48), ULTIMATE 35C (GC 47-044-49)
manualmanualGLOWWORM appliance manual — ULTRACOM 12HXi (GC 41-019-01)
manualmanualGLOWWORM appliance manual — ULTRACOM 15HXi (GC 41-019-02)
manualmanualGLOWWORM appliance manual — ULTRACOM 18HXi (GC 41-019-03)
manualmanualGLOWWORM appliance manual — ULTRACOM 18SXi (GC 41-019-07)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 12SXi (GC 41-019-12)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 18SXi (GC 41-019-13)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 24CXi (GC 47-019-10)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30CXi (GC 47-019-11)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30SXi (GC 41-019-14)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 35CXi (GC 47-019-12)
manualmanualGLOWWORM appliance manual — ULTRACOM 24CX (GC 47-019-06)
