Glow-worm

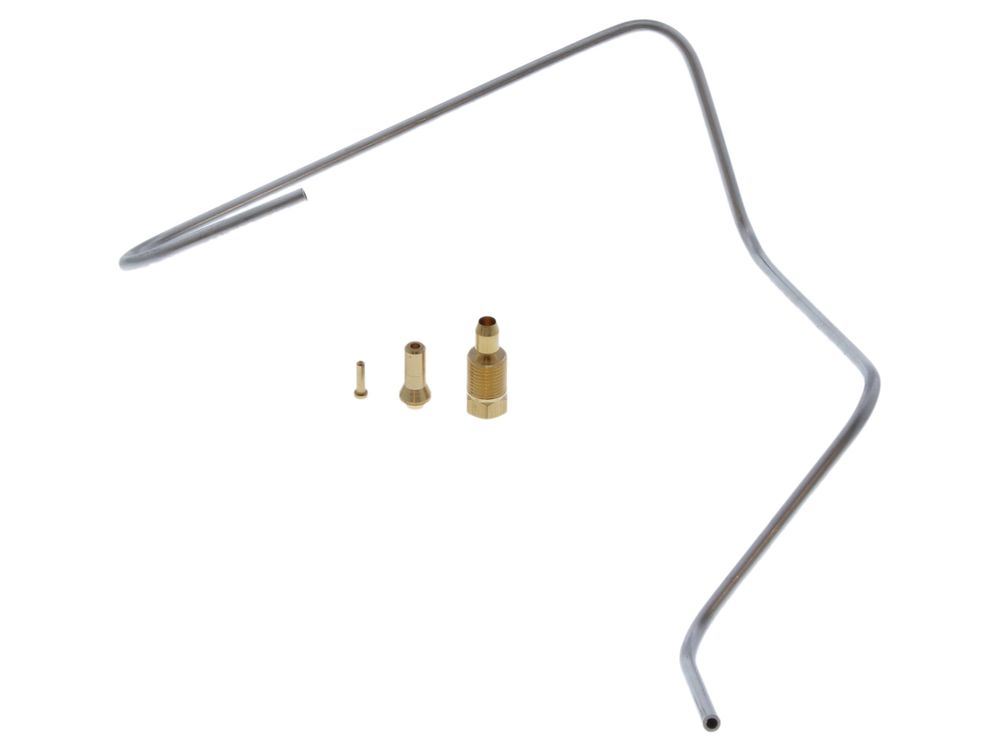

Glow-worm Pilot Pipe & Nuts 800441
Pilot pipe with nuts for Glow-worm Ultimate 30FF to 80FF later model gas boilers.
At a glance
- Also known as 1332847
- Work on gas-carrying components must be carried out by a competent Gas Safe registered engineer
£34.69
£28.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The pilot pipe with nuts is a Glow-worm gas-carrying component that feeds the pilot burner assembly on later models of the Ultimate FF boiler range. It supplies the pilot injector so the burner can be lit and the flame supervision device proved before main gas is released. The pipe is supplied with its retaining nuts for connection at both ends.
Signs this part needs replacing
- Pilot flame fails to light or will not stay lit after ignition
- Visible kinking, crushing or corrosion on the pilot pipe
- Gas smell or a detectable leak at the pilot pipe unions
- Soot or discolouration around the pilot assembly indicating a disturbed gas supply
- Nuts seized, cross-threaded or damaged at the pilot pipe connections
Before you order
- Confirm the boiler is a later model Ultimate FF, as this pipe is listed for later models only
- Check the model and GC number on the boiler data badge against the fit list
- Inspect the existing pilot pipe routing and union sizes before removal
- Work on gas-carrying components must be carried out by a competent Gas Safe registered engineer
Compliance
| GC number | 278-022 |
|---|---|
| Barcode / EAN | 5037985027680 |
| Alternative numbers | 1332847 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM ULTIMATE 30FF | 41-319-56 | 41-319-56 | — | — |
| GLOWWORM ULTIMATE 40FF | 41-319-57 | 41-319-57 | — | — |
| GLOWWORM ULTIMATE 50FF | 41-319-58 | 41-319-58 | — | — |
| GLOWWORM ULTIMATE 60FF | 41-319-59 | 41-319-59 | — | — |
| GLOWWORM ULTIMATE 70FF | 41-319-86 | 41-319-86 | — | — |
| GLOWWORM ULTIMATE 80FF | 41-319-60 | 41-319-60 | — | — |
