Viessmann PCB VBC113-C11.XX

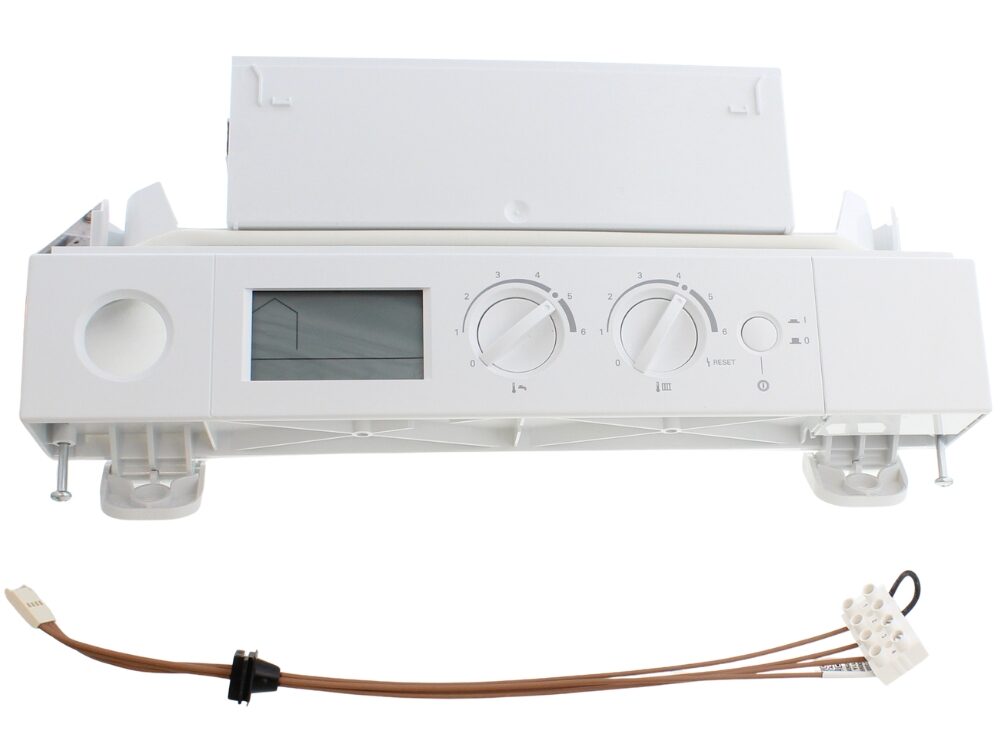

Printed circuit board VBC113-C11.XX for Viessmann Vitodens 100-W B1HA system and B1KA combi ERP boilers.
At a glance
- Part type: printed circuit board (PCB)
- Also known as 2321464
£404.35
£336.96 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The VBC113-C11.XX is a printed circuit board (PCB) manufactured by Viessmann for the Vitodens 100-W ERP boiler family. It is the control board used across the B1HA system and B1KA combi variants, handling the boiler's electronic control and operating sequence. This part is identified by Viessmann part reference VBC113-C11.XX and supplier SKU 7842194.
Signs this part needs replacing
- The boiler fails to respond to demand, with no ignition sequence or pump activity
- Repeated lockouts or fault codes that clear only temporarily after a reset
- Display and controls dead, intermittent or showing erratic readings
- Fan, pump or gas valve not being driven despite a call for heat
- Visible damage, scorching or moisture marking on the board itself
Before you order
- Confirm the boiler model and variant, B1HA or B1KA, from the data badge
- Check the appliance serial number against the fitment list for this board
- Read the existing board's part reference to confirm it matches VBC113-C11.XX
- Isolate the electrical supply and follow the manufacturer's instructions before removal and fitting
Compliance
| Alternative numbers | 2321464 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 100-W B1HA 19 KW SYSTEM ERP SERIAL No. 7543420 | 41-819-36 | 41-819-36 | — | — |
| VIESSMANN VITODENS 100-W B1HA 26 KW SYSTEM ERP SERIAL No. 7543421 | 41-819-37 | 41-819-37 | — | — |
| VIESSMANN VITODENS 100-W B1HA 30 KW SYSTEM ERP SERIAL No. 7543423 | 41-819-38 | 41-819-38 | — | — |
| VIESSMANN VITODENS 100-W B1HA 35 KW SYSTEM ERP SERIAL No. 7543425 | 41-819-39 | 41-819-39 | — | — |
| VIESSMANN VITODENS 100-W B1KA 26 KW COMBI ERP SERIAL No. 7543422 | 47-819-33 | 47-819-33 | — | — |
| VIESSMANN VITODENS 100-W B1KA 30 KW COMBI ERP SERIAL No. 7543424 | 47-819-34 | 47-819-34 | — | — |
| VIESSMANN VITODENS 100-W B1KA 35 KW COMBI ERP SERIAL No. 7543426 | 47-819-35 | 47-819-35 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
