Viessmann Display PCB Vitodens 050 7842163

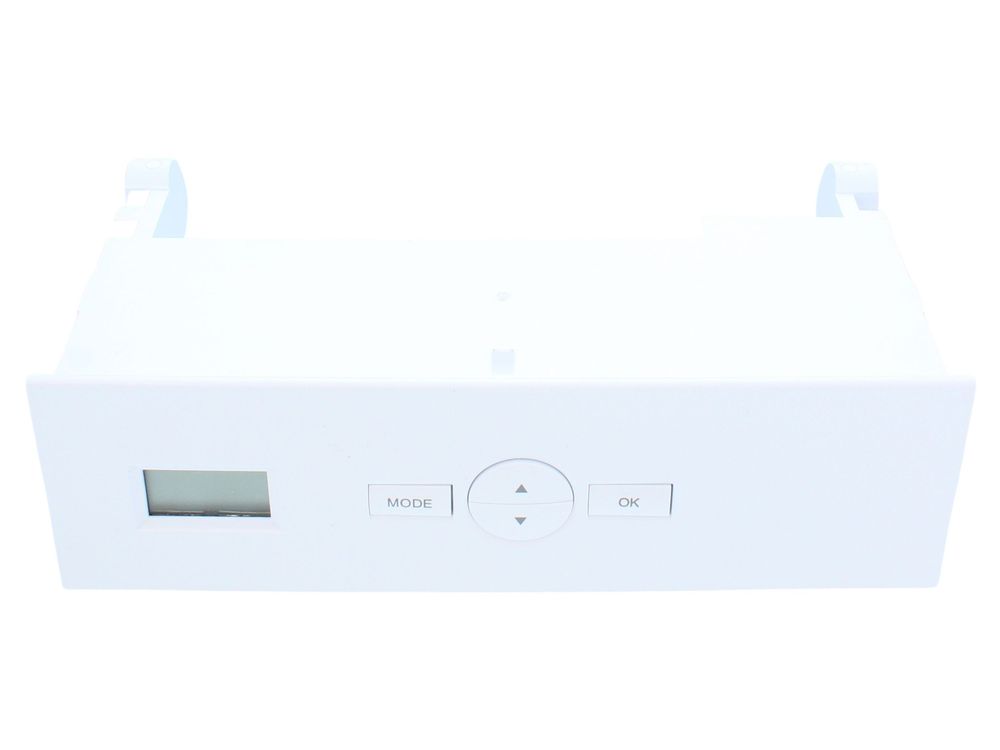

Display PCB for Viessmann Vitodens 050-W combi boilers, part number 7842163.
At a glance
- Appliance family: Vitodens 050-W combi boilers
- Also known as 2321632
£127.45
£106.21 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The display PCB is the control board that carries the display and user interface for Viessmann Vitodens 050-W combi boilers. It is supplied by Viessmann under part number 7842163 and forms part of the appliance's electronic control assembly. The board handles the display output and the button inputs used to operate and read the boiler.
Signs this part needs replacing
- The boiler display is blank, dark or illegible while the appliance still runs
- Display segments or icons flicker, drop out or show incomplete characters
- Buttons on the board do not respond when pressed
- The boiler will not accept or hold settings entered at the control panel
- Fault codes appear at the display with no corresponding fault in the appliance
Before you order
- Confirm the boiler model and serial number against the fitment list above, as BPJC and BPJD variants are covered separately
- Check the existing board for the part number 7842163 to confirm the correct assembly is being replaced
- Verify the supply and connections to the board before condemning it, as a display fault can originate from wiring or the low voltage supply
- Isolate the appliance electrically before removing or refitting the board
Compliance
| Alternative numbers | 2321632 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VIESSMANN VITODENS 050-W BPJC 29 KW COMBI SERIAL No. 7537906 | 47-819-31 | 47-819-31 | — | — |
| VIESSMANN VITODENS 050-W BPJC 35 KW COMBI SERIAL No. 7537947 | 47-819-32 | 47-819-32 | — | — |
| VIESSMANN VITODENS 050-W BPJD 29KW COMBI SERIAL No. 7202938 | 47-819-38 | 47-819-38 | — | — |
| VIESSMANN VITODENS 050-W BPJD 35 KW COMBI SERIAL No. 7202939 | 47-819-39 | 47-819-39 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
